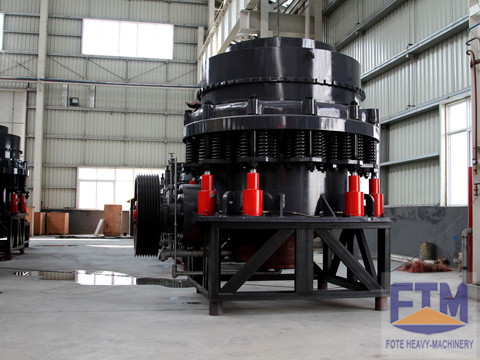

Professional Hydraulic Rock Cone Crusher

FOB Price:	19,000.00 - 210,000.00 USD/Set
Supply Ability:	100 Set/Sets per Month
Shipping:	Within 0-25 working days after placing the order.Ocean freight partners: APL, COSCO, OOCL, CSCL, MSC
Payment Terms:	L/C, D/A, D/P, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	Standard containers, bare main machine, motors and small parts are packed in wooden cases.

Quick Details

Condition: New
Application: stone,ore ,etc.
Motor Type: AC Motor
Power(W): 160-400 kw
Capacity(t/h): 80-725 m3/h
Brand Name: Henan Fote
Model Number: PYGD/PYGB series
Dimension(L*W*H): 2007*2225*1950-3405*3480*3196 mm
Weight: 17000-38800 kg
Certification: ISO,CE,BV
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
Name: Professional Hydraulic Rock Cone Crusher
Feeding size: 60-285 mm
Material: Casting steel
Adaptability: Strong
Abrasive Resistance: Good
Structure: Reasonable
Factory: 50,000 square meters closed workshops
Main crusher: jaw crusher, cone crusher, hammer crusher, impact crusher, mobile crusher, sand maker
Technical service: The whole using life
Market: Africa, Europe, Asia,etc

Specifications

Professional Hydraulic Rock Cone Crusher Overview:

1.Professional hydraulic rock cone crusher is the world's advanced level cone crusher developed based on the latest technology introduced from Germany, which not only improves productivity and efficiency, but expands the scope of application.

2.The cone crusher has an unmatched level of crushing performance in general crushing, fine crushing and superfine crushing of various materials from limestone to basalt, from stone production to a variety of ores.

3.It is the latest generation of cone crusher which can replace spring cone crusher and update general hydraulic cone crusher in today's mining industry, and it is ideal crushing equipment for large stone plant and mining crushing.

4.Material: river gravel, granite, basalt, iron ore, limestone, quartz, diabase, gold ore, copper ore, and etc

Professional Hydraulic Rock Cone Crusher Advantages:

1.High efficiency.
Both ends of the hydraulic cone crusher have spindle support, so it's able to withstand greater crushing force and greater stroke. If added with special crushing cavity adapting lamination principle, the machine has higher efficiency.

2.Large production capacity.
The machine has a perfect design combination of crushing stroke, crushing speed and crushing cavity shape, which makes the machine have 35%~60% higher output than the old spring cone crusher in the condition of same fixed cone diameter.

3.High quality of finished products.
The hydraulic cone crusher uses special crushing cavity, as well as the principle of laminated design, so that the cube proportions of finished product is significantly increased, with less needle-shaped stones and more even particle levels.

Professional Hydraulic Rock Cone Crusher Technical Data:

Specifications	Model	Cavity	Large end diameter of crushing cone (mm)	Adjusting range of discharge opening (mm)	Feed opening size of the open edge when recommending the min.discharge opening (mm)	Max.feeding size (mm)	Processing capacity (m3/h)	Main motor power (kw)	Weight (kg)	Dimensions (L×W×H) (mm)
Φ900	PYGD-09071	Fine type	950	8-25	70	60	80-220	160	17000	2007×2225×1950
	PYGD-0909	Medium type		10-25	90	76	90-220
	PYGD-0921	Coarse type		22-38	210	178	155-250
Φ1100	PYGD-1110	Fine type	1160	8-25	70	60	120-220	220	18500	2520×2620×2400
	PYGD-1112	Medium type		12-25	96	82	120-220
	PYGB-1124	Coarse type		26-45	235	200	230-445
Φ1400	PYGD-1411	Fine type	1400	8-25	80	68	115-370	315	29700	3106×3170×2945
	PYGD-1414	Coarse type		10-25	106	90	140-370
	PYGB-1433	Medium type		26-50	330	115	300-620
Φ1500	PYGD-1509	Fine type	1500	8-25	88	75	135-455	400	38800	3405×3480×3196
	PYGD-1512	Coarse type		10-25	124	105	175-455
	PYGB-1534	Medium type		32-50	335	285	405-725

Successful Cases:
1.100-120tph Copper Ore Crushing Plant in Chile

100-120tph Copper Ore Crushing Plant in Chile mainly consist of vibrating feeder GZD960X3800, jaw crusher PE500X750, cone crusher, vibrating screen and several belt conveyors.
2.450-550TPH Hard Stone Crushing Plant

This crushing plant is used to crush hard stone (like: Granite, basalt, river stone, etc.) from <1000mm down to about 0-5, 5-10, 10-20, 20-40mm (or other sizes according to your need) as aggregate for construction.

Delivery

We have developed long and good relationship with many shipping agents. Ocean freight partners are: APL, COSCO, OOCL, CSCL, MSC, etc. and train shipping is also available. The perfect shipping way and best service with lowest price are always provided for customers.

Our Service Philosophy

1.Pre-sale services: enthusiasm
Provide you the prophase plan, process flow design and manufacturer equipment according to your special demand.

2.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.

3.After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
