Home >Products Catalog > Stone Crusher > PF1315 horizontal rock impact crusher

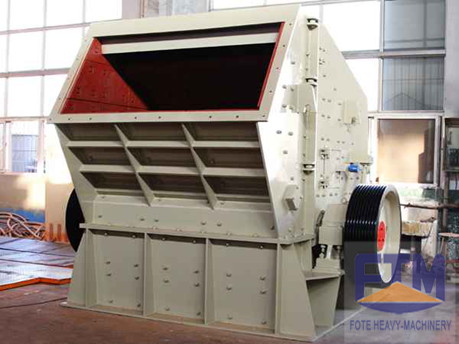

PF1315 horizontal rock impact crusher

FOB Price:	1,400.00 - 143,350.00 USD/Set
Supply Ability:	100 Set/Sets per Month
Shipping:	Within 0-20 working days after placing the order.Ocean freight partners: APL, COSCO, OOCL, CSCL, MSC
Payment Terms:	L/C, D/A, D/P, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	Standard containers, bare main machine, motors and small parts are packed in wooden cases.

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 Year
Certification: ISO,CE,BV
Weight: 12-83.21t
Dimension(L*W*H): 2330*1660*2300-4400*3866*4009 mm
Model Number: PF
Brand Name: Henan Fote
Capacity(t/h): 30-800 t/h
Power(W): 37-710 kw
Motor Type: AC Motor
Application: stone,mineral ore ,etc.
Type: Impact Crusher
Condition: New
Name: PF1315 horizontal rock impact crusher
Adaptability: Strong
Abrasive Resistance: Good
Structure: Reasonable
Maintenance: Convenient
Running cost: Low
Installation: Under technical guidance
Market: Africa,Europe,Asia,etc
Running State: Stable
Energy: Saving

Specifications

PF1315 horizontal rock impact crusheroverview:

1.PF1315 horizontal rock impact crusheradopts adoption advanced manufacturing processes andselection of high-end raw materials.

2.Heavy type rotor design and strict testing method to guarantee high qualityrotor.

3.Adoption of the Integral cast steel structureon bearing seat makes itmatches well with the crushing frame and increases the radial strength of it,while the divided design does not has this advantage.

4.The unique fixing device for hammers,make it more reliable.

5.The hydraulic adjusting device makes the maintenance easier and less.

6.Self-equipped open-top devicecan quickly complete the replacement ofwearing parts such as the hammer.

7.Selection of the bearing with larger size and higher load.

PF1315 horizontal rock impact crusher specification:

1.Model:PF-1007,PF-1010,PF-1210,PF-1214,PF-1315,PF-1520,PF-182
2.Specifications:Φ1000*700-Φ1800*2000 mm
3.Feed opening:400*730-1260*2040 mm
4.Feeding size:300-700 mm
5.Capacity:30-800 t/h
6.Power:37-710 kw
7.Weight:12-83.21t
8.Dimensions(L*W*H):2330*1660*2300-4400*3866*4009 mm

PF1315 horizontal rock impact crusher features:

1.Used for the material whose strength is no more than 350 Mpa.

2.Widely used in the first and secondary crushing process.

3.Applied in building material, hydrelectricity, artificial stone and sand,high way, etc.

4.Economical and durable to apply,low power consumption and high efficiency

5.It is simple to adjust the space between the impact plate and the platehammer, so material size is easy to control and with good particle shape.

PF1315 horizontal rock impact crushertechnical data:

Model	Specifications (mm)	Feed opening (mm)	Max.feeding side length (mm)	Capacity (t/h)	Power (kw)	Total weight (t)	Dimensions ( L×W×H) (mm)
PF-1007	Φ1000×700	400×730	300	30-70	37-45	12	2330×1660×2300
PF-1010	Φ1000×1050	400×1080	350	50-90	45-55	15	2370×1700×2390
PF-1210	Φ1250×1050	400×1080	350	70-130	110	17.7	2680×2160×2800
PF-1214	Φ1250×1400	400×1430	350	100-180	132	22.4	2650×2460×2800
PF-1315	Φ1320×1500	860×1520	500	130-250	200	27	3180×2720×2620
PF-1520	Φ1500×2000	830×2040	700	300-550	315-400	50.6	3959×3564×3330
PF-182	Φ1800×2000	1260×2040	700	600-800	630-710	83.21	4400×3866×4009

Successful Cases:

1.Main Equipment for 100 t/h Crushing Production Line:
a.380*95 vibrating feeder
b.600*900 jaw crusher
c.PF1214 impact crusher
d.4YK1854 vibrating screen.
2.120t/d sand making line in Qingdao
Raw materials: pebble, rock, limestone, etc.
a.GZD1500*6000 vibrating feeder
b.PE-1200×1500 jaw crusher
c.3 sets of PFW1318 impact crushers
d.2 sets of 5X1145 sand makers
e.4YK2460 circular vibrating screen

Delivery

We have developed long and good relationship with many shipping agents. Ocean freight partners are:APL, COSCO, OOCL, CSCL, MSC, etc.and train shipping is also available. The perfect shipping way and best service with lowest price are always provided for customers.

Our Service Philosophy

1.Pre-sale services: enthusiasm
Provide you the prophase plan, process flow design and manufacturer equipment according to your special demand.
2.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3.After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
