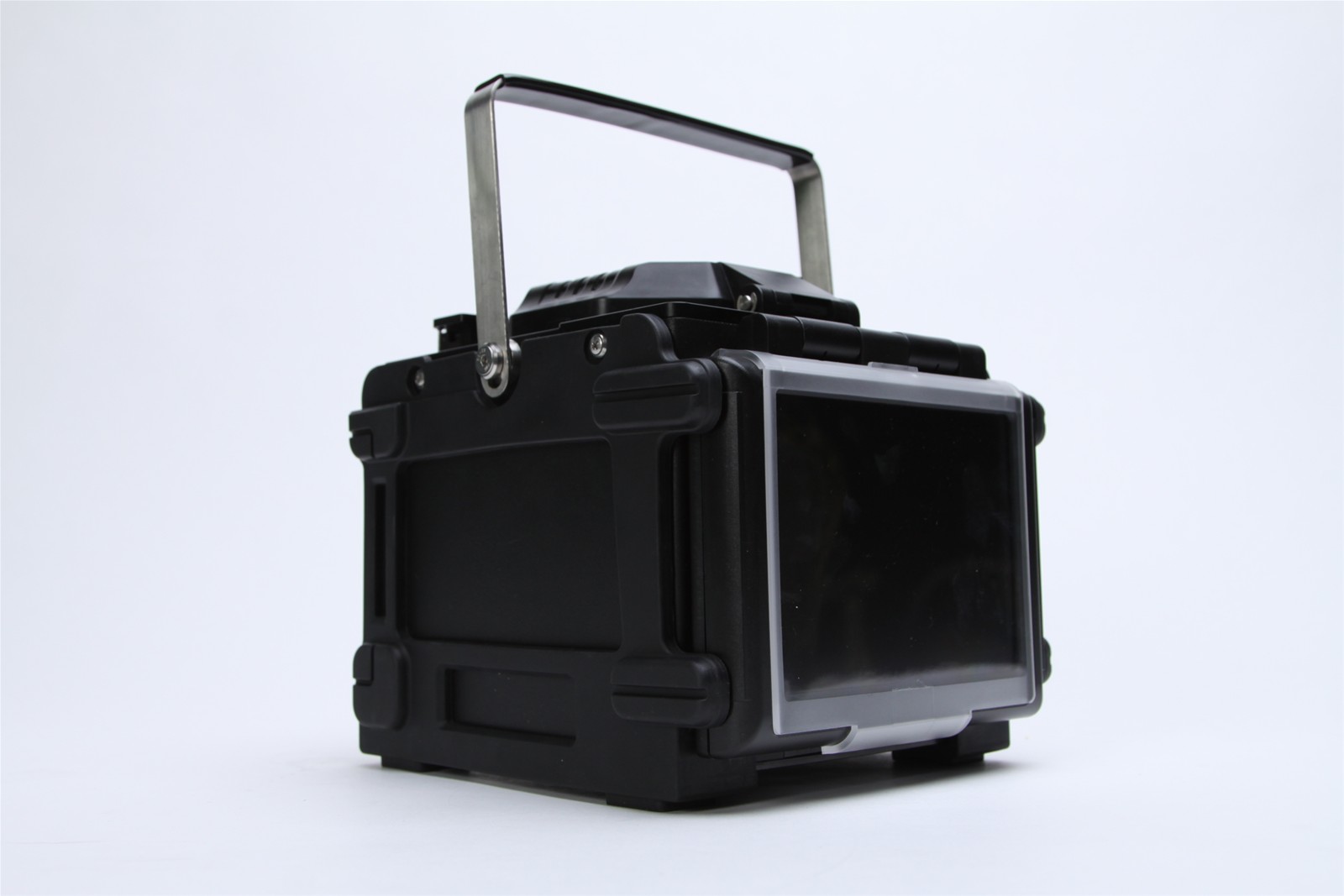

multi-function web t1 fiber fusion splicer
| FOB Price: | 2,600.00 - 2,800.00 USD/Set |
|---|---|
| Supply Ability: | 1,000 Set/Sets per Month |
| Shipping: | 3 days after receive the payment |
| Payment Terms: | T/T, Western Union, MoneyGram |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Tianjin in China |
| Packaging Details: | Package Size:53cm x 31cm x 34cm |
Quick Details
- Model Number: T1
- Brand Name: WEB
- WEB T1 FUSION SPLICER: USD2600$/SET
Specifications
Features:
PAS image digital processing system,core to core alignment;
Apply to bare fibers, skin line cables, jumper cables, etc.;
Various display group, max magnification up to 300;
7 seconds typical splicing and 30 seconds heating time;
Metro style GUI, easy operation;
High definition 5.7' colorful LCD;
Rubber armor protects machine from shock or impact;
Up to 4000 groups of records can be stored;
Arc calibrated by temperature and pressure parameters;
High capacity and pluggable battery, long work time;
USB port for software upgraded
Specification:
|
Applicable fiber |
SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655) |
|
Cladding diameter |
80 -150μm |
|
Coating diameter |
160 - 900μm |
|
Typical splice loss |
SM 0.02dB, MM 0.01dB, DS 0.04Db, NZDS 0.04dB |
|
Return loss |
<60dB |
|
Cleaved length |
10～16mm ( Diameter of coating < 250μm ) ; 16mm ( Diameter of coating 250～1000μm ) |
|
Splicing program |
40 groups |
|
Operate mode |
Manual, Automatic |
|
Auto-Heat |
Available |
|
Typical splicing time |
7 seconds |
|
Heating time |
30 seconds for 60mm, 40mm shrinkable sleeve |
|
Magnification |
300 times for single display, 150 times for double display |
|
Photoelectric system |
Two high sensitive cameras, 5.7' 640×480 colorful LCD |
|
Splicing data record |
Storing up to 4000 groups of records |
|
Loss evaluation |
Available |
|
Tension test |
1.8~2.2N |
|
Interface |
GUI menu interface, easy operation |
|
Battery capacity |
8800mAh, 250 times fusion and heating, pluggable, real-time power monitor |
|
Power supply |
Adaptor, input: AC 100-240V ( 50/60HZ ) , output: DC 11~13.5V |
|
Electric pole lifetime |
More than 4000 times fusion, pole can be replaced conveniently |
|
External port |
USB2.0 port, used to derive splicing record data, software upgrade |
|
Operate environment |
Altitude: 0～5000m; Relative humidity: 0~98%; Temperature: -20℃～+55℃; Wind speed: max 15m/s |
|
Volume/Weight |
160mm(L)×150mm(W)×145mm(H) / 3.4kg (including battery) |
