HATAC Machinery Co., Ltd.
China Manufacturer with main products: Slitting Machine, Paper Cutter, Printing Machine, Sheeting Machine, Paper Core Machine, Paper Bag Machine |

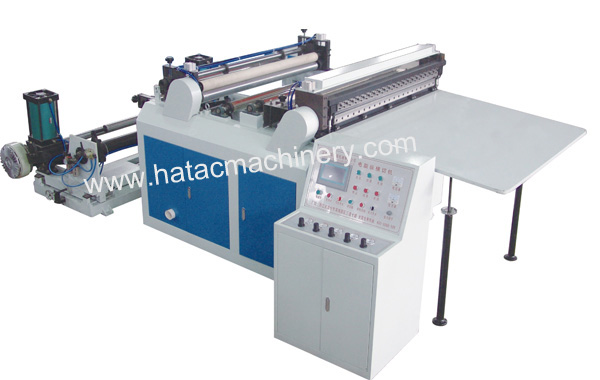

Economic Paper Slitting and Sheeting Machine
| FOB Price: | 10,000.00 - 30,000.00 USD/Set |
|---|---|
| Supply Ability: | 20 Set/Sets per Month |
| Shipping: | by sea |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | plastic film and wooden case |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: one year
- Certification: CE
- Weight: 2500KG
- Dimension(L*W*H): 3500*2500*2200mm
- Power(W): 6kw
- Voltage: 380V,3-Phase,60Hz
- Model Number: HTHQ-1100
- Brand Name: HATAC
- Computerized: Yes
- Type: Paper Cutting Machine
- Condition: New
- Application: Paper,Film,Label
- Tension Control: Automatic
- Control System: PLC & Touch Panel HMI
- Loading System: Automatic
Specifications
Automatic Slitting and Sheeting Machine applications for slitting and sheeting jumbo roll into sheets,such as regular paper,bond paper,kraft paper,plastic film,adhesive sticker,etc.
Working Parameter:
|
Max. Web Width |
11000mm |
|
Max. Unwind Dia. |
1500mm |
|
Sheeting Length |
200-1200mm |
|
Max. Cutting Speed |
100times/min |
|
Voltage |
380V,3-Phase,60Hz |
Specification:
1. With PLC Control System and Touch Panel HMI to preset working parameters.
2. With Pneumatic Loading Sytsem to load heavy jumbo roll onto unwind stand.
3. With EPC web guide for material edge tracking,especially for printing material.
4. With Automatic Tension Control System for unwind tension control.
5. With disc type blade as slitting blade and crosscutting blade as sheeting blade.
6. With meter counter and emergency stop.
7. All transmission roller have been dynamic/static balance treatment.
8. Electricity appliance is strict in accordance with CE certification.
Our Service:
1. Achivement:
1) Recommend proper device for our customers.
2) Provide the best solution for our customers' project.
3) Follow up after-sale service.
2. Packing machine of paper and plastic is our areas of expertise.
1) Sturdy construction and mechanics,long-life span.
2) Accessories are included.
3) Machines which have supplied as our customers'request are with high quality for many years.
3. Machinery transportation and shipment
1) We are cooperated with experienced companies at all majoy Ports in China.
2) We are flexible in shipping arrangements and accommodate a wide range of shipping company and packing request.
4. After-sale Service
1) Operation is starts,if there is any defect and area in need of service,we will give you troubleshoot within 24 hours.If they are still not solved,to dispatch technician will be as your request,round trip tickets,food,hotel and salary will be paid by our customers.
2) If assembly is broken(not by human being factor) within one yar guarantee time,new assembly will be expressed for free.After one year,you can buy parts from us or at your local market,we will assist you to get proper ones.
About Us:
HATAC Machinery Co.,Ltd was established in 2010 and specializes in packaging machinery of paper and plastic,such as automatic slitting machine,A4 paper cutting and packing machine,sheeting machine,paper core making machine,paper core cutting machine,printing machine,envelope making machine,etc.
Our sales and technical support is available to help you in recommending proper machine and best solutions as your request.Your satisfaction is our ultimate goal.
