>Products Catalog > Single Girder Overhead Cranes > CHS Series single girder overhead mobile crane US $1500-15000 / Set ( FOB Price)

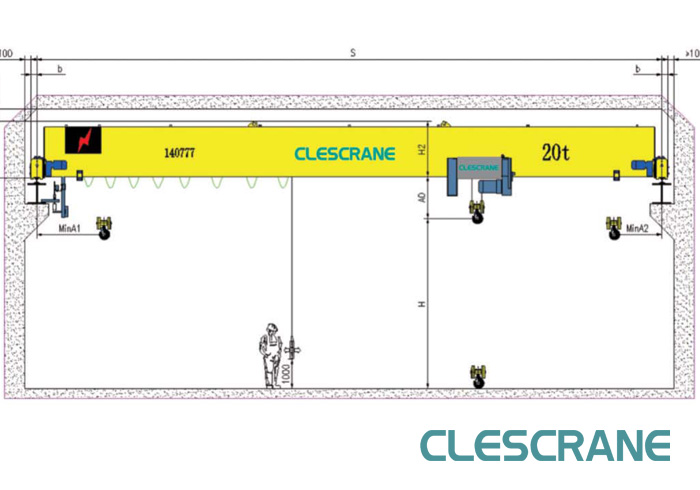

CHS Series single girder overhead mobile crane US $1500-15000 / Set ( FOB Price)
| Shipping: | Delivery Detail: 30 days |
|---|---|
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Feature: Bridge Crane
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 13 months
- Certification: CE ISO
- Model Number: CHS Series
- Brand Name: CLESCRANE
- Span: 7.5-35.5m
- Max. Lifting Height: 18m
- Max. Lifting Load: 20t
- Condition: New
Specifications
In General
European standard (DIN/FEM) optimized design, light dead weight, small wheel load, small volume
Max. lifting capacity: 20t
Flexible solution for all lifting needs
Excellent driving properties, frequency control of motor speed, smoothly moving
Mechanical Feature
Single welding box girder, beam deflection with DIN/FEM standard
Steel Material: Fe37 or Fe52 (Equal to Chinese standard Q235B and Q345B)
Whole length CNC cutting for complete web plate, to ensure the precision and smooth curve shape of the camber
Trolley rail is made of high strength hot rolled flat steel (16 Mn)
Automatic submerged arc welded main weld with NDT inspection
Shot-blasting Sa2.5 for complete girder after welding, to achieve stress release
Epoxy zinc-rich painting for one bottoms and two sides of 120μm thick, to achieve a long lifespan, beautiful appearance and good luster
The girder and end beam are connected together by Class 10.9 high strength bolts to ensure the structure strength and precision of the whole machine
Trolley and crane are driven by Three-in-One driving mechanism, variable frequency speed regulation, the hard tooth face, electromagnetic disc brake
Protection class: IP54, Insulation class: F, electrical sustained rate: 40% ED
The end beams are equipped with flat wheel or double rim wheels, anti-friction bearings, buffer blocks and derailment preventing end plate
Maintenance walkway is located on one side of the main girder, consisting of pattern plate, armrest (Height: 1050 mm), pillar and toe protection
