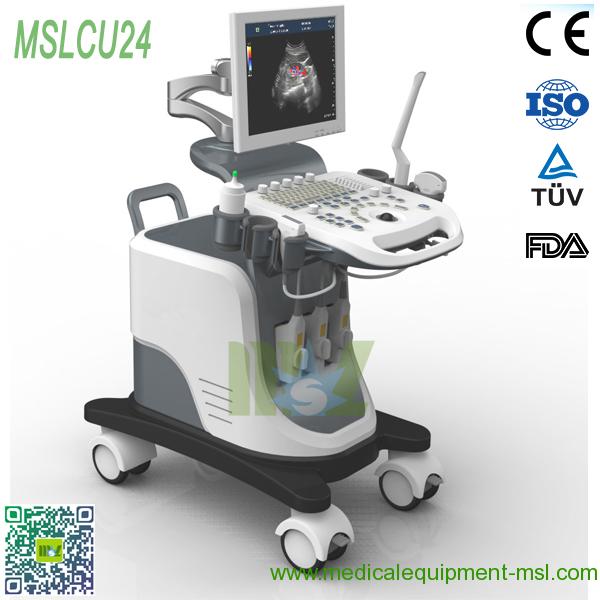

4D Baby Ultrasound pregnancy MSLCU24 for sale

FOB Price:	5,000.00 - 14,877.00 USD/Set
Supply Ability:	1,500 Set/Sets per Month
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Standard export package

Quick Details

Model Number: MSLCU24
Brand Name: MSL
Type: Doppler Ultrasound Equipment

Specifications

Could you contcct our sale manager.we will tell you the price,Please see our contact.
S-:cindyljc
T-:+8-6-1-3-8-2-6-4-4-8-6-3-7

MSL 4D Color Doppler Ultrasound Machine pregnacy MSLCU24 Operating environment

Operating ambient temperature: ＋5℃～＋40℃

Relative humidity: ≤80%

Atmospheric pressure: 700hPa—1060hPa

Power supply: AC220V±22V, 50Hz±1Hz

Plug seat shall have independent power supply.

Be far away from strong electric field, strong magnetic field equipment and high voltage equipment.

4D Baby Ultrasound pregnancy MSLCU24 Main Functions

Having a full digital beam forming technology

Scanning mode: Convex array, lumen, high-frequency linear array, phased array, 3D software(Optional accessories);

Dynamic range: 0~120dB adjustable;

Display mode: B, B/B, M, B/M, CFM, CMF/B, PDI, B/PW, total eight mode;

Application mode: abdomen, gynecology, obstetrics, superficial organ, urologist, heart and user defined model 1-4, total ten models;

Image mode: digital beam forming, tissue harmonic imaging;

Acoustic output: Mechanical index and thermal index real-time display;

Acoustic power: Step is adjustable, real-time display;

Gray scale: 256 scales;

Depth display: ≥250mm;

B/D dual-purpose: linear array: B/PWD; convex array: B/PWD;

Pseudo color processing: 16 kinds of pseudo color encoding can optional;

Gain adjusts: 8 segments TGC, B/M/D/C is independently adjustable; TGC curve can show and hide automatically;

Image magnification: picture in picture zoom in and zoom part function;

Image processing: Edge enhancement: Multilevel adjustable

Frame average: Multilevel adjustable

Line average: Multilevel adjustable

Focus Optimization: Multilevel adjustable

Gray Restrain: Multilevel adjustable

Gamma correction: Multilevel adjustable

Contrast: Adjustable

Brightness: Adjustable

Self-motion optimize function: Built-in multiple check type, according to different inspection organs, preset best image check condition, reduce the adjusting operation keys;

One-click optimization function: preset several parameters adjusting focus on a button, a key to realize image fast optimization;

Measurement and calculation:

B mode routine measurement:

Distance, circumference, area, volume, angle, ratio, and stenos rate.

M mode routine measurement: Heart rate, time, distance, speed, ratio, etc..

Gynecology measurement: Uterus, cervix, endometrial, ovary, follicular.

Obstetrics measurement:

EGA, ETD, fetal weight estimation, AFI index, OB report (including OB tables).

Cardiology measurement: LV measurement.

Urology measurement:

Prostate volume, displacement volume, bladder capacity, and residual urine output.

PW measurements: Time, speed, Heart Rate, RI, PI, etc.

Other measurement: Slice volume measurement, hip joint angle measurement.

Image storage: Image storage, video storage, cine loop, disk storage capacity≥160G;

Patient data: Medical record management, report inquiry and printing, image video output( HDD , DVD-RW, USB), built-in ultrasound workstation;

Reporting system: automatic report generation system, and can be full screen characters in both Chinese and English editor;

Output interface: SR323, USB, DICOM interface;

4D Baby Ultrasound pregnancy MSLCU24 Main Technical Indexes

1.The performance requirements of gray-scale imaging mode

The color ultrasonic at the gray-scale imaging performance mode should comply with the provisions of the table 1.

Table 1 At the Gray-scale imaging mode the performance of the probe

indexes	probe type and nominal frequency
indexes	2.0≤f＜4.0	2.0≤f＜5.0	5.0≤f＜8.0	5.0≤f＜10.0
a) probe type and model	(type TP16A)	Convex array (type TC60A)	Cavity (type TC10A)	Linear array (type TL40A)
b) nominal frequency (MHz)	3.0	3.5	6.5	7.5
c) Scan depth(mm)	≥140	≥160	≥40	≥50
d) Lateral resolution (mm)	≤3(depth≤80) ≤4(80＜depth≤130)	≤3(depth≤80) ≤4(80＜depth≤130)	≤2(depth≤30)	≤2(depth≤40)
e) Axial resolution (mm)	≤2(depth≤80)	≤2(depth≤80) ≤3(80＜depth≤130)	≤1(depth≤40)	≤1(depth≤50)
f) Blind area (mm)	≤7	≤5	≤4	≤3
g) Transverse geometry precision (%)	≤20	≤15	≤10	≤10
h) Longitudinal geometric location accuracy (%)	≤10	≤10	≤5	≤5
i) Slice thickness (mm)	≤5	≤5	≤5	≤5
j) and (%)	≤±20	≤±20	≤±20	≤±20
k) M mode time display error (%)	≤±10	≤±10	≤±10	≤±10

2.The performance requirements of color Doppler imaging mode

a). The color ultrasonic at the color Doppler imaging mode should comply with the provisions of the

table 2.2;

b). Color blood flow image should be essentially coincident with the gray-scale image of pipe's;

c). Blood flow direction should be able to correctly identify, no aliasing phenomenon;

Table 2 at the color blood flow imaging mode the performance of the probe

Doppler model		Convex array	Cavity	Linear array
Investigation depth at Color blood flow model	≥90mm	≥100mm	≥40mm	≥50mm
Investigation depth at Doppler spectrum model	≥90mm	≥100mm	≥40mm	≥50mm
Blood flow speed reading error	≤±15%

3 The performance requirements of Doppler spectrum mode

a). The color ultrasonic at the color Doppler spectrum mode should comply with the provisions of the;

b). Blood flow speed reading error should comply with the provisions of the table2.3;

c). Pulse wave Doppler mode sampling area cursor position should be accurate;

Table 3 at the color blood flow imaging mode the performance of the probe

Doppler model		Convex array	Cavity	Linear array
Investigation depth at Color blood flow model	≥90mm	≥100mm	≥40mm	≥50mm
Investigation depth at Doppler spectrum model	≥90mm	≥100mm	≥40mm	≥50mm
Blood flow speed reading error	≤±15%

Displayer: 15 inch LCD color display

Running hours: ≥8h;

Input power: ≤320V;

Host weight: about 75 kg;

Host appearance size: 1140 ×690× 1070(length × width × height) (mm³)

3D & 4D ultrasound machine options probe

3.5MHz/R60 convex-array probe

3.5MHz/R20 micro-convex-array probe

7.5MHz/L40 linear-array probe

6.5MHz/R13 transvaginal probe

DICOM3.0

Biopsy guide for convex probe

Video printer

Laser printer

Ergonomic mobile trolley

Air captain suitcase

Drag and pack backbag
