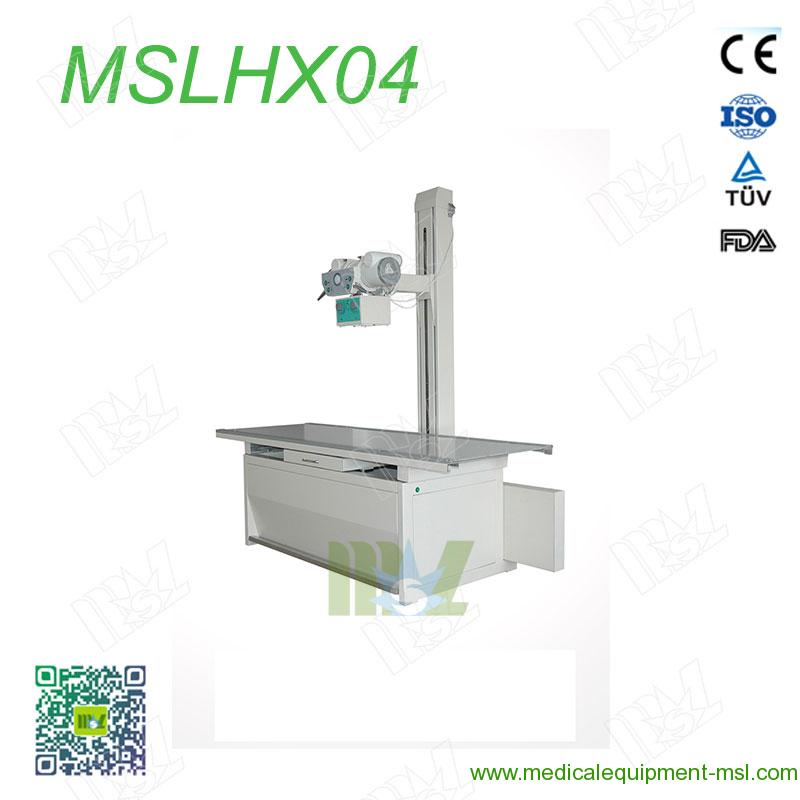

High frequency 200ma X-ray machine for medical diagnosis MSLHX04

FOB Price:	2,000.00 - 7,597.00 USD/Set
Supply Ability:	1,500 Set/Sets per Month
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Standard export package

Quick Details

Model Number: MSLHX04
Brand Name: MSL
Properties: Medical X-ray Equipments & Accessories

Specifications

High frequency 200ma X-ray machine for medical diagnosis MSLHX04

MSL 200ma X-ray machine for medical diagnosis MSLHX04 charactenstics

1.The x-ray tube stand is uertical which incorporates white the table that′s convenient for body risht side or profile to radiography and diagnosis.

2.Controled by computer programs. The KV mode, mA mode, mAs mode and other mode can be set as priority for body parts exposune.

3.Concise uperation with its hish intelligence.Failure checked out dutomatically with error code displayed for you.

4.With hish freguency can suit well to rural uire netting even power supply waving widely there.Its stable and hish quality cntput x-ray keeps hish image contrast and resohction.

5.With DR interface as its outstanding charactenstic. That it′s convenient for customers to disitahze DR upsrade.

6.Three core technologies.Hish frequenty inverter technology.pulse with modulation technology. Micro-computer CPU closed-cycle control technolosy.

Cheap 200ma X-ray machine for medical diagnosis MSLHX04 main technical parameters

1.working condition

a.Ambient temperature:+100C~+400C

b.Relative humidity:30%~75%

c.Atmospheric pressure:70Kpa~106Kpa

2.Transportation and storage conditions:

a.Ambient temperature:-200C~+700C

b.Relative humidity:10%~1-100%(including condensation)

c.Atmospheric pressure:50Kpa~106Kpa

3.Main technical parameters

(1)Function:radiography

(2)X-ray machine maximum output power

Intermittent mode 100Kv,200ma,20kw

(3)adjusting range of x-ray machine tube current and tube voltage

Range of x- ray tube current:16ma~200ma

Rang of x-ray tube voltage:40kv~125kv

(4)exposure time :0.0025s~6.4s

(5)Nominal working frequency≧30khz

(6)Power supply:three-phase five wires 380v+-38v

4.main configuration

(1)high frequency high voltage generator (including control console)

(2)X-ray tube

a.focus:small focus:1.0mm large focus:2.0mm

b.anode speed:2800r/min

c.anode thermal capacity:140khu

(3)collimator power supply:ac24v

(4)Radiography bed

a.single phase 220v+-22v,50Hz+-1Hz

b.x-ray components supporting frame

Braking mode:elecrtomagnetic brake,braking force≧98N,

button operation filter:N40,r10,110,stationary type,size:14" *17"

c.bed size:L2000mm*w760mm*H685mm

Vertical moving range:≧825mm

Horizontal moving range:≧250mm
