Jiangsu Wuyun Transmission Machinery Co., Ltd.
China Manufacturer with main products: Conveyor Roller, Belt Conveyor, Pulley Drum, Idler Roller, Machinery, Carrying Idler Roller, Return Roller Idler, Conveyor Parts |
Home
>Products Catalog > conveyor idler roller > V-Shaped comb idler roller for belt conveyor in machinery

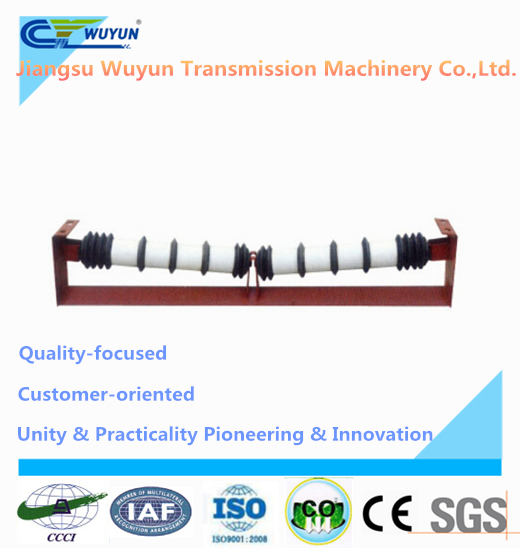

V-Shaped comb idler roller for belt conveyor in machinery
| FOB Price: | 10.00 - 200.00 USD/Piece |
|---|---|
| Supply Ability: | 5,000 Piece/Pieces per Month |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | wooden case |
Quick Details
- Brand Name: wuyun
- Dia: 108-194mm
- Length: 315-1250mm
- Bearing: Hrb,Lyc,etc
- Certificate: ISO,SGS,etc
- Executive Standard: GB, ISO, etc
- Testing: Waterproof, Dustproof, etc
- Urgent Order: Acceptable
- Color: According to The Requirements
Specifications
Our conveyor rollers have been exported to other countries all over the world in past years and we have professional engineers and all of them have rich experience in this field, we can design the goods independently
Conveyor Roller Components Details:
1) Material: Alloy/Carbon Steel
2) Tube: High-precision ERW, welded
3) Shaft: Cold drawn steel
4) Bearing housing: Cold pressing working
5) Seals: Labyrinth seal, Mylon
6) Painting: Ordinary painting, hot galvanized painting, electric static spraying painting, baked painting,
epoxy painting
7) Bearing: Deep groove ball bearing
Design Drawing & Installation Dimension:
(mm)
|
Belt width B |
Idler | E | A | H | H1 | H2 | P | Q | d | Drawing No. | |||
| D | L | Drawing No. | Bearing type | ||||||||||
| 800 | 108 | 465 | DTIIGS2105 | 4G204 | 1142 | 1090 | 100 | 100 | 338 | 145 | 90 | M12 | DTII03C2721 |
| 1000 | 133 | 600 | DTIIGS3207 | 4G205 | 1342 | 1290 | 110 | 384 | 150 | M16 | DTII04C2732 | ||
| 1200 | 700 | DTIIGS3208 | 1592 | 1540 | 120 | 414 | DTII05C2732 | ||||||
| 159 | DTIIGS4208 | 120 | 447 | DTII05C2742 | |||||||||
| DTIIGS4308 | 4G305 | DTII05C2743 | |||||||||||
| 1400 | 133 | 800 | DTIIGS3210 | 4G205 | 1800 | 1740 | 130 | 100 | 433 | 150 | 90 | M16 | DTII06C2732 |
| 159 | DTIIGS4310 | 4G305 | 120 | 466 | DTII06C2743 | ||||||||
| DTIIGS4410 | 4G306 | DTII06C2744 | |||||||||||
1. Are you a manufacturer or trade company?
We are both manufacturer and trade company.
2. How long have you been in this industry?
We have been in it since 2006 .
3. Do you accept sample order?
Of course, please contact us for details.
4. Can you do OEM?
Yes, we can.
5. How do you control the products quality?
Each product will be inspected in strict procedure before delivery.
6. How about your after-sales service?
We can offer technology support to slove all problems.
if quality problem, goods can be return or replaceable.
7. What is your payment items?
Usually 30% deposit in advance by TT, delivery agains balance. L/C is also OK!
8. What is your delivery time?
7~21 days upon receiving deposit.
9. What is the package?
Plastic box (inner), wooden case (outer).
10. Where is your factory?
Changzhou city,Jiangsu province, China.
