Shandong Jining Bafang Mining Machinery Co., Ltd.
China Manufacturer with main products: Mining Machinery, Pump Equipment, Scraper Device |
Rope capacity Mine Shaft Sinking Winch from China Coal
| FOB Price: | 3,500.00 - 5,000.00 USD/Set |
|---|---|
| Supply Ability: | 500 Set/Sets per Month |
| Shipping: | Qingdao |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | standard package |
Quick Details
- Dimensions: 2375*1970*1340mm
- Model Number: JZ
- Brand Name: bafang
- product name: Rope sinking winch
- type: JZ
- weight: 380kg
Specifications
Rope capacity Mine Shaft Sinking Winch from China Coal
Product Description

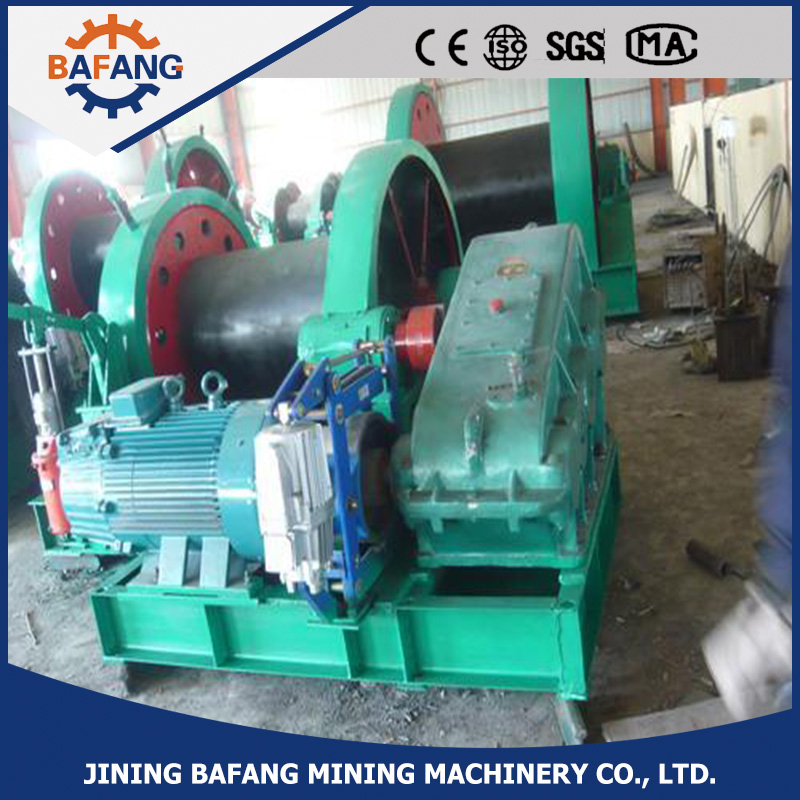

JZ series sinking winch with lifting capacity, high rope capacity, smooth rotation, etc.
It mainly used in coal mining, metal and non-metallic mineral pit shaft engineering in suspension stage, water pump, ram, compressed air cylinder, excavating equipment such as grouting pipe and the tension rope, also can be used for other underground and ground lifting heavy objects.
Technical parameter
|
Model |
JZ-5/400 |
JZ-10/600 |
JZ-16/800 |
JZ25/1000 |
|
Max tension |
50KN |
100KN |
160KN |
160KN |
|
Capacity |
400N |
600N |
800N |
1000N |
|
Speed |
6m/min |
6 m/min |
6 m/min |
6 m/min |
|
Diameter |
23mm |
31 mm |
40 mm |
40 mm |
|
Power |
11kw |
22 kw |
30 kw |
37 kw |
|
Voltage |
380v |
380 v |
380 v |
380 v |
|
Dimension (mm) |
2375*1970*1340 |
3037*2570*1770 |
3358*3200*2240 |
3508*3200*2240 |
|
Weight |
380kg |
380 kg |
380 kg |
380 kg |
