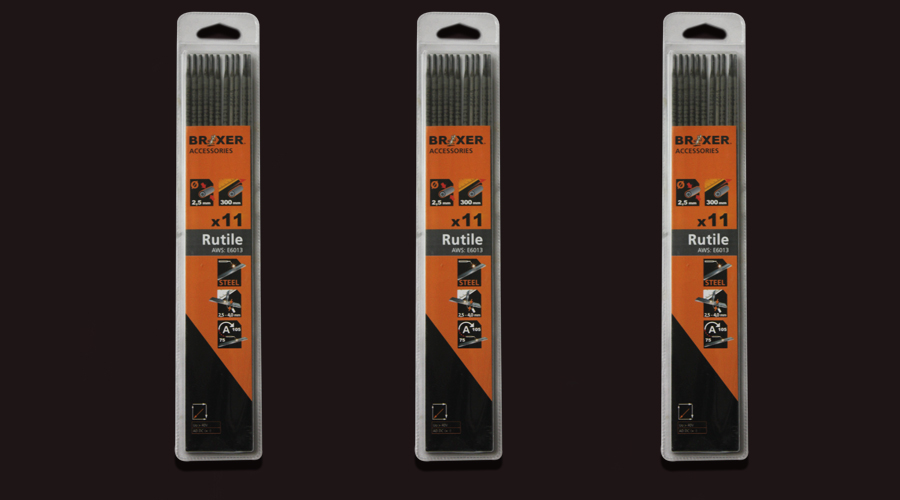

MILD STEEL ELECTRODE (RUTILE) AWS E6013

FOB Price:	575.00 - 630.00 USD/Ton
Supply Ability:	50 Ton per Day
Shipping:	Shipping
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

White Fused Alumina F240F360F400F600F800F1000F1...

Price:1999.00-2999.00 USD/Metric Ton

Min. Order:2 Metric Ton
Zinc Oxide 99.7% / 99%

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	5kg/inner box,20kg/master carton; blister packagings can be designed by customer

Quick Details

Application: This electrode is suitable for structural steel, plate, sheet, tubular
Diameter: 1.6mm-5.0mm
Operating Temperature: Normal
Welding Current: 30a-150a
Operating Current: 30a-150a
Length: 300mm-400mm
Material: steel
Model Number: AWS E6013
Brand Name: Brixer
OEM branding & different color,red/green/blue: OEM branding & different color,red/green/blue

Specifications

Mild Steel Welding Electrode AWS E6013
Key Facts
Re-striking
Tack-welding
Very easy to weld with
Beautiful bead apppearance

Description
A rutile coated electrode used for all general fabrication work where the best appearance is required, they are easy to weld with good bead appearance.

General purpose mild steel electrode designed for thin sheet metal or gague steel but with sufficent penetration for welding medium gague steel.

Excellent operating charcteristics when using small diameter electrodes at lower amperage and with lower open-circuit AC votage.

Used in all-positions including vertical downward and overhead. This electrode is one of the easiest to use bcause of its wide operating range and restrike characteristics.

Soft, steady and quiet arc, low spatter and a slag that seems to peel away. This electrode gives off verlittle smoke or fumes giving it superb opeator ppeal.

Commonly used on many mild, low alloy and medium carbon steel, including tack welds on thin sheet metal, automobiles, metal furniture, farm equipment, window frames, iron grills, fences, storage tanks and general construction.

Classification
AWS:E6013

Welding Positions
Flat, horizontal,vertical-up, vertical-down and overhead.

Markings & Identification
Printing:AWS E6013

Applications
This electrode is suitable for structural steel, plate, sheet, tubular sections or any general steel application. Ideal for used for container and storage vessels and for rolling stock costuction.


Typical All Weld Metal Anlysis
C-Carbon	Mn-Manganese	si-silicon
0.070	0.40	0.25


Typical All Weld Metal Mechanical
Yield Strength Ref (Mpa):	380
Tensile Rm (Mpa):	480
Elongation A (%):	29
Impact Strengths ISO-V	80J@+20. C 50J@0. C
