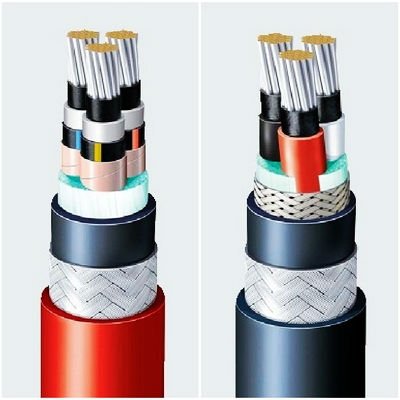

xlpe insulated low voltage underground power cable aluminum
| FOB Price: | 10.00 - 12.00 USD/Meter |
|---|---|
| Supply Ability: | 1,000,000 Meter per Month |
| Shipping: | Port Ningbo |
| Payment Terms: | L/C, D/A, D/P, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | in wooden drums, or according to your demands. |
Quick Details
- Insulation Material: XLPE
- Jacket: PVC
- Conductor Material: Aluminum
- Application: Underground
Specifications
eference standards
The product is manufactured according to the standards of CB5023 and Jb8734 or IEC ,BS ,DIN and ICEA upon request.
Application
The products are suitable for power installation fixed wiring or flexible connection for el-electrical appliances with rated voltage up to and including 450/750V respectively.
Operating Characteristics
Rated voltage Uo/U:450/750V\300/500Vand300/300V
Max. Permissible continuous operating temperature of the conductor:
227 IEC 07(BV-90)..........................90℃
227 IEC 08(RV-90)............................90℃
For other type.................................70℃
The ambient temperature under installation shall not bellow 10℃
The bending radius of cable :
D≤25mm..................................≥4D
D＞25mm..................................≧6D
(D-Diameter of the cable)
Type and Name
|
TYPE |
NAME |
Rated voltage |
No. Of core |
Nominal cross-sectional area of conductor mm2 |
STANDARDS |
|
60227 IEC 01(BV)/02(RV) |
Single-core non-sheathed cable with solid/flexible conductor for general purposes |
450/750 |
1 |
1.5~400/1.5~240 |
GB5023 IEC60227 |
|
60227 IEC 05(BV)/06(RV) |
Single-core non-sheathed cable with solid/flexible conductor for internal wiring for a conductor temperature of 70℃ |
300/500 |
1 |
0.5~1 |
|
|
60227 IEC 07(BV-90) /08(RV-90) |
Single-core non-sheathed cable with solid/flexible conductor for internal wiring for a conductor temperature of 90℃ |
300/500 |
1 |
0.5~2.5 |
|
|
60227 IEC 10(BVV) |
Light PVC sheathed cable |
300/500 |
2,3,4,5 |
1.5~35 |
|
|
60227 IEC 42(RVB) |
Flat non-sheathed flexible cord |
300/500 |
2 |
0.5~0.75 |
|
|
60227 IEC 51(RVV) |
Light PVC sheathed flexible cord |
300/500 |
2,2 |
0.5~0.75 |
|
|
60227 IEC 53(RVV) |
Ordinary PVC sheathed flexible cord |
300/500 |
2,3~24 |
0.75~6 |
|
|
60227 IEC74(RVVYP) |
Oil-proof PVC sheathed ,screened cable |
300/500 |
2~60 |
0.5~2.5 |
|
|
60227 IEC 75(RVVY) |
Oil-proof PVC sheathed ,non-screened flexible cable |
300/500 |
2~60 |
0.5~2.5 |
|
|
BV |
Copper conductor PVC insulated wire |
300/500 |
1 |
0.75~1 |
JB8734 |
|
BLV |
Aluminum conductor PVC insulated wire |
450/750 |
1 |
2.5~630 |
|
|
BVR |
Copper conductor PVC insulated flexible wire |
450/750 |
1 |
2.5~240 |
|
|
BVV |
Copper conductor PVC insulated and sheathed round cable |
300/500 |
1 |
0.75~10 |
|
|
BLVV |
Aluminum conductor PVC insulated and sheathed round cable |
300/500 |
1 |
2.5~10 |
|
|
BVVB |
Copper conductor PVC insulated and sheathed flat cable |
300/500 |
2,3 |
0.75~10 |
|
|
BLVVB |
Aluminum conductor PVC insulated and sheathed flat cable |
300/500 |
2,3 |
2.5~10 |
|
|
RVS |
Copper conductor PVC insulated twisted flexible cord for connection |
300/300 |
2 |
0.5~0.75 |
|
|
RVP |
Copper conductor PVC insulated flexible cord |
300/300 |
1,2 |
0.08~6 |
|
|
RVP-90 |
Copper conductor PVC insulated twisted flexible cord for a conductor temperature of 90° |
300/300 |
1,2 |
0.08~6 |
|
|
RVVP |
Copper conductor PVC insulated and sheathed screened flexible cord |
300/300 |
1~24 |
0.3~6 |
