Mingch Electrical Co., Ltd.
China Manufacturer with main products: Voltage Regulator, Voltage Stabilizer, UPS, Transformer, Line Conditioner, Voltage Regulator Power Supply |

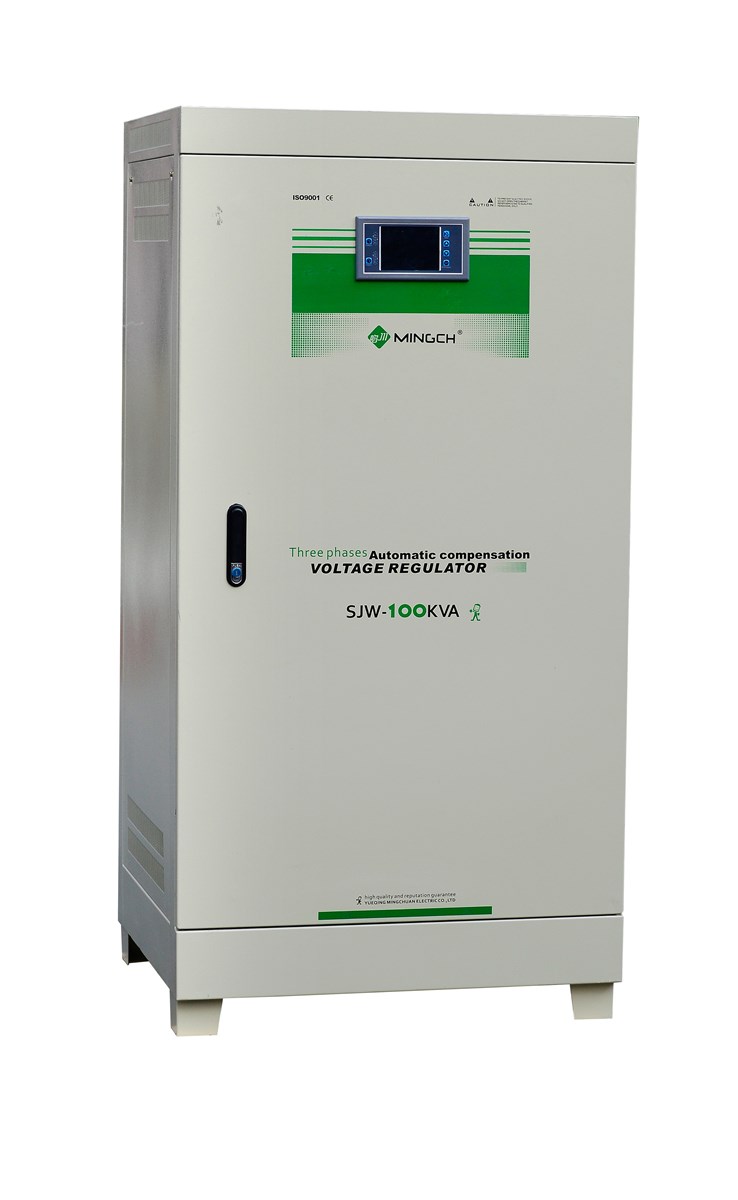

Djw/Sjw Series Microcomputer Non Contact AC Vcoltage Regulator
| FOB Price: | 2,000.00 - 3,000.00 USD/Carton |
|---|---|
| Supply Ability: | 5,000 Carton/Cartons per Year |
| Shipping: | it always takes about two weeks to product |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | carton box |
Quick Details
- Phase: single/three phases
- Usage: DJW/SJW
- Model Number: djw/sjw
- Brand Name: Mingch
- customed: yes
- warranty: two years
Specifications
DJW/SJW series single phase/three micro computer non contact compensated power voltage regulator is introducing international latest technique, it combines with advanced winding compensation method and non contact switch, microcomputer control of ac voltage regulator technique in a body, with high efficiency saving energy quick adjustment automatically three phases balance, no mechanical failure and wear of carbon brush, it designing with time delay, over voltage, undervoltage alarm protection, in the meanwhile, the ac voltage regulator breakthrough to solve both the system and devices in transient process of running on non contact switch effecting the damage of common mode current shock and over voltage, the strong instantaneous overload ability, thus greatly increase the reliability of the system operation.
Specification
| Input voltage | Single phase:176v-264v Three phases:304v-456v |
| Output voltage | single phase:220v Three phases:380v |
| Output deviance | ±2.5% |
| Frequency | 50~60Hz |
| Efficiency | >=95% |
| Response time | 0.2-0.5S |
| Ambient temperature | -10oC~+40oC |
| Insulation resistance | >=5MΩ |
| Overload | Double rated current,one min |
| Waveform distortion | Non-lack fidelity waveform |
| Protect | overvoltage overcurrent lack phases |
| Model | Rated Capacity | Max output current | Outline(L*W*H) |
| SJW-10K | 10KVA | 15A | 60*57*128cm |
| SJW-15K | 15KVA | 23A | 60*57*128cm |
| SJW-20K | 20KVA | 30A | 60*57*128cm |
| SJW-30K | 30KVA | 45A | 70*62*158cm |
| SJW-50K | 50KVA | 76A | 70*62*158cm |
| SJW-100K | 100KVA | 152A | 70*62*158cm |
| SJW-150K | 150KVA | 227A | 72*80*168cm |
| SJW-180K | 180KVA | 273A | 72*80*168cm |
| SJW-200K | 200KVA | 303A | 72*80*168cm |
| SJW-225K | 225KVA | 333A | 82*100*178cm |
| SJW-250K | 250KVA | 379A | 82*100*178cm |
| SJW-300K | 300KVA | 455A | 82*110*178cm |
About our Service
1)we can manufacture the products according to your requirements(OEM/ODM is available in our company).
2)we provide fast delivery(it usually takes about two weeks to finish the goods you need after deposit or L/C).
3)there is two years' guarantee period for you.
4)there is online service for you all the time(except our holiday)
About the packing
For the small products, we always packed them with carbons,for the large products, we can provide the wood of fumigation t pack.And, also ,we can pack them according to your special requirements.
FAQ
Q1: What is the Guarantee?
A1: Two years (for free) from the date of B/L. Besides, any of the spare parts can be supplied all the time, that is, during the guarantee period and after the guarantee period.
Q2: Can we put/show our own Logo on your products?
A2: Yes, no problem, however, the quantity should be a bit big.
Q3: For your products, can we take our Favourite Colours?
A3: Yes, no problem.
Q4: Is OEM/ODM available?
A4: Yes, it is! Our products can be Customized. We have 5 senior engineers in our R&D Dept., we design and produce all kinds of Automatic Voltage Regulators/Stabilizers according to our customers' specific requirements.
