New USB 3.0 Fiber Optic Extender for 1CH 5G usb3.0 signal over 1/2 SM/MM fiber to 250m

FOB Price: 90.00 - 220.00 USD/Pair
Supply Ability: 100,000 Pair/Pairs per Month
Shipping: 4~7 working days
Payment Terms: T/T
In Stock
  • ECVV Safebuy Services

    According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>

  • Safebuy Service Guarantee

    Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.


Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: 1pair of power adaptor,1 transmitter,1 receiver,1 users' manual

Quick Details

  • Wave length: 1310nm/1550nm
  • dimension: 104mmx104mmx28mm
  • Case: Aluminum
  • Color: Black
  • weight: 0.75kg

Specifications

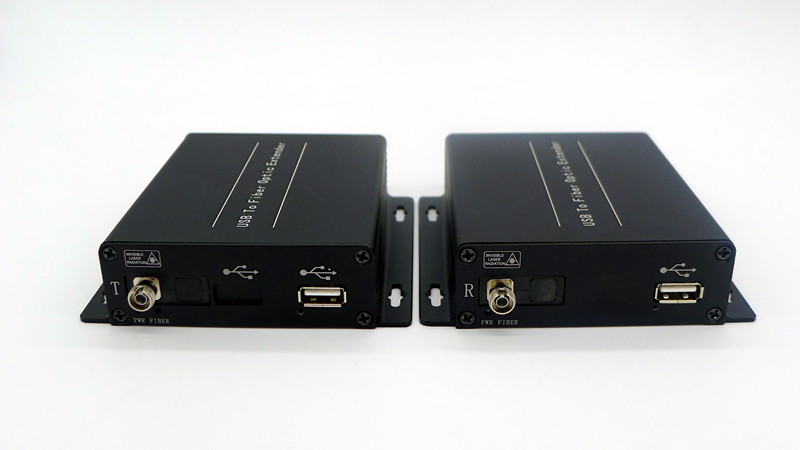

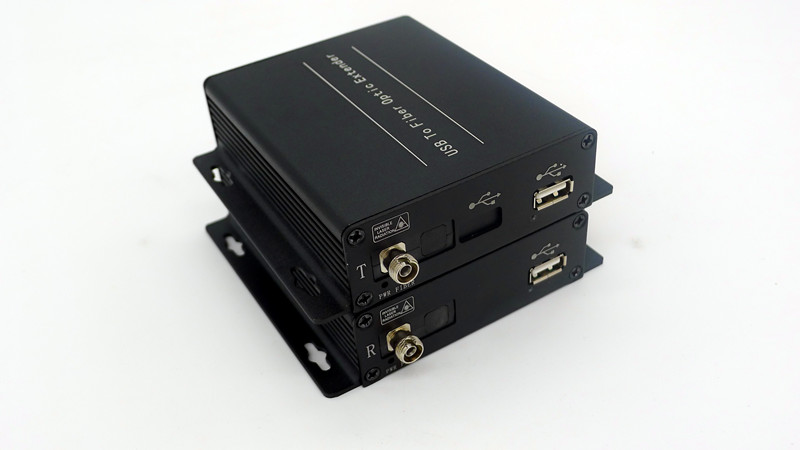

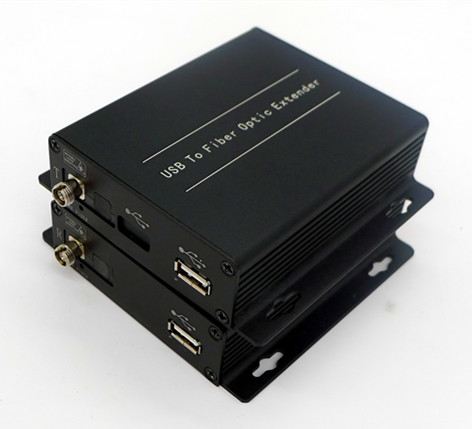

USB 3.0 Fiber Optic Extender, also named as USB3.0 To Fiber Converter. The device includes a transmitter(client-side) and a receiver(host-side), which can extend the SuperSpeed USB3.0 to a remote location over 1or 2 core fiber cable, max distance 250m (SM or MM fiber cable).
The device can extend high bandwidth USB 3.0 webcams and storage devices ,which is widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.


USB 3.0 Fiber Optic Extender Product feature:

1, Max extension distance 250m (SM or MM fiber cable).

2, Duplex/Single LC fiber connecter, pure hardware design, no driver needed, compatible with all operation systems, support plug and play

3, Support USB3.0 SuperSpeed up to 5Gbps, USB 3.0 Type A Receptacle

4, No compatible with USB 2.0 and USB 1.1


USB 3.0 Fiber Optic Extender Applications
1, industrial video transmission
2, machine vision system
3, high-definition video surveillance systems
4, high-speed data acquisition system
5, remote storage
6, digital signage and video wall
7, industrial printers system

Product specification:

Optical Connector Duplex/Single LC
Wave length 1310nm/1550nm
Physical Size (L× W ×H) 104mm x104mm x28mm
Case Aluminum
Color Black
N.W. 0.75Kg
Power Voltage 5V DC
sender power consumption <5W
receiver power consumption <5W
Environment Working temperature 0℃-50℃
Storage temperature -40-85℃
Humidity 0-95% (non-condensing)

Panel diagram:


Equipment powered sequence:

(1) Receiver(host-side)powered with the DC 5 v adapter , powered via USB port from host PC

(2) Transmitter(client-side)powered with the DC 5 v adapter

(3)The USB3.0 device connect to the transmitter(client-side)

Note:

If the host PC does not recognize the device, you can carry out the following operations:

1 press the the REST key of transmitter(client-side), restart the device.

2 Click the "device manager", see "USB3.0 hub" - off "power management" attribute in the page "allow the computer to turn off this device to save power options;

3 Connect another USB3.0 interface of host PC.

4 uninstall the "USB3.0 hub" in the device manager, re connect.

When device is working, do not plug USB3.0 and fiber cable, so as to avoid the equipment does not work properly.

Connection diagram:
