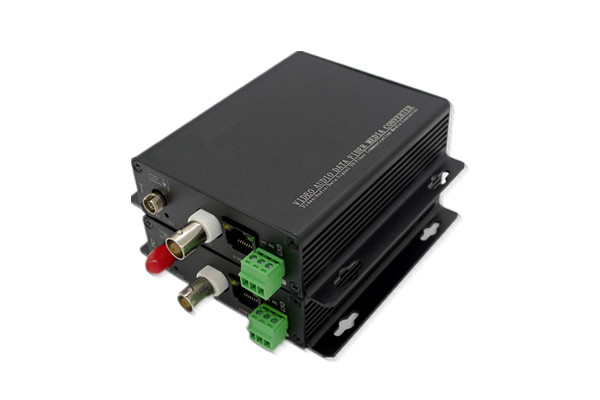

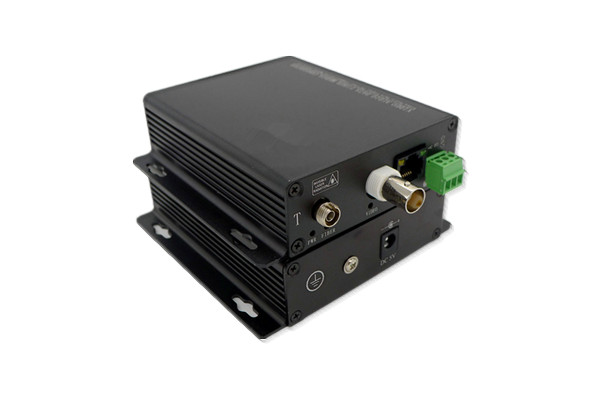

Outdoor RS485 data Ethernet HDCVI Optical Transceiver

FOB Price:	80.00 - 220.00 USD/Pair
Supply Ability:	100,000 Pair/Pairs per Month
Shipping:	3~5 working days
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

CCTV Accessories/Video Balun-4CH Active UTP Vid...

Price:

Min. Order:
Portable 18650 Lithium Battery UPS USB 5V Two D...

Price:17.10 USD/Piece

Min. Order:1 Piece
Active Video Balun Transmitter and Receiver

Price:

Min. Order:50 Pair
Wireless Handler with Monitor for Endoscpe Bore...

Price:100.00-120.00 USD/Unit

Min. Order:1 Unit
Passive Video/Power/Data UTP Balun

Price:5.37-5.66 USD/Piece

Min. Order:100 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	1pair power adaptor,1 optic transmitter,1 optic receiver,1User's Manual

Quick Details

Model Number: JM-CVI-1V1D1E
Brand Name: JiaMinAVTech
Video Bandwidth: 45MHz
Dimension: 104mmx104mmx28mm
Package size: 23x19x9cm
Installation: Wall mount
Case material: Aluminum
fiber connector: FC,ST,SC

Specifications

1CH RS485 Data Ethernet HDCVI to Fiber Converter support 1CH 720p / 25,720p / 30,720p / 50,720p / 60,1080p / 25,1080p / 30 CVI coaxial analog HD video+ 1CH reverse/bidi RS485 data +1CH full duplex 10/100M ehternet over a single fiber , using self-developed non-compressed digital photoelectric conversion technology, , to achieve megapixels level analog HD video point to point highly and reliably transmission over fiber without delay,

1CH RS485 Data Ethernet HDCVI to Fiber Converter Feture:

1. aluminum case wall-mounted or plug-mounted 2U chassis
2. Support 25/30/50 / 60fps 720P & 25 / 30fps 1080P
3. All interface uses three anti-static, lightning protection
4. Wide optical dynamic range and advanced adaptive technology, transmissiondistance up to 20KM
5. The surface mount devices, to ensure that products are small, high stability, high reliability
6.Low electromagnetic interference (EMI), radio frequency interference (RFI)as well as common ground loop interference
7. Rich LED indicator diagnostic indication
8. Plug and Play, hot swappable
9. Small size, low power consumption, anti-interference ability, high fidelity, etc.
10. Industrial wide temperature range (-30 ℃ ~ + 75 ℃), to adapt to the more environment
11. support user customization and OEM

1CH RS485 Data Ethernet HDCVI to Fiber Converter Application:

1. Urban Traffic Monitoring System
2. public security, safe city monitoring system
3. highway security, charging system
4. buildings, campus monitoring network
5. Industrial monitoring (airport, chemical, iron and steel, petroleum, railway, water conservancy, mining, etc.)
6. Military monitoring (storage, frontier defense, guard, national defense, etc.)
7. Power oilfield, television program transmission system
8. Gymnasium (live video, audio transmission)

Specifications

Opitcal:

Wavelength	1310nm&1550nm
Output Power	-8~-3dBm
Rx sensitivity	-25dBm
Transmission Distance	50/125u multimode,1km;62.5/125u multimode,500m 9/125u single mode, 20km
Optical connector	FC,ST,SC (optional)

Video:

Number of Channels	1
Input/output impedance	BNC 75Ω (unbalance)
Standard video input/output	1.0Vp-p
Video Bandwidth	45MHz
Sampling Bandwidth	10bit
Sampling Frequency	108MHz
Rise and Fall time	<0.8ns
Optical Signal Intrinsic Jitter	<0.2 UI
Differential Gain	< ±1.5%
Differential Phase	< ±1°
Connector	BNC

Data:

Data protocol	RS485(Reverse or Bidi)
Data rate	0~200 Kbps
Error rate	< 10^-9
Connector	Standard terminal lead

Ethernet:

Work mode	Full duplex/half duplex
Data Rate	10/100Mbps(AUTO)
connection terminal	RJ45

Other

Power	DC5V 2A
Power Consumption	≤5W
Temperature	-30oC ~75oC
Humidity	10%~90% RH
Unit Weight	0.75kg (pair)
Dimension	104mm×104mm×28mm
Package size	23×19×9cm
Installation	Wall mount
MTBF	≥ 100000Hours
Case material	Aluminum

System connection diagram

Standalone Dimensions:
