Pingxiang Chemshun Ceramics Co., Ltd.

China Manufacturer with main products: Ceramic Liners, Ceramic Wear Parts, Alumina Tiles, Alumina Ceramic Sheet, Industry Plate, Industry Ceramic Liner, Ceramics, Engineer Ceramics

Home >Products Catalog > High Wear resistant alumina ceramic block cube as abrasion materials

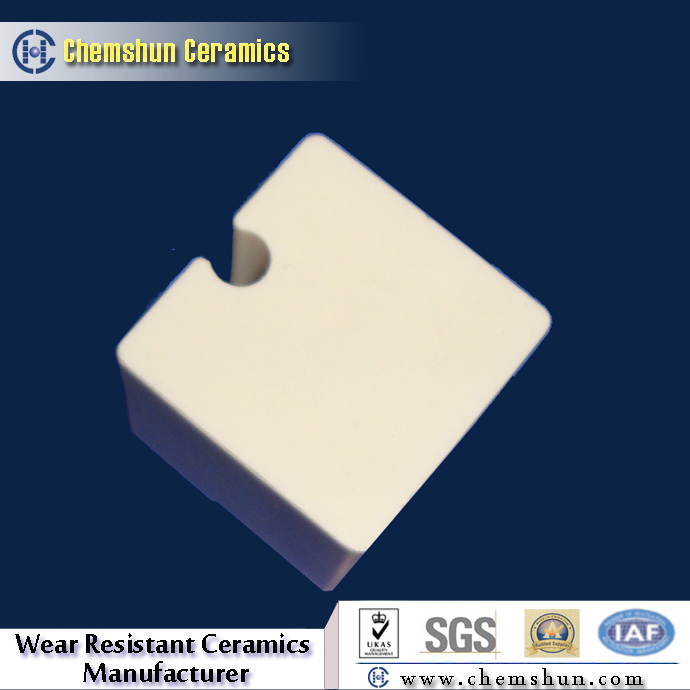

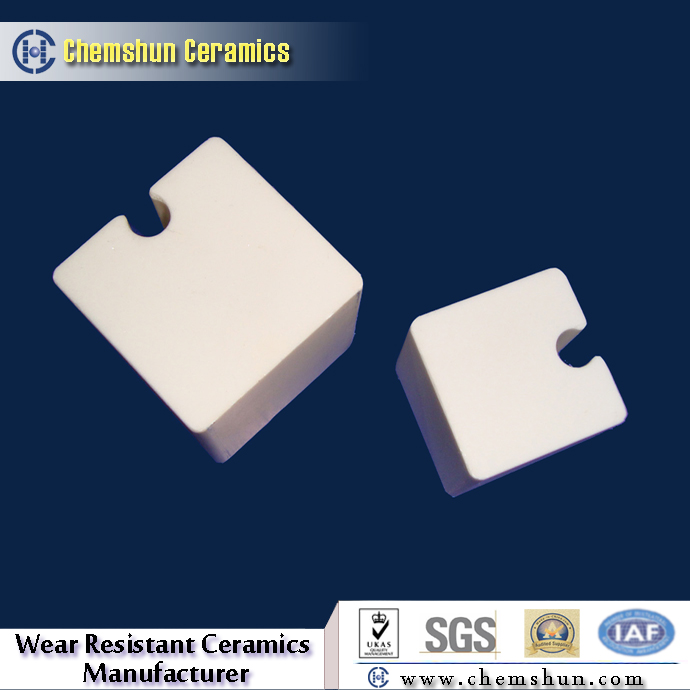

High Wear resistant alumina ceramic block cube as abrasion materials

FOB Price:	1,000.00 - 2,000.00 USD/Ton
Supply Ability:	3,000 Ton per Month
Shipping:	Shenzhen
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	China
Packaging Details:	Carton+Pallet

Quick Details

Chemical Composition: alumina
Shape: Square/Rectangle/Inter-Locking
Application: thermal power, iron and steel, metallurgy, mechanical, coal, mine, che
Model Number: alumina ceramic block
Brand Name: Chemshun
Alumina Content: 92% & 95%
Density: 3.6~3.7g/Cc
Compressive Strength: 850~1000MPa

Specifications

>>> Product Details:

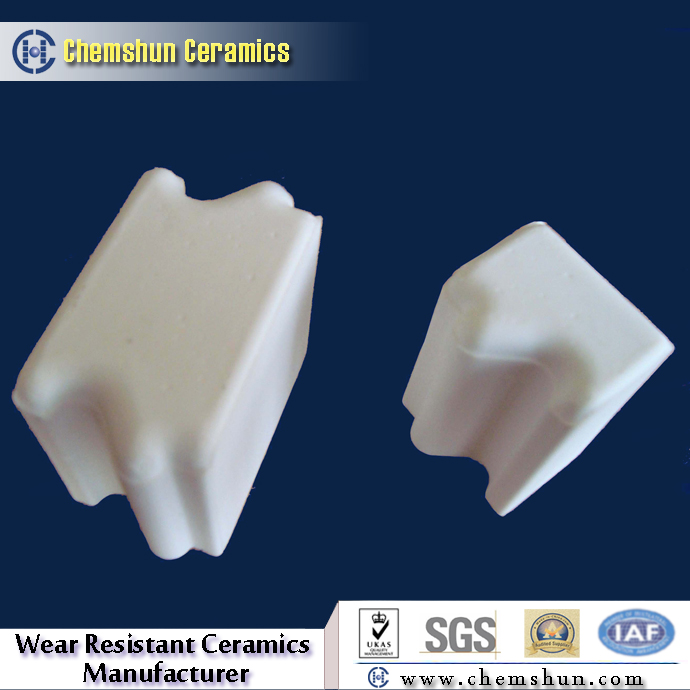

Chemshun Alumina Ceramic Blcoks are designed as per the requirements of the customers' engineerings combined with the cost, installation and effective of application. Especially the blocks with tongues and grooves, Its obvious performance is that they could lock each other due to the tongues and grooves to increase the connectivity in whole engineering. So it is used widely in pipe lining, ceramic rubber plate in mining industry, steel plant, cement plant, port, power plant,etc.
>>> Reputation & Experience for Quality
CHEMSHUN served industrial maintenance company for 13years, we earned good reputation by our believable products and sincere service , CHEMSHUN CERAMICS are the wear resistant ceramics of choice for a large variety of industries including mining, sand and gravel, coal handling, steel production, and more.
>>> Chemshun wear resistant materials application :
Copper Mining Processing
? Mill Feed Throats
? Underflow Tub Liners
? Material Handling Chutes
? Cyclone Feed/Discharge Piping/Chute
Coal Preparation
? Cyclone Distributors
? Cyclone Liners
? Magnetic Separator Chutes
? Impact Panels
? Sieve Bend Feed Boxes
? Pipe Lining/Elbows
Cement Industry
? Chutes
? Cyclone Separators
? Cones
Chemshun Ceramic Product Salient Property:
Excellent wear and abrasion protection property
Lower production and maintenance cost
Excellent corrosion resistance property
Excellent impact resistance property
Excellent heat resistance property
Easy to handle size and weight
Fast and safe installation
Chemshun Ceramic Advantage:
Afford the standard and pre-engineered tiles
Professional technical team to afford CAD designs
Professional installation team to afford install service
Well established process as per international standards

Technical Data of Alumina ceramic product from Chemshun
Properties	Unit	Typical Value
Alumina Content	%	92	95
Density	g/cc	≥3.6	≥3.7
Water Absorption	%	None	None
Rockwell Hardness	HRA	80	85~88
Compressive Strength	20oC,Mpa	850	950~1000
Flexural Strength	20oC,Mpa	280	300
Max Using Temp	oC	1250	1250
Thermal Expansion Coefficient	1x10-6/oC	7.3	8.3

Available size of Inter-locking tile from Chemshun
Length(mm)	Width(mm)	Thickness(mm)
100	33	25
50	20/19.28	5
40	40	10/25/40/50
40	20	25/50
38	38	38
32	32	16/32
30	30	25
30	15	25

Application Industry from Chemshun
Industry	Equipment System	Equipment parts
Cement	Pre-blending system for crashing limestone and crude fuel	Chute,Bunker,Pulley lagging,discharge cone
	Raw mill system	Feed chute,Retaining ring,Scraper plate,Seal ring,Pipeline,Bucket guard,Cyclone,Powder concentrator body,Bunker
	Cement mill system	Chute,Bunker,Fan vane wheel,Fan casing,Cyclone,Circular duct,Conveyer
	Ball mill system	Pulverizer exhauster's body and vane wheel,Powder concentrator's body,Pulverized coal's pipeline,Hot air duct
	Sintering system	Inlet/Outlet bend,Wind value plate,Cyclone,Chute,Dust collector's pipe
	Afterheat system	Separator's pipeline and wall
Steel	Raw material feeding system	Hopper,Silo
	Batching system	Mixing bunker,Mixing barrel,Mixing disk,Disk pelletizer
	Sintered material transport system	Hopper,Silo
	Dedusting and Ash discharge system	Dedusting pipeline,Bend,Y-piece
	Coking system	Coke hopper
	Medium-speed mill	Cone,Separation buffles,Outlet pipe,Pulverized coal's pipeline,Burner cone
	Ball mill	Classifier,Cyclone separator,Bend,Powder concentrator's Inner shell
Thermal power	Coal handling system	Bucket wheel machine,Coal Hopper,Coal Feeder,Orifice
	Ball mill system	Separator's pipe,elbow and cone,Coal mill's elbow and straight tube
	Medium-speed mill	Coal mill body,Separation buffles,Cone,Pipeline,Elbow
	Fall mill	Pulverized coal's Pipeline and Elbow
	Dedusting system	Dedusting's Pipeline and Elbow
	Ash discharge system	Fan duster's shell,Pipeline
Port	Transporting material system	Bucket wheel machine's disk and hopper,Transfer point's hopper,Unloader's hopper,
Smelting	Transporting material system	Measuring hopper,Coke hopper,Vibrating screen's chute,Head valve,Intermediate Bin,Tail bin
	Batching system	Batch hopper,Mixing machine
	Burning system	Ash bucket,Pump calcine tube,Hopper
	Dedusting system	Dedusting's Pipeline and Elbow
Chemical	Transporting material system	Hopper,Silo
	Dedusting system	Dedusting's Pipeline and Elbow
	Processing equipment	Vibromill liner
Coal	Coal handling system	Bucket wheel machine,Coal Hopper,Coal Feeder,Silo
Coal	Coal washing system	Hydrocyclone
Mining	Transporting material system	Hopper,Silo

Service:
Any requirment about chemshun Alumina Ceramic Square Mosaic Tile ,Alumina Ceramic Inter-Locking Block , Alumina Ceramic Liner Vulcanized Into Rubber and wear resistant ceramic product Backing, alumina ceramic rubber wear plate and Wear Resistant Rubber Ceramic Panels, please feel free contact us and chemshun we'll afford you the most suitable product and best service.
Export:
Our products have been exported to many countries: Australia, Chile, USA, Russia, UK, Indonesia, etc., good quality have be approved by our clients.
