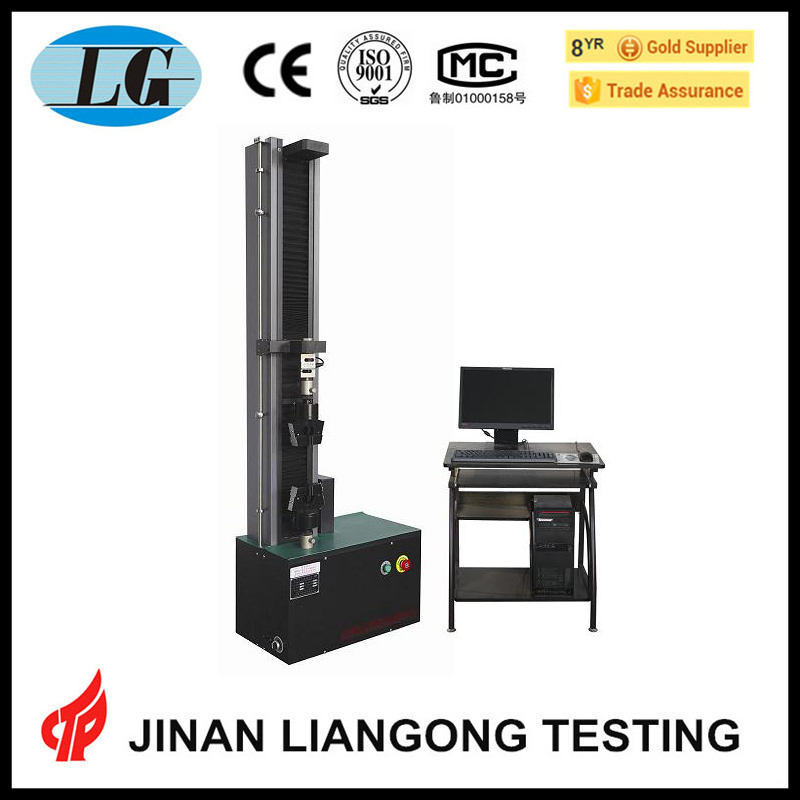

electronic power fabric webbing pull strength testing machine
| FOB Price: | 5,000.00 - 30,000.00 USD/Set |
|---|---|
| Supply Ability: | 60 Set(s) per Month |
| Shipping: | within 15 workdays or less |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | export standard packages |
Quick Details
- Usage: Tensile Testing Machine
- Power: Electronic
- Model Number: CMT
- Brand Name: LIANGONG
- Name: electronic power fabric webbing pull strength testing machine
- Model: CMT-01L, 02L, 05L, 1L, 2L, 5L, 10, 20, 30, 50, CMT-100, CMT-200, 300
- Max. test force: 300kN
- accuracy class: 0.5 class
- measurement range of force value: 2%-100% FS
- test force accuracy: +/-1%
- displacement measurement: micrometer gauge
- speed of test: 0.01-500 mm/min
- effective testing width: 400 mm, 550mm
- dimension: 650*330*1730mm, 760*460*1900mm, 1050*750*2100mm, 1050*900*2400mm
Specifications
electronic power fabric webbing pull strength testing machine
This machine is applied in analysis and research of statics property testing of tensile, compression, bending, cutting, holding and other items of metal and nonmetal material (including composite material). It can achieve ReH, ReL, Rp0.2, Fm, Rt0.5 , Rt0.6, Rt0.65, Rt0.7,Rm, E and other testing parameters automatically and can also do test and provide data according to GB, ISO, DIN, ASTM, JIS and other international standards. electronic power fabric webbing pull strength testing machine
| Name | electronic power fabric webbing pull strength testing machine |
| Model | CMT-01L, 02L, 05L, 1L, 2L, 5L, 10, 20, 30, 50, CMT-100, CMT-200, 300 |
| Max. test force | 300 kN |
| accuracy class | 0.5class |
| measurement range of force value | 2%-100% FS |
| test force accuracy | ±1% |
| displacement measurement | micrometer gauge |
| speed of test | 0.01-500 mm/min |
| effective testing width | 400 mm, 550mm |
| clamp configuration |
1, Equipped fixture can be based on users' needs or customer made. 2, Alternative transducer is available to extend the measuring range. 3, The tensile space can be heighten on users' requirement.
|
| dimension | 650*330*1730mm, 760*460*1900mm, 1050*750*2100mm, 1050*900*2400mm |
