VET portable Color Doppler Ultrasound Scanner system diagnosis cattle , dogs

Specifications

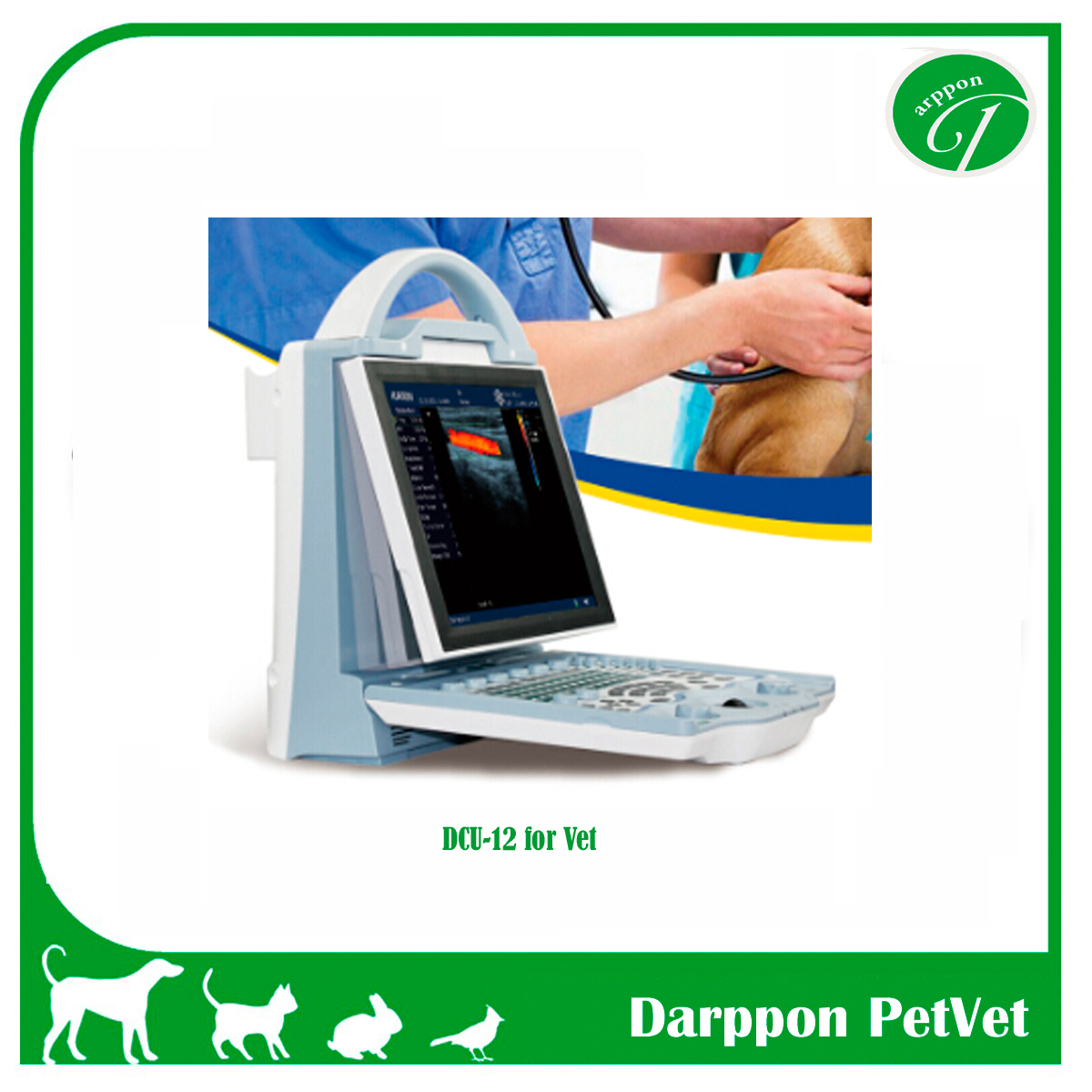

DCU12 Full Digital Color Doppler Ultrasound scanner(Vet)

Instrument name:

DCU12 full digital color Doppler ultrasound diagnostic instrument

Application range of instrument: DCU12 have the leading image process technical and practical clinic solution method, apply to ultrasound diagnosis of Bovine, Canine, Equine, Feline, Goat, Camel, Ovine and Swine.

 2.Primary system performance overview

1. Adopt A8 Embedded flat form, entirely defenses virus invasion, with highly reliability.
2. Operation system: Linux operation system, Chinese/English menu can switch arbitrarily.
3. Full digital multi-beam formation technologies, high accuracy postpone point wise adopt dynamic focusing, broadband frequency imaging, adaptive imaging optimization technique, adaptive vessel imaging, adaptive Doppler imaging etc.
4. Broadband frequency full digital sound former: dynamic focusing.
5. Two-dimensional gray-scale imaging unit.
6. M mode imaging unit.
7. Dynamic range can visual and adapt.
8. Two-dimensional gray-scale imaging unit, gray-scale≥256, with excellent subtle and contrast resolution and full uniformity.

 3. Technique parameters

• Standard parameters

1. Gray scale: 256
2. Color scale: 256
3. Monitor: 10.4" flicker free high resolution medical color LCD.
4. Adapter rating: 100-240V～1.2-6.0A Frequency: 50-60Hz
5. Output of adapter: DC12.8V 3.0A
6. Power consumption: ≤100VA
7. Main unit size: approx. 256*150*326(mm, L*M*H)
8. Weight of main unit: approx. 4.5kg(excluding accessories)

• Multimedia and external device

1. Video recorder;
2. I-Station integral working station, realizing store image, general report and could print function.
3. U-disk (support document management, software upgrading, one-key storage function), DICOM port, convenient for doctor to manage data, support long-distance transmission.
4. Dual-mode TV output: PAL/NTSC

• Probe socket

Two activate probe socket, with automatically identification technique, support optional multi probe.

• Language

Menu interface operation, interface language: can switch Chinese/English

• Probe parameter

Number of elements: 80

Linear rectal probe 6.5MHz; Range of frequency: 4.5/ 5.5/ 6.5/ 7.5MHz

Convex array probe 3.5MHz; Frequency range: 2.02.53.55.0MHz

High frequency broadband probe 7.5MHz; Frequency range:6.06.57.59.0MHz

Dimpling broadband probe6.5MHz; Frequency range:5.0/6.5/7.5/9.0MHz

4.Main function

1. System preset function.

2. Customized definition:(I-User-defined function overturn the blindness setting of the customized definition parameter. Remember the setting during the use process and finish browse and store only by one key.

3. Probe switching function

4. Mode switch function

5. Magnification and depth range choosing function

6. Frequency conversion

7. Frame correlation function

8. Edge enhance adjustment function

9. Compression curve adjustment function

10. Image post processing function

11. Focus position adjustment function

12. Up and down, left and right reversal function

13. Image freeze and unfreeze function

14. To realize multistage TGC adjustment, total gain and function adjustment function

15. Image optimizing imaging technology

16. Color frequency, PRF and wall filter adjustment function

17. Sensitive, color afterglow, color threshold value, color balance, color smooth, artifact elimination function

18. Angle of deflection, sample volume, linear array color deflection, speed scale and basic line adjustment function.

19. Harmonic adjustment

20. General measurement of M mode,CFM mode,PDI mode,PW mode; application measurement of abdomen,obstetrics,cardiac, urinary system and superficial organ.

21. Sound power adjustment function

22. Puncture guiding function

23. Gravel positioning function

24. Built-in dish store space16G, store lots of images, reports and video. Store forever and not miss when power cut.(BMP image≥10000, PNG image≥100000)

25. Image management function

26. Magnanimity movie clips store and playback function

27. Body mark function

28. Input note

29. Patient information input

30. Automatic report forming

31. One key store function: Convenient one key store function provides user faster operation

32. One key report invoking

33. Using only one key to transmit the ultrasonic images to the network printer; realize web print and make up the weakness of specified printer.

34. Web print function

35. LCD brightness adjustment

36. Power conservation function

37. Chinese-English menu convert

 9.standard configuration

• Main unit : 1 PC
• 3.5MHz common abdominal probe: 1PC
• You can choose any 1pc probe from below :

>6.5MHz rectal linear probe

> 7.5MHz linear probe

>6.5MHz micro-convex probe

• Work station software : 1 Set
  • Reticle:1 pc

10. Optional accessories

• Foot switch
• Portable trolley
• Video recorder
• Ethernet switch
