Shenzhen Grande Electronic Co., Ltd.
China Manufacturer with main products: PCB Layout, Turnkey Pcba, PCB Prototype, Circuit Board Assembly, Full-Turnkey PCBA, Bespoke PCBA, Electronic Contract Manufacturing,... |

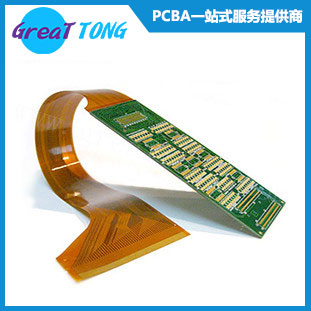

Rigid Flex PCB PCB for Military Industry PCB+FPC Immersion Gold
| FOB Price: | 1.00 - 2.00 USD/Piece |
|---|---|
| Supply Ability: | 60,000 Piece(s) per Month |
| Shipping: | about 1 week |
| Payment Terms: | T/T, Western Union, MoneyGram |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shenzhen in China |
| Packaging Details: | paper box |
Quick Details
- Surface Finishing: Immersion Gold
- Min. Line Spacing: 3 mil
- Min. Line Width: 3 mil
- Min. Hole Size: 4 mil
- Board Thickness: 1.6 mm
- Copper Thickness: 1 oz
- Base Material: FR-4
- Model Number: GT-PCB-3
- Brand Name: Grande
- Lead Time: 10 days
Specifications
PCB Capabilities
Layers: 1-30
Quantity: 25,000 sq.m/month
PCB Types: 5oz heave copper, Impedance board, HDI, HF board, Aluminum, FPC, Rigid Flex PCB
PCB Basic Material Brand
HF: Rogers, Taconic
HTG: S1000-2M, Lianmao IT180A
Solder Mask: Taiyo PSR-2000/4000 Series
Surface Treatment: HASL, Im Au, OSP, Im Sn, Im Ag, 50" Hard gold plated
Mixed Surface Treatment: Im Au+OSP, Im Au+Golden Finger, Im Ag+Golden Finger
PCB Technical Parameters
Min trace width/space: outer 2.5/2.5mil, inner 3/3mil(1/3, 1/2oz)
Min Via: 0.15mm/0.1mm(Laser)
Min Annular Ring: 4mil
Max copper thickness: 7oz
Max size: 650x1100mm
Thickness Aperture Ratio: 20: 1
Tolerance
PTH: +/-0.0075mm (min: +/-0.05mm)
Outline: +/-0.1mm (min: +/-0.05-0.075mm)
