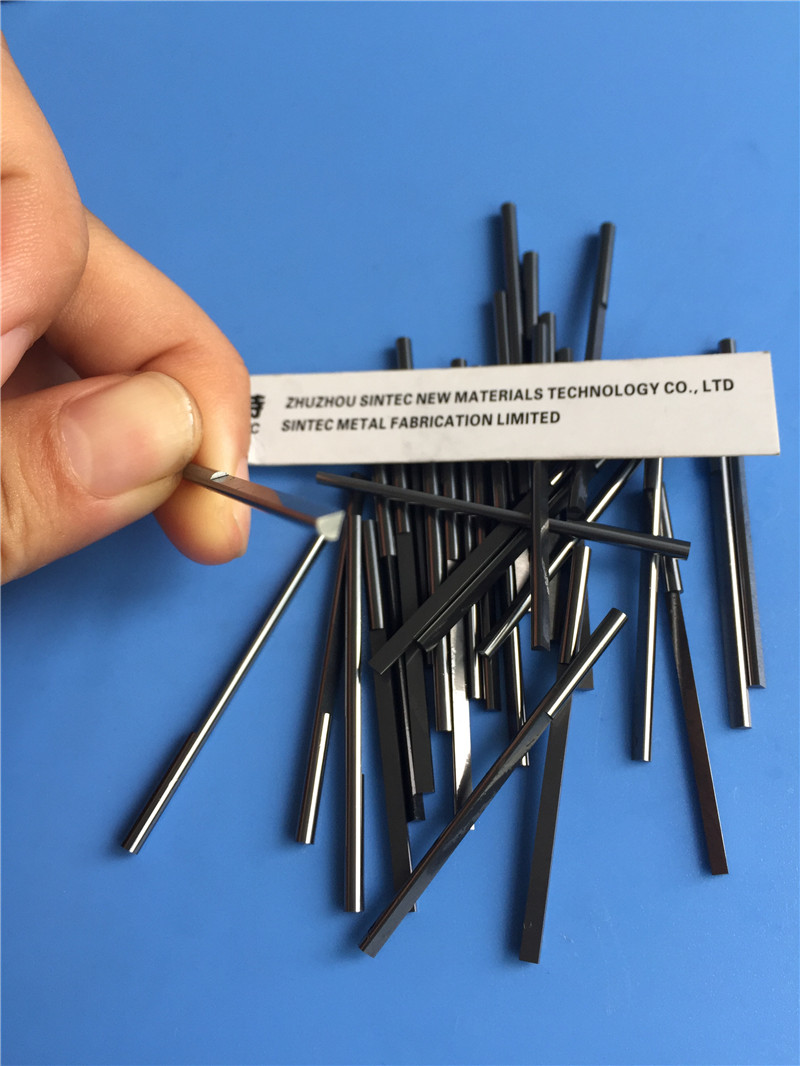

High precision finishing tungsten carbide short rods

FOB Price:	0.50 - 10.00 USD/Piece
Supply Ability:	500 Ton(s) per Year
Shipping:	in 7 working days
Payment Terms:	T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hunan in China
Packaging Details:	vaccum, carton with foam filled

Quick Details

Chemical Composition: WC, Cobalt
Dimensions: Dia. 0.2~35mm Length: 0 ~800mm
Material: Tungsten carbide raw material
Shape: Cylindrical
Application: end mills, drilling, milling, cutting tools
Model Number: XTR-001
Brand Name: ZZSINTEC
Type: soliid carbide
Color: dark grey
Tolerance: +/-0.001mm
Grain size: Ultra Fine, Extra Fine
Model: Threaded or with Holes; Custom Tailored
Custom: Accepted

Specifications

Tungsten carbide,a material of high hardness, good wear resistance and corrosion resistance, now widely used in , , , , other tools and instruments, and .

Tungsten carbide rods, with excellent performance, are playing a more and more important role in the industry of cutting tools.
A compelete range of tungsten carbide rods are available according to your specific applications.

Grades for your choice

Grade	ISO Code	Density g/cm3	WC%	Co%	Hardness (HRA)≥	T.R.S MPA	Applications recommended
YG8	K20	14.6-14.9	92	8	90.3	23200	Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
YG11	K40	14.4	89	11	87.5	2260	Medium grain, for wear parts and mining tools
YG15		14.0-14.2	85	15	88	2400	Medium grain, for mining tools, cold heading and punching dies
YN8		14.6	92	Nickel 8	88.5		With 8% nickel binder, good corrosion resistance, superalloy, also can be used to cut titanium.
YS2T		14.45			92.5	2800	Fine carbide, high wear resistance, high bending strength, high resistance to bonding, high thermal strength.Machining of refractory alloys, stainless steel and high manganese steel etc.Mainly used for disc cutter and other tools
YL10.2		14.5			92.5	3400	Wear resistance and strength comparatively higher, suitable for processing cast iron, non-ferrous metal and non-metalloid materials
YNi8		14.6			88.5	1710	This grade with 8% nickel binder, it has good wear resistance& corrosion resistance performance,especially used for high pressure environmental,also good for cutting the titanium alloy.

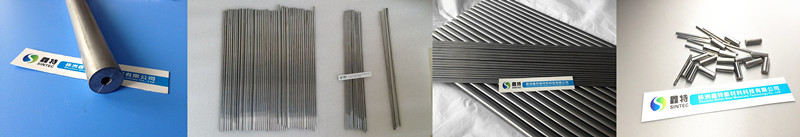

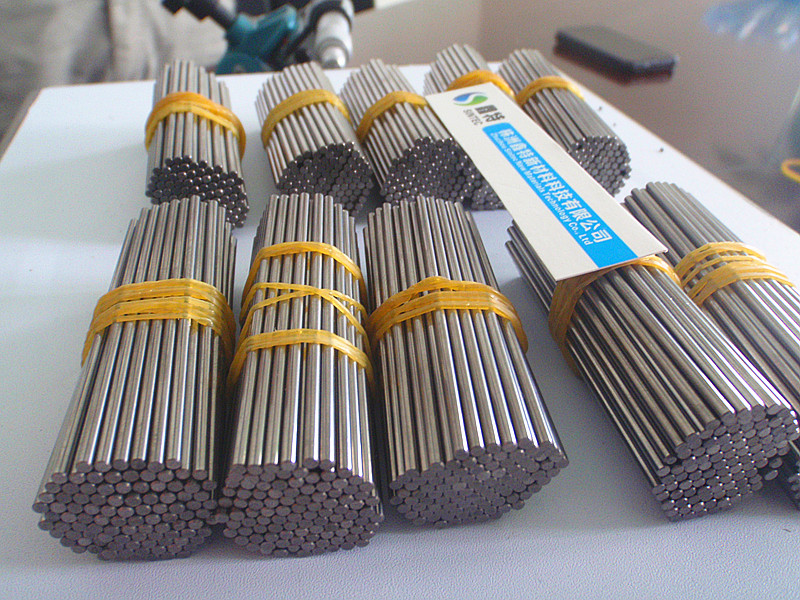

We offer all sizes of unground Tungsten Carbide blank rods and precision ground Tungsten Carbide Rods

Type	Diameter (mm)	Dia. Tolerance (mm)	Length (mm)	Length Tolerance (mm)
Blank rod	0.5 ~ 33	0 / +0.3	700 Max	0 / +0.4
Ground rod	0.5 ~ 33	-0.013 ( h6)	0~350	h6, h7 grade

We also accept Customized tungsten carbide rods and rods with coolant hole.
Materials Grade: All standard grades , ISO K10, K20, K30 and K40F
Fine grain tungsten carbide / Ultra-fine grain tungsten carbide
Solid carbide random length rod
1/64, 1/32, 3/64, 1/16, 5/64, 3/32, 7/64, 1/8, 9/64, 5/32, 11/64
3/16, 13/64, 7/32, 15/64, 1/4, 17/64, 9/32, 19/64, 5/16, 21/64, 11/32,
23/64, 3/8, 13/32, 7/16, 15/32, 1/2...

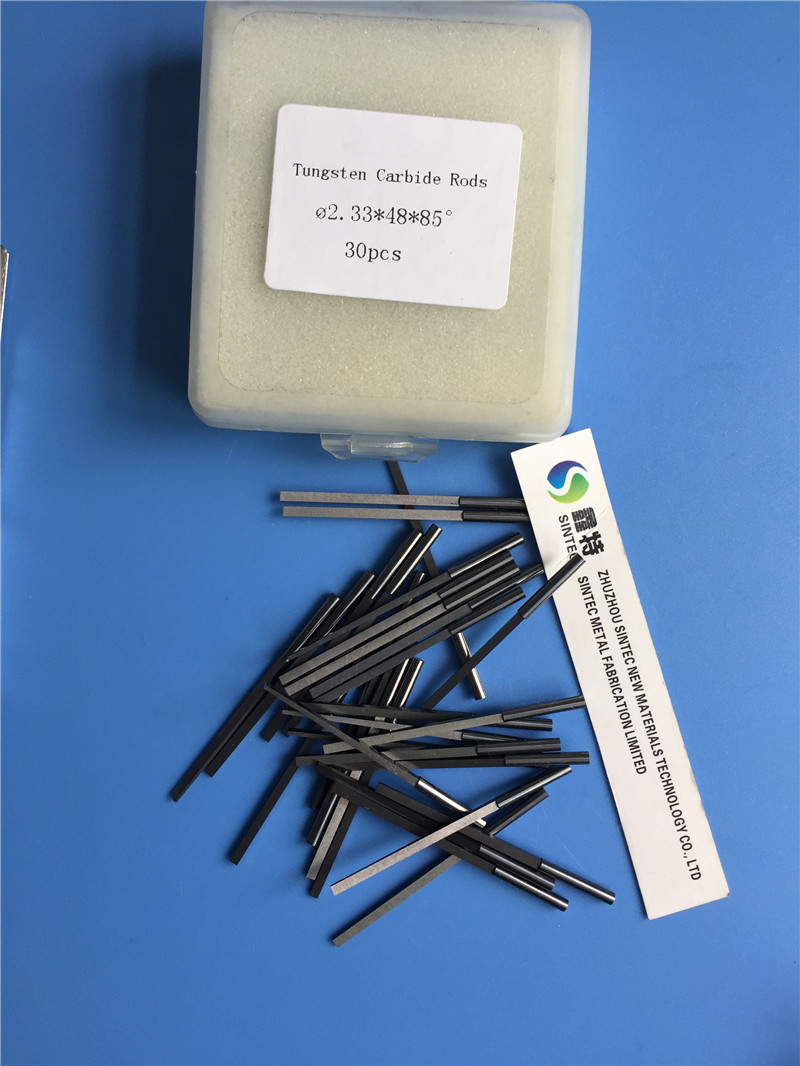

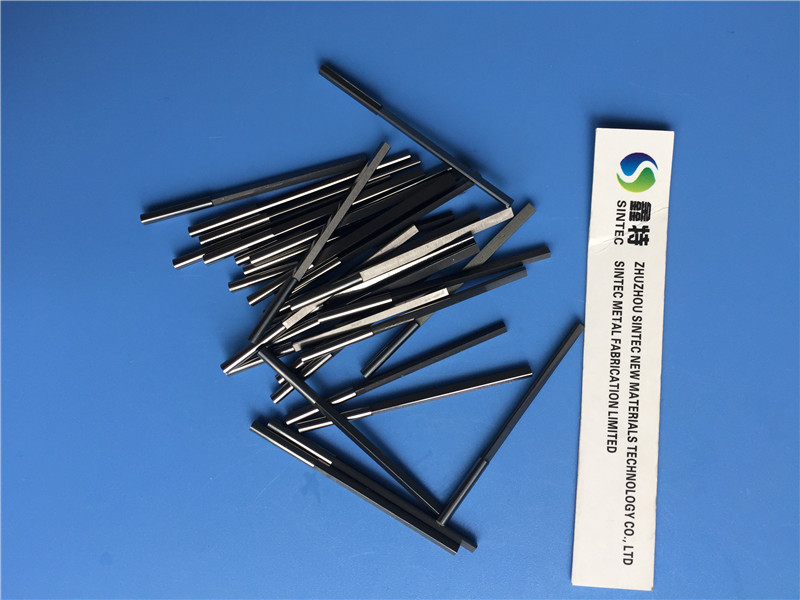

High precision finishing tungsten carbide short rods

Maufacturing facility
Equipment: EDM machines, cutting machine and drilling, CNC machine, precision grinding machine etc.
COD-pressure sintering furnace and CNC Machining center

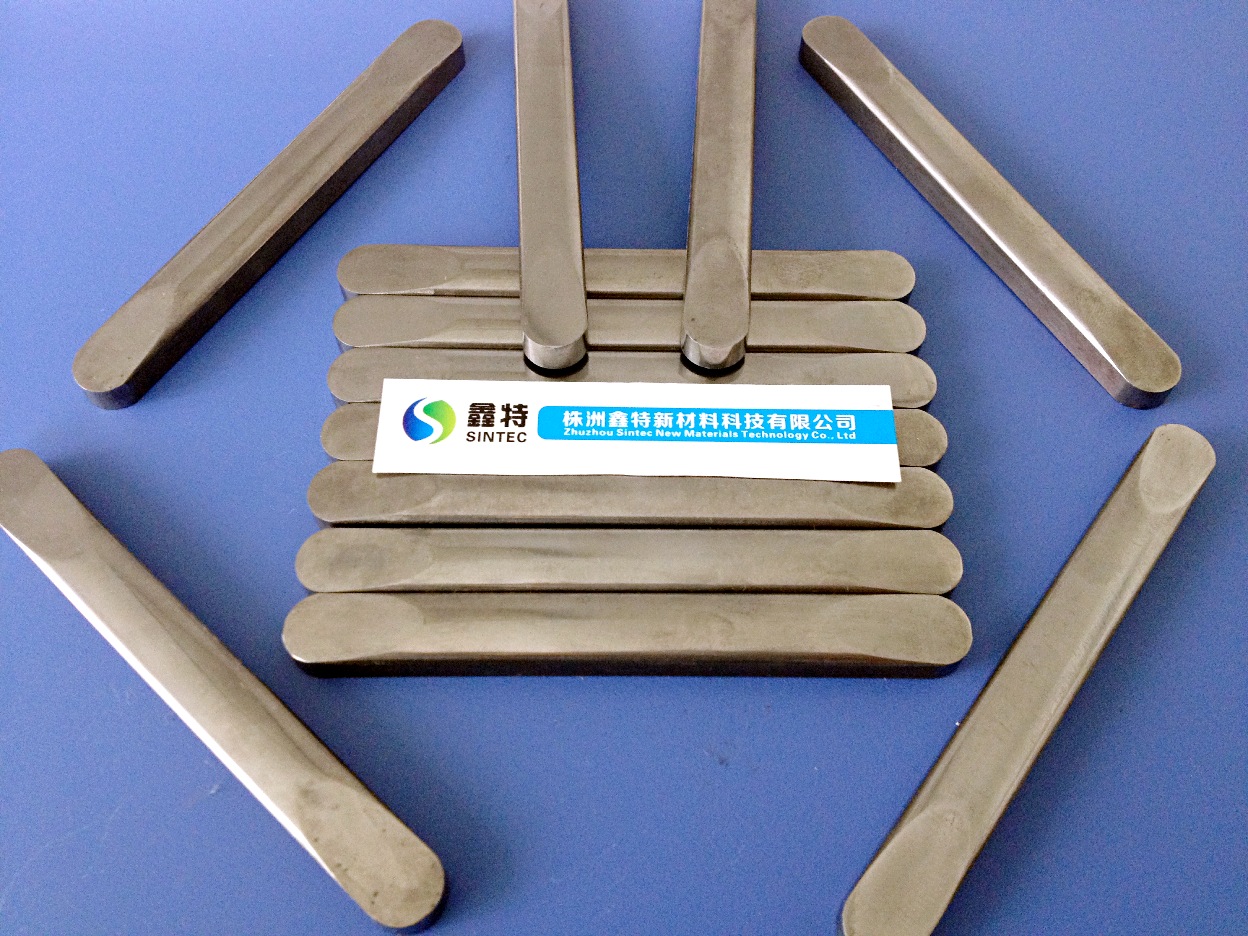

High precision finishing tungsten carbide short rods

Advanced production equipment and technical support, strict quality control, good service support help us to supply our clients with quality products and service.We also good at making wear parts according to your specific applications.

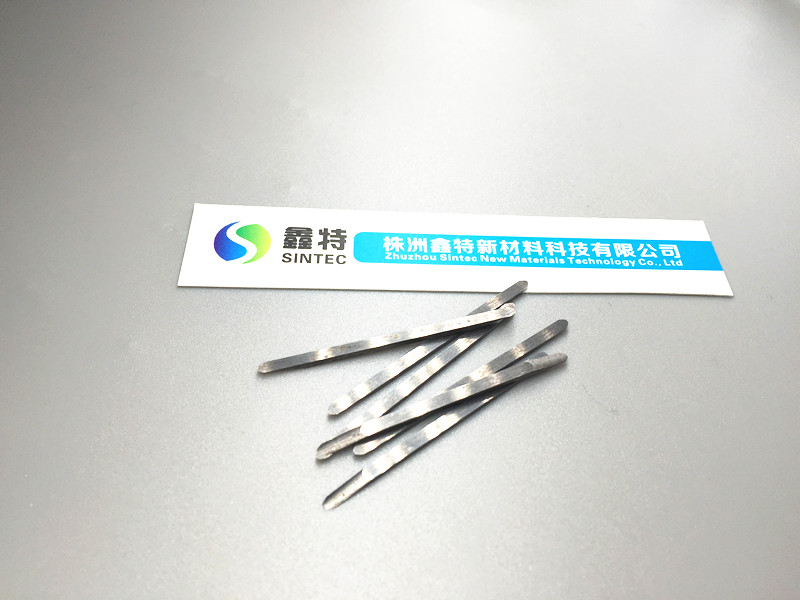

High precision finishing tungsten carbide short rods

If you are finding parts which can be used in harsh environment ,and if you'd customize special parts , Zhuzhou Sintec New Material Co., Ltd will be your best choice!
We will be adhering to the idea of "quality products, quality service, good reputation", to establish firm friendly relationship with you.
Welcome to inquiry, welcome drawings,best offers for you.
