Direct Price High Frequency Welded Pipe Iron Making Machine

Supply Ability:	30 Set(s) per Month
Shipping:	Shanghai port , Delivery time :140 days
Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	1 main machine unpacked 2 electric box packed with plywood box

Quick Details

Technique: Cold Drawn
Application: Industry
Standard: GB
Dimensions: customizable
Grade: AAA
Brand Name: Reliantt
After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 12 months
Pipe Material: Carbon Steel
Type: Pipe Mill
Condition: New

Specifications

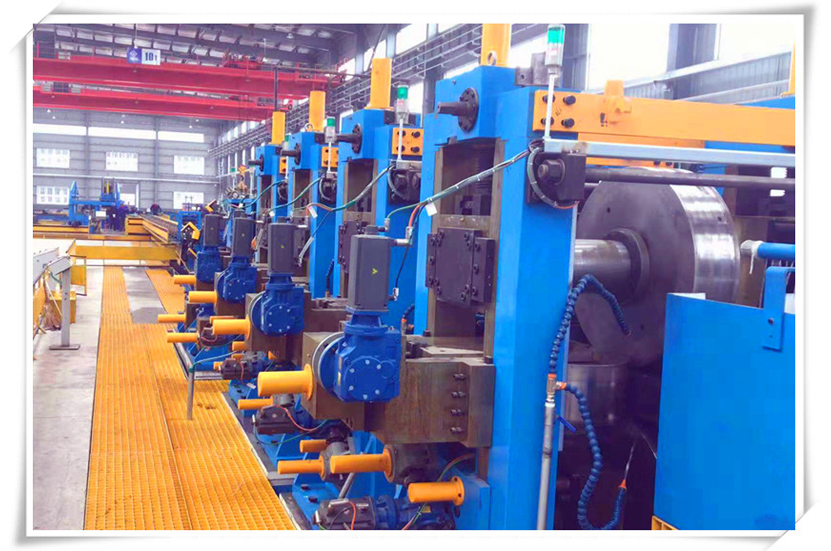

Square & Rectangle pipe mill is the special equipment to produce square and rectangle Steel pipe. this equipment adopts the multipoint bending combined-type forming Technology. One set of mould can produce all size of square and rectangle pipe. Compared with the traditional technology, the produce will have a good Appearance, a good angle; share one set of mould, can cut down the cost of the Machine, shorten the time of adjusting the mould; decrease the forming Resistance, lighten the mould wear, reduce the load of power utilization.

Factory Direct Price High Frequency Welded Steel Square Pipe Iron Making Machine

Process Flow

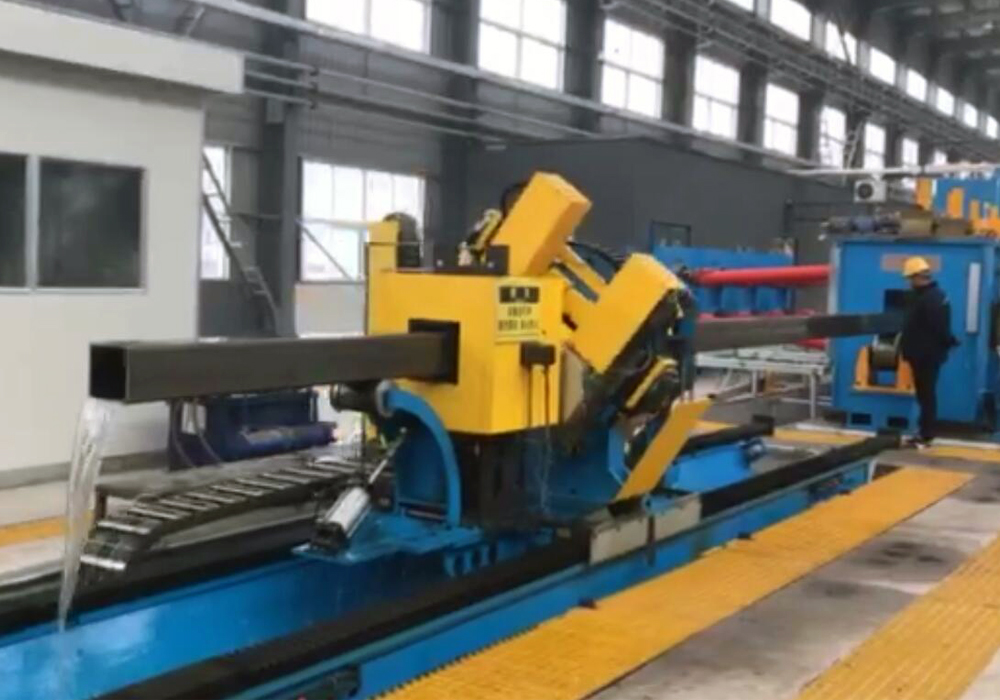

Raw Material (Strip Coil) → Decoiler → Snubber Roller + Pinch Roll + Leveler → Shear & Butt Welder → Horizontal Accumulator → Forming (directly forming to square to Rectangle shape) → HF Welding → Scraping → Cooling → Sizing → Straightening → Cutting → Run-out

Model	Raw Material:b≤580Mpa, s≤350Mpa Low Carbon steel and alloy steel≤X80				Forming Speed (m/min)
	Specifications of Square& Rec. Pipe		Specifications of Round Pipe
	Diameter range(mm)	Thickness Range(mm)	Diameter Range(mm)	Thickness Range(mm)
RT1005	4040~100100	2.0~5.0	50~140	2.0~5.0	10~60
RT1606	6060~160160	2.0~6.0	60~165	2.0~6.0	10~50
RT2008	8080~200200	3.0~8.0	108~219	3.0~8.0	10~35
RT25010	100100~250250	3.0~10.0	114~273	3.0~10.0	10~35
RT30012.7	150150~300300	4.0~12.7	165~377	4.0~12.7	6~30
RT40016	200200~400400	6.0~16.0	219~508	6.0~16.0	6~20
RT50018	300300~500500	8.0~18.0	325~610	8.0~18.0	6~20
