Home >Products Catalog > Ceramic Indium Tin Oxide 99.99% High Purity ITO Target

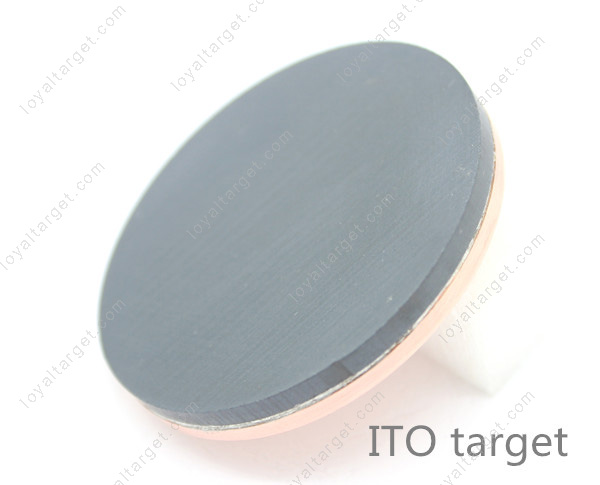

Ceramic Indium Tin Oxide 99.99% High Purity ITO Target

FOB Price:	150.00 - 500.00 USD/Piece
Supply Ability:	100 Kilogram(s) per Week
Shipping:	7-15 days
Payment Terms:	L/C, D/P, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Beijing in China
Packaging Details:	Inner-packing: vacuum bags package with styrofoam. Outer-packing: carton/plywood.

Quick Details

Brand Name: Loyal Target
Model Number: CM-ITO-4
Material: Alumina Ceramic
Application: Industrial Ceramic
Type: Ceramic Parts
Density: 7.1g/cm3
CAS NO: 50926-11-9
color: black

Specifications

Products attributes of high purity ITO target

Item Name	Indium tin oxide target
Purity	99.99%
Composition	In2O3 (wt%):SnO2 (wt%)=90:10 / 95:5 / 97:3
Melting point	1565℃
Coefficient of linear thermal expansion	8.2×10-3K-1
color	black
CAS NO.	50926-11-9
Shape	Square/Round/rectangle, According to your request
Available size	Round: dia 25~300mm,Thickness:3~10mm Rectangular: Length up to 1500mm Customization is available
Certificates	ISO9001:2008, SGS, the third test report
Technics	Hot Isostatic Pressing, Powder metallurgy
Relative density	above 99% ( low pressure oxygen atmosphere sintering method)
Dimension	Largest single chip size of ITO target which is used in TFT - LCD industry, large ito target can be spliced.
Application	Semiconductor application Produce transparency conductive electrode by vapor deposition Vacuum magnetron sputtering ITO conductive glass and flexible ITO conductive film

Packaging and Shipping

Packaging of high purity ITO target: Vacuum sealed package inside, then wrapped with bubble and loaded to carton outside.

Shipping of high purity ITO target:

Shipping way	Time	Notes
EMS	7-10 days	Sample delivery
DHL,Fedex,TNT,UPS	7-10 days	for your choice
by Air	7-10 days	25-100KG
by Sea	25-30 days	Sometimes need more than 30days

Company Information

Loyal Target is focused on high purity metal processing, ceramic sintering and thin film deposition materials. Loyal Target is one of the leading producers of materials for high vacuum coating with more than 10 years experience.

Thin Film Products of Loyal Target covers a wide range of highly effective sputtering targets, evaporation materials and high purity metals for Optics, Wear Protection, Microelectronics and Large Area Coating applications.

Our company objective is to provide materials scientists and engineers with highly individualized solutions for their specific R&D requiremenTs at a optimized budget.

Main Products

Sputtering Targets: Ceramic Targets, Metal Targets, Custom-made Targets

Evaporation Materials: Metals Pellets, Oxide Granules

High pure Metals: Targets, Pellet, Wires, Foils

Target Boning Service: Indium, Copper backing plate
