Home >Products Catalog > 7inch Capacitve Touch Screen Mobile Data Terminals with GPS, GSM & Taxi Dispatch

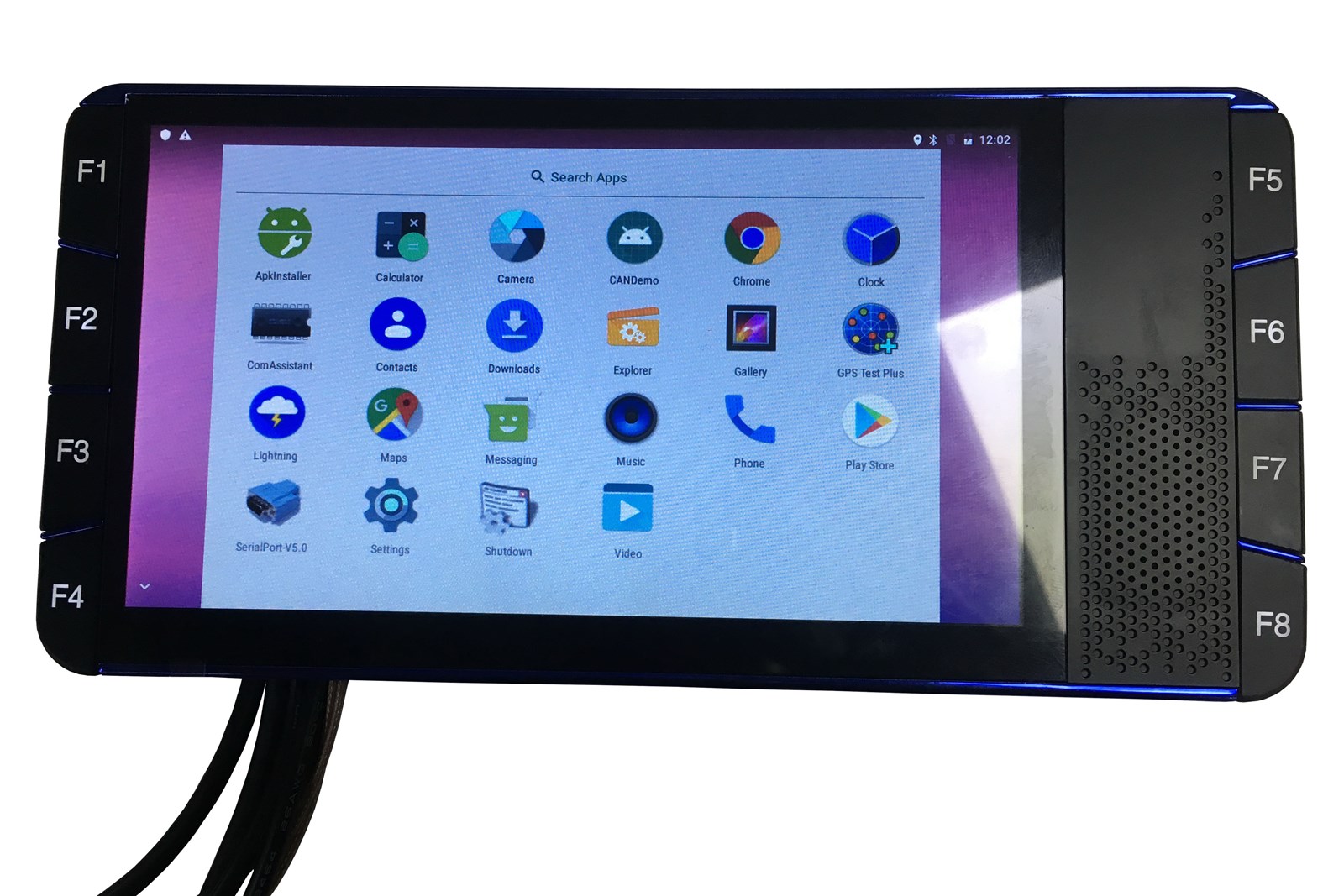

7inch Capacitve Touch Screen Mobile Data Terminals with GPS, GSM & Taxi Dispatch

Supply Ability:	10,000 Unit(s) per Month
Shipping:	3-6 days for examples
Payment Terms:	T/T, Western Union, MoneyGram

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	white box

Quick Details

Warranty: 2Years
Brand Name: neutral
CPU: Rockchip PX3 cortex-A9
Car Make: all
Combination: Bluetooth-Enabled,Built-in GPS,Touch Screen,
Model Number: H9

Specifications

7inch Capacitve Touch Screen Mobile Data Terminals with GPS GSM Taxi Dispatch

Specifications
Processor & Operating System
CPU
Rockchip PX3 cortex-A9 Quad-core, 1.6GHz
Operating System
Android 7.1.1 OS
Memory
DDR3
2GB+
EMMC
8GB
Display
7 inch WVGA 1024*600, Capacitive screen
LED backlight, wide type
400 nits
Keypad & Buttons
8 buttons
Interface ports
H9
RS232 serial ports 2 / max 4
RS485 (Optional) 1
CVBS Input 1
CANBUS (Optional) 1
USB ports 1 x 2.0 USB Device
Accessible Expansion Slots
Internal/External TF socket Micro SD card / max 128G Byte
Internal SIM card 1
I/O port
Digital input x 1 line / max 5
Digital output x 0 line / max 3 /
Audio
Speaker 2W 8ohm, Size:40mm
EAR & MIC
GPS
GPS/BD Module ATGM332D
66 channels
Sensitivity -163 dBm
LTE/WCDMA
LTE module Quectel EC25
Wireless Communication
Bluetooth(optional) Version 3.0, Class II; support hand-free call
WiFi Realtek 8189ES
RFID reader (Optional) Mifare 1 s50,s70 meet requirement ISO14443A 13.56MHZ Mifare card
Antenna
GPS Antenna External
GSM Antenna External
Physical Characteristics
Size 215*105*28mm
Weight Approximately 2kg
Environment
Main Power 10V~32V
Battery No battery
Operating Temperature
-30℃℃ to 75℃℃
Storage Temperature
-40℃℃ to 80℃℃
Humidity
5% - 90%
