Quick Details
- Model Number: BKM-Z45B(III)
- Brand Name: Biobase
- Type: Radiation Sterilization Equipments
- Design Pressure: -0.1/0.3MPa
- Temp. Range: 105-136C
- Capacity: 45L
Specifications
Biobase table Top Autoclave Sterilizer Class B BKM-Z45B(III)
Introduction:
BKMB(III) series sterilizer is an automatic high temperature and pressure rapid sterilizer which works with steam as medium.
It can be widely used in department of stomatology and ophthalmology, operating room, supply room, dialysis room
and other medical institutions. It is unpacked items, solid instruments, dental hand pieces, endoscopes, implantable
Instruments, dressing fabric and rubber tubes, etc.
Features:
Multiple security protective device
Overhead auto protective device, multiple control and protection for steam generator safe door interlock,
Double overpressure protection, electronic circuit safety device.
Automatic door
BKM-Z18/24/45B(III) series adopt auto door structure that can effectively prevent scald. BKM60/80B(III) series
Door Structure adopt multipoint stitching technology to ensure seal reliability .the door equipped with convenient
One-button switch.
High-efficiency ultimate vacuum
the sterilizer adopts high-efficiency low noise vacuum system which has excellent effects.
the ultimate vacuum value can reach -90KPa or above.
Multiple program types
the system has various programs that include: packed items, unpacked items, custom program, rapid program,
BD testing program, vacuum testing program, preheat program and drying program.
High-efficiency steam generator
BKM-Z18/24/45B(III) equipment with build-in instant steam generator. BKM-60/80B(III) equipped with build-in
Energy-storing steam generator.
Other features
0.22um high-efficiency sterilizing filter that guarantees the air is sterile and prevents repeated contamination.

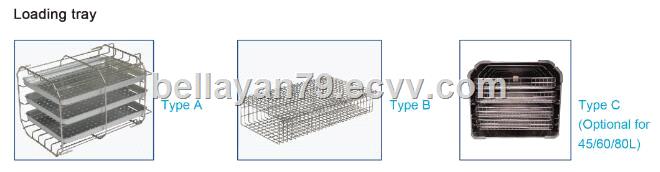

All the processes of water injection, pulse vacuum, heating up, sterilization, exhausting and drying are automatic. Model BKM-Z18B(III) BKM-Z24B(III) BKM-Z45B(III) BKM-Z60B(III) BKM-Z80B(III) Capacity 18 L 24 L 45 L 60 L 80 L Design Pressure -0.1/0.3MPa Design Temp. 144℃ Temp. Range 105-136℃ Chamber Material Medical Stainless steel 304 Standard Loading Tray Type A Type B Power Supply 110/220V±10%, 60/50Hz 220V±10%, 50/60Hz Power Consumption 2 Kw 2 Kw 3.8 Kw 7 Kw 7 Kw Chamber Size(mm) ?250*350 ?250*450 ?316*618 ?385*595 ?385*717 External Size(mm) 585*515*450 685*515*450 830*640*550 1002*730*560 1002*730*560 Packing Size(mm) 880*720*680 980*720*680 990*770*785 1160*870*795 1160*870*795 Gross Weight(kg) 70 80 135 180 200
Parameters:
