Beijing Glass Research Institute

China Manufacturer with main products: Thin Ellipse Type PMF, LaBr3(CE) Lanthanum Bromide-LBC, LaCl3(CE) Lanthanum Chloride-LLC, CeBr3 Cerium Bromide-CB, CLYC

Home >Products Catalog > Lacl3 CE Scintillator, Lacl3 CE Crystal, Lanthanum Chloride Crystal

Lacl3 CE Scintillator, Lacl3 CE Crystal, Lanthanum Chloride Crystal

FOB Price:	500.00 - 1,000.00 USD/Piece
Supply Ability:	1,000 Piece(s) per Month
Shipping:	beijing port
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Beijing in China
Packaging Details:	Al housing

Quick Details

Brand Name: LLC
Size: 25
Type: PIECE
Material: Lanthanum Chloride
Color: white

Specifications

Cerium doped Lanthanum Chloride ( LaCl3:Ce ) as a newly scintillation crystal with excellent properties, including very high light output, fast decay time and good energy resolution, can be sued in the application of Nuclear Medical Imaging (PET, SPECT), High-Energy Physics, γ-rays detecting, Security and environmental monitoring, Geological exploration and etc.
Advantages of LaCl3(CE) crystals
Superior energy resolution
Fast scintillation decay
Excellent linearity response
Excellent stability with temperature
High count rate capabilities

Scitlion is able to offer
L   CE dopant concentration: < 10% (mol%)
L   Size: Dia50 x 180mm
L   Fast delivery
L   OEM service

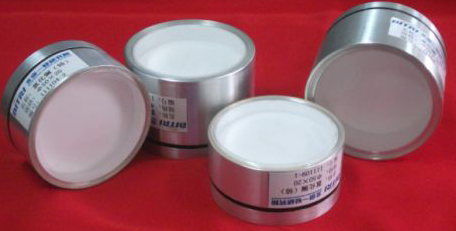

Standard sizes: dia50 x 50mm; dia50 x 25mm; dia30 x 30mm; dia25 x 25mm
Sealed materials: Aluminum alloys; Stainless steel; Titanium alloys
for the size is available upon your request
LaCl3:CE Crystal Properties:

Density	3.67 g/cm3
Melting Point	859oC
Thermal Expansion	11 x 10-6/°C along c-axis
Refractive Index	1.9
Emission Peak	350 nm
Decay Constant	28 ns
Light yield	48 photons/keVγ
Light Output	80% ~ 95%
Energy Resolution	< 5.5%
Cleavage Plane	(100)
Hygroscopic	Yes
