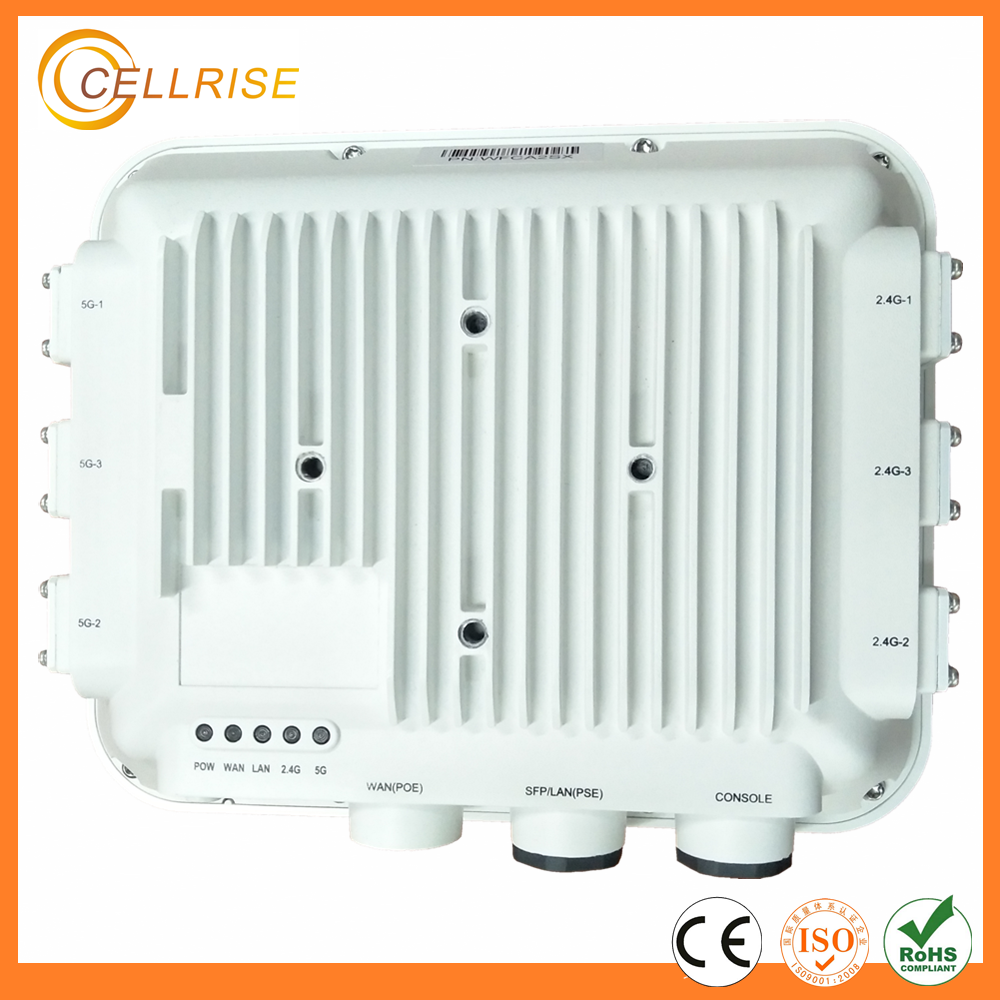

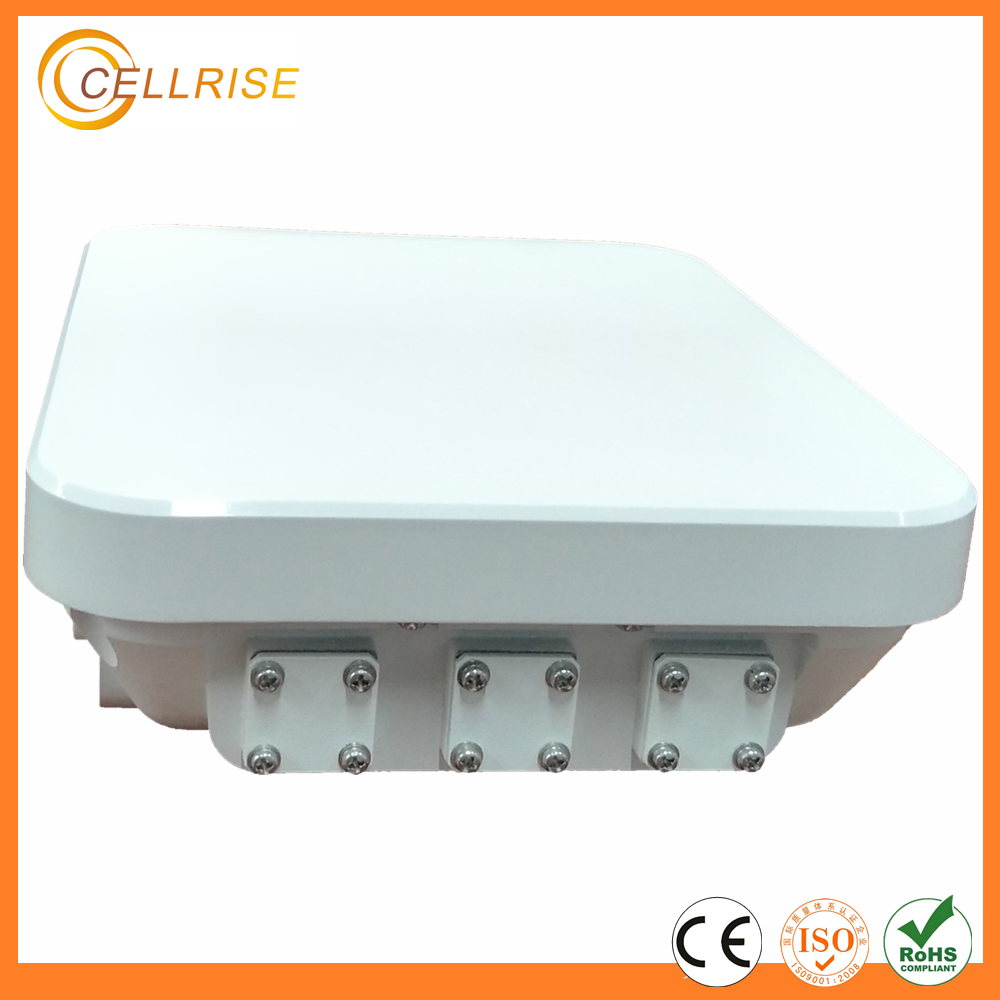

9558 High Power Dual Band 11ac IP67 Waterproof Access Point Outdoor AP

FOB Price:	120.00 - 145.00 USD/Piece
Supply Ability:	10,000 Piece(s) per Week
Shipping:	Goods can be delivered by air express or by sea; International Express such as FEDEX, UPS, DHL, TNT
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Package Type:100% safe packed in Cartons

Quick Details

Brand Name: OEM/ODM/CELL RISE
Frequency: 2.4G&5.8G
Frequency Range: 2.4G&5.8G
Polarization: 1
Weight: 2000g
Model Number: CR-AP49-9558
Keyword: dual band Outdoor Access Point
Frequency: 2.4G&5.8G
Transmission Rate: 1200Mpbs
Waterproof: IP65
WLAN Standards: 11ac/11b/ 11g /11n
Power Supply: POE/48V0.65A
Gain: Built in 10dBi or outside Antenna
Chipset: QCA9558+QCA9882+QCA8337
DDR: 128MB DDRII 16Bit 64MBX2
Name: 2.4G&5.8G wireless AP

Specifications

9558 High power dual band 11ac IP67 Waterproof Access Point Outdoor AP

Product Introduction:

this is 2.4G/5.8G dual band 11ac outdoor wireless AP with 802.11ac/b/11g/11n Wi-Fi standard, combined 1200Mbps Wi-Fi speed. Dual-frequency concurrent, support 5.8G/2.4G data exchange at the same time. Built in 10dBi MIMO antenna or external antenna is optional. Make your wireless web surfing more quickly, stable, Convenient, fast. 27dBm transmission power can guarantee to provide more widely wireless signal coverage.

Features:

Specifications:

Technical Data
SOC	QCA9558/QCA9882/QCA8337
RAM	128MB DDRII 16Bit 64MBX2
Flash	16MB SPI
Size	23919583mm
Interface	LANx1: 10/100/1000 Gigabit Ethernet support 802.3at POE supply Reset Button to QCA9558GPIO17
LED indicator	Power Supplyx1	Green		on: Power on off: Power OF
	System	Green		Active: Blinking to QCA9558 GPIO
	LANx1	Green		Link: Solid Light Active: Blinking to QCA8337 GPIO11
	WLANx1	Green		Link: Solid Light Active: Blinking 2.4G to QCA9558 GPIO13 5.8G to QCA9558 GPIO14
Power supply	POE/48V0.65A

Wireless Data
Frequency	Radio I: 11b/g/n: 2.412-2.484GHz
	Radio II: 11ac/a/n:5.18-5.24 & 5.26-5.32 & 5.5-5.7 & 5.745-5.825GHz
Wireless Setting	Working mode:AP/WDS/Repeater Wireless mode:11ac/11a/11b/11g/11n Channel Selection according different country Bandwidth:20MHz,40MHz Transmission speed:2.4GHz: 11n only, 11b/g/n mix, 11b only, 11b/g, 11g only 5GHz: 11n only mode, 11a/n mix mode, 11a only Mode, 11ac only mode
Receiver Sensitivity	802.11b -95dBm @ 1Mbps -91dBm @ 11Mbps 802.11g -94dBm @ 6Mbps -78dBm @ 54Mbps 802.11n (2.4GHz) -90dBm @ MCS0 -73dBm @ MCS7 -87dBm @ MCS8 -70dBm @ MCS15			802.11a -94dBm @ 6Mbps -78dBm @ 54Mbps 802.11n (5GHz) -90dBm @ MCS0 -73dBm @ MCS7 -87dBm @ MCS8 -70dBm @ MCS15
Output power	802.11b		27dBm@1Mbps-11Mbps
	802.11g 802.11a		27dBm@6Mbps-9Mbps/12Mbps-18Mbps/24Mbps -36Mbps/48Mbps -54Mbps
	802.11n 2.4G 802.11n 5.8G		27dBm@MCS 0-1 / 8-9, MCS 2-3 / 10-11, MCS 4-5 / 12-13, MCS 6-7 / 14-15
Antenna	Built in 10dBi MIMO Antenna or external antenna as optional
Software Data
System Requirement	System		Windows7, 98, ME, NT, 2000, XP MAC OS X(10.4)
	Management style		WEB(http1.0 / 1.1)
	Support browser		Microsoft IE 6.0 or above, Firefox 2.0 or above
802.11 mode selection	802.11b/g/n 802.11an/802.11ac
Channel Setting	Manual / Auto
Transmission speed set	Manual / Auto
Output power Control	Custom output Power with dBm
Power saving Mode	Wireless power Saving mode controllable
Multi-SSID	, Each SSID has a separate WiFi settings and Security settings
Security	WEP: WPE(64/128bit) WPA/WPA2: TKIP/AES MAC: Provide 30 MAC address filtering 802.1x Certification: MD5/ TLS/ TTLS, PEAP 802.1x Support: TTLS, PEAP
LAN Setting	IP (check validity and DHCP server IP range) MAC
VLAN	Multi SSID VLNA	Base of 802.1Q VLAN of SSID
