Hebei Diaozhuo Wire Mesh Equipment Co., Ltd.
China Manufacturer with main products: Gabion Mesh Machine |
Welded Wire Mesh Machine In China
| Supply Ability: | 10 Set(s) per Month |
|---|---|
| Shipping: | Tianjin port |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | wooden case |
Quick Details
- Type: Other
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: ISO
- Weight: 100
- Voltage: 220
- Brand Name: Hebei Diaozhuo Wire Mesh Equipment Co.,Ltd
- Usage: automatic
Specifications
Details

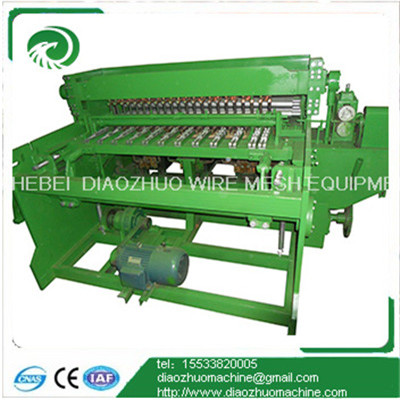

the machine is provided with a thick-steel-plate frame, a vertical gearbox and an integrated clutching weft feeding mechanism, and
Straightens wires in an enclosed mode. Electromagnetic stepless speed regulation is adopted, and grids are firm and uniform; wires
Are firmly welded in a three-phase power electronic control mode, and the machine can be finely adjusted and controlled.
Technical Parameters
| Model | Welding width | Aperture | Wire diameter | Speed (meshes/min) | Coiled mesh length | Dimensions(m) |
| DCD-1 | 2-4 | 1/2-1 | 0.65-2.0 | 50 (Radial direction) |
120-400m | 1.5*2.3*1.6 |
| 1/3 | 0.65-1.2 | |||||
| 3/8-3/4 | 0.65-1.5 | |||||
| DCD-2 | 2'-5' | 1/2-1 | 0.65-2.0 | 50 (Radial direction) |
120-350m | 1.6*2.5*1.6 |
| 1/3 | 0.65-1.2 | |||||
| 3/8-3/4 | 0.65-1.5 | |||||
| DCD-3 | 4'-6' | 3/8-3/4 | 0.65-1.5 | 50 (Radial direction) |
120-300m | 1.7*3.0*1.8 |
| 1/3 | 0.65-1.2 | |||||
| 3/8-3/4 | 0.65-1.5 | |||||
| DCD-4 | 4'-7' | 1/2-1 | 0.65-2.0 | 50 (Radial direction) |
120-300m | 1.8*3.5*1.9 |
| 1/3 | 0.65-1.2 | |||||
| 3/8-3/4 | 0.65-1.5 |
| Model | Welding width | Aperture | Wire diameter | Speed (meshes/min) | Coiled mesh length | Dimensions(m) |
| DCD-1 | 2-4 | 1/2-1 | 0.65-2.0 | 50 (Radial direction) |
120-400m | 1.5*2.3*1.6 |
| 1/3 | 0.65-1.2 | |||||
| 3/8-3/4 | 0.65-1.5 | |||||
| DCD-2 | 2'-5' | 1/2-1 | 0.65-2.0 | 50 (Radial direction) |
120-350m | 1.6*2.5*1.6 |
| 1/3 | 0.65-1.2 | |||||
| 3/8-3/4 | 0.65-1.5 | |||||
| DCD-3 | 4'-6' | 3/8-3/4 | 0.65-1.5 | 50 (Radial direction) |
120-300m | 1.7*3.0*1.8 |
| 1/3 | 0.65-1.2 | |||||
| 3/8-3/4 | 0.65-1.5 | |||||
| DCD-4 | 4'-7' | 1/2-1 | 0.65-2.0 | 50 (Radial direction) |
120-300m | 1.8*3.5*1.9 |
| 1/3 | 0.65-1.2 | |||||
| 3/8-3/4 | 0.65-1.5 |
