QFW-3000VI FRPM Pipe (Reinforced Plastics Mortar Pipe) Production Line

FOB Reference Price: $ 200000
Wholesale: ≥1 Set(s)
Supply Ability: 1 Set(s) per Month
Shipping: SHIP
Payment Terms: T/T
Update Time: 2019/1/24
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Hebei in China
Packaging Details: in pallet

Quick Details

  • After-sales Service Provided: Overseas third-party support available
  • Warranty: 12 MONTHS
  • Brand Name: JIUBO
  • Application: Drain Pipe
  • Condition: New
  • Certification: ISO9001, ISO14001, OHSAS18001
  • Power(W): 193600
  • Type: Pipe Production Line
  • The maximum diameter: DN3000mm
  • length of the pipe: 12000mm
  • The productivity: 1000kg/h
  • The maxi speed of conveying roving: 90m/min

Specifications

Quick Information
  • Place of Origin:China
Description

Product details

1.the QFW-3000VI RPM Pipe (Reinforced Plastics Mortar Pipe) Production Line has six parts, such as inner layer manufacturing machine, computer control adding mortar-winding machine, curing station, repairing machine, mould unloading machine and resin mix station. Its controlling center has been adopted the Taiwan's advanced STD industrial control computer. If the parameter of the wound products being inputted the computer, the design of the linearity for winding of the product will be finished automatically, then controlling the combined movements between the mound rolling speed and the running of the carriage. The pipes produced by the adding mortar-winding machine can decrease the cost and improve the stiffness through adding the mortar without bad influences upon the leak-proof layer and the structure layer.
the RPM pipe's cost has decreased 40% than the common FRP pipe; the stiffness has been improved greatly. It has many advantages, such as lightweight, anti-corrosion, lower roughness and proper price. It can be widely used in water supply and drainage, agricultural irrigation, petrochemical industry, ocean development, sewage treatment, etc. the production line annual capacity is 5000t, and reasonable structures, latest design, operate easily, high-grade automation are its characteristics. It got the good valuation from the clients.


the main parameters

  1. the total power: 193.6kw
  2. the maximum diameter can be manufactured: DN3000mm
  3. the effective length of the pipe: 12000mm
  4. the productivity: 1000kg/h
  5. the baking board's temperature of curing station: 105~160
  6. the maxi speed of conveying roving: 90m/min
  7. the maxi width of roving sheet: 200mm
  8. the maxi speed of sand conveyance: 100kg/min
  9. the maxi mould-unloading force: 83t
 10. the rated drawing force of the capstan: 5t
 11. the rated lifting force of the supporting pipe trolley: 40t
 12. the rated pressure of the hydraulic system: 16Mpa
 13. the central height of mould-unloading machine: 2000mm
 14. the central height of the other single machine: 1500mm

above description is for common application machine, our machine can produce pipe diameter range DN15-DN4000mm, it's customized as per customers' requirements.




Price
  • Price Condition:FOB
  • Price:USD200000 / set
  • Delivery Port:Tianjin
Packaging & Delivery
  • Packing:pallet
  • Delivery Lead Time:10-30 days
  • Minimum Order:1set
  • Supply Ability:1 set per month
Product Image

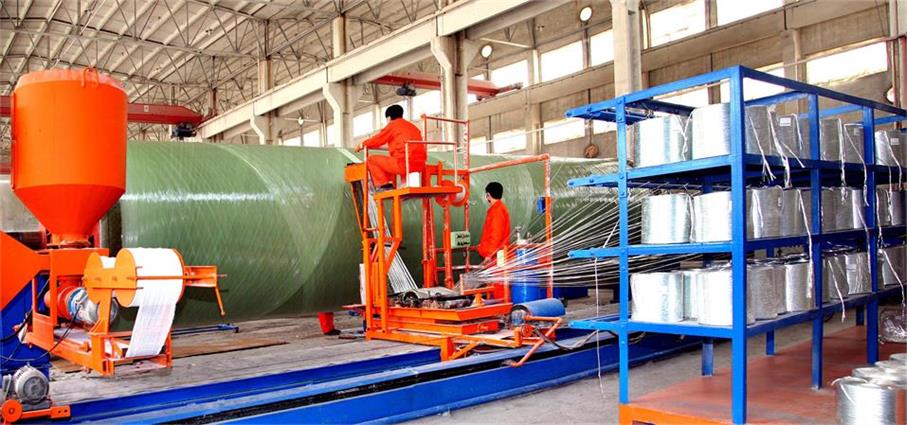

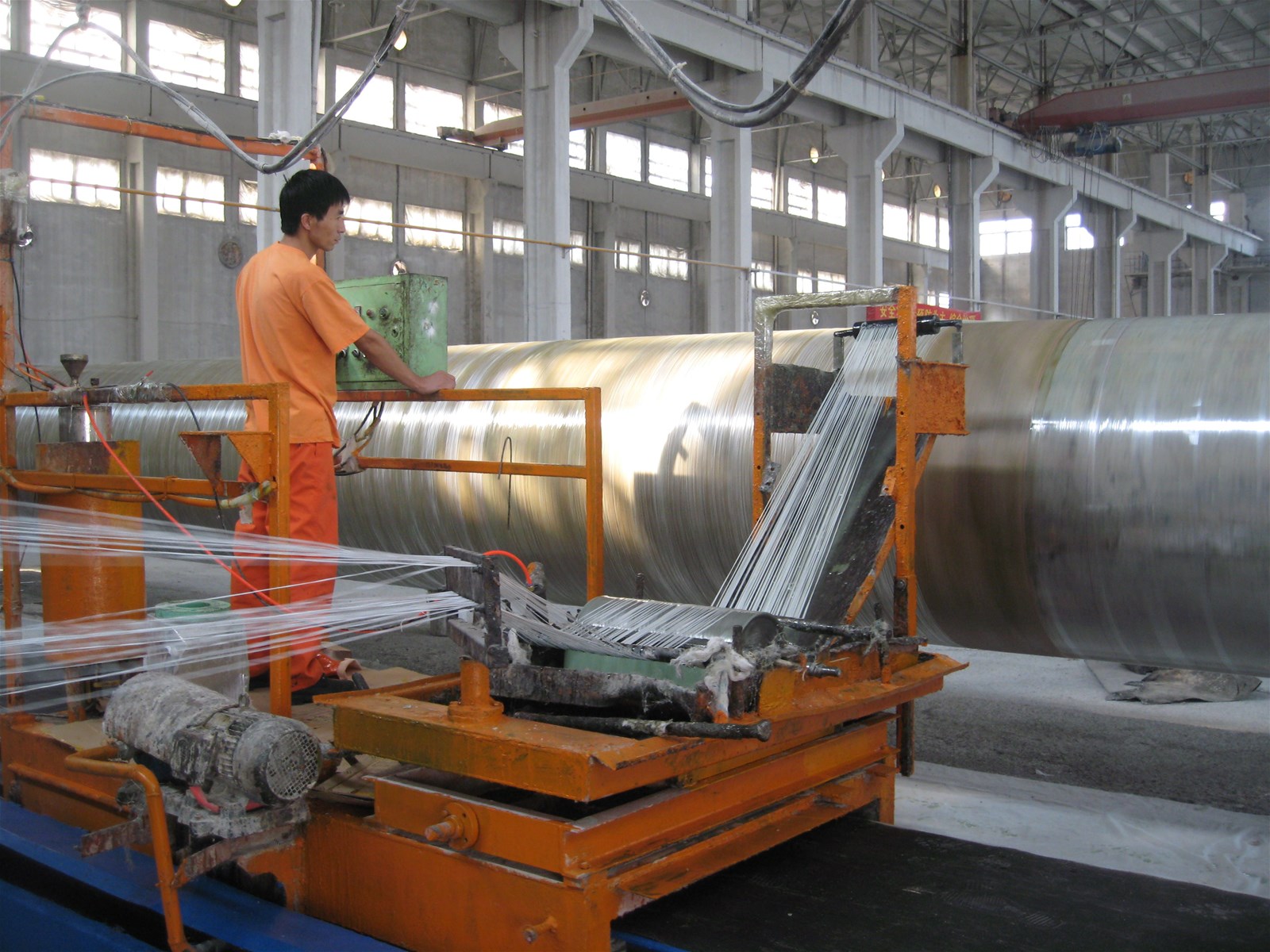

QFW3000VI FRPM Pipe Reinforced Plastics Mortar Pipe Production Line
