Diamond Electroplated Abrasive Belts

Specifications

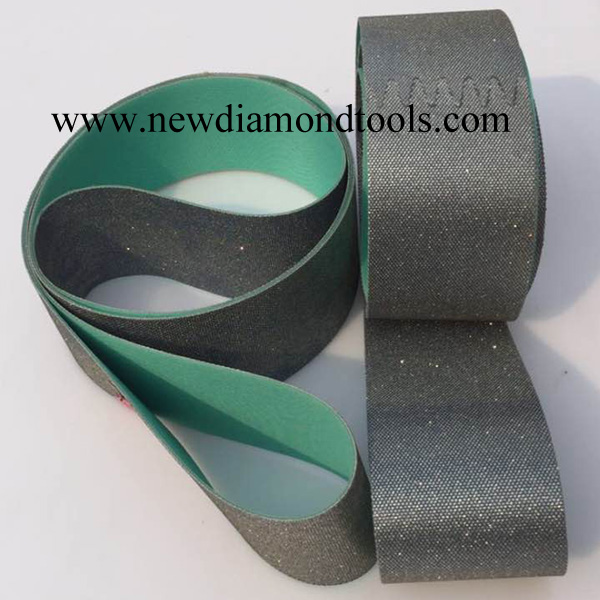

Diamond Electroplated Abrasive Belts

Diamond electroplated abrasive belt has nickel-plated as bond agent, and made from diamond powder. Diamond electroplated abrasive sanding belts consists of the backing material, metal base and arranged diamond coating. Backing material and flexible metal substrate bonded into a kind of ring superhard coated abrasive.

Grinding Characteristics of Diamond Electroplated Abrasive Belt

1.1 Compared with ordinary abrasive belt

Diamond electroplated abrasive belt has the characteristics of hardness of superhard material and the softness of the coated abrasive. the working layers is arranged, making the gap between the small units of the working layer larger, there will be a bigger chip removing space, it is good for cooling, improving the processing quality, flexible of sanding belt and chip removal capacity. It is low noise and little dust when using.

1.2 Compared with diamond grinding wheels
Diamond grinding wheel is a rigid abrasive tool. In the grinding process, there are not good self-sharpening and easy to chip. Especially when automotive wind safety glass and other material need to be processed as curved surface of hard and brittle materials, if use diamond electroplated abrasive belt can improve the grinding feed rate and working efficiency. and effectively solve the problem of glass chipping and maintain the original shape of the surface very good.

1.3 Compared with diamond resin belt

Diamond resin belt has resin bonded, also has double advantages of softness of a traditional coated abrasive and high hardness of the diamond. but when grinding, the heat will be accumulated in the diamond, it the heat will not be derived immediately, the temperature will be increased immediately, resulting the bond agent melting, the diamond will fall, and the service life is short. So diamond resin belt must grind by adding water to cooling, and the cost-effective of that is worse than diamond electroplated abrasive belt.

Application of Diamond Electroplated Abrasive Belt

Diamond electroplated abrasive belt can be widely used in stone, glass, ceramics, monocrystalline silicon, polycrystalline silicon, synthetic materials, hard alloy, aluminum alloy and other hard and brittle material complex surface grinding processing.

Specification
Grit:40#-5000#
Width:5-30mm
Length: 150mm-5000mm
