Evolux Lighting Co., Ltd.
China Manufacturer with main products: Fiber Optic 12 Color Pigtail, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Connector, Fiber Optic Patch Cord, Fiber Optic PLC... |

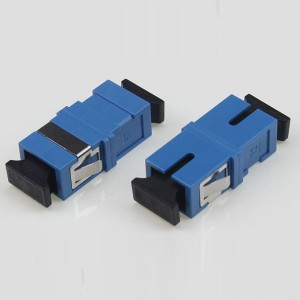

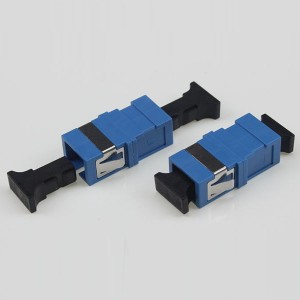

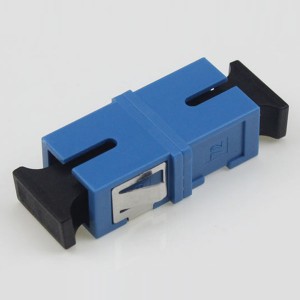

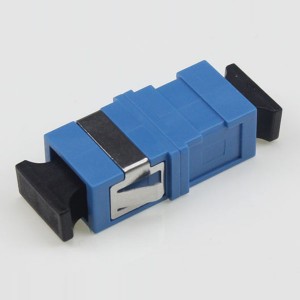

SC SM SX Adapter without Ear SC SM SX Adapter without Ear
| FOB Price: | 0.50 - 99999.00 USD/Piece |
|---|---|
| Supply Ability: | 10,000 Piece(s) per Month |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Brand Name: Fiber optic adapter
- Wavelength: 0
- Data Rate: 0
- warranty: 0
- Connector: LC
Specifications
SC SM SX Adapter without ear
A fiber optic adapter or coupler is a special passive component designed to mate or connect two ends of a fiber optic cable with high precision. Fiber optic adapters mate two ends of different fibers optic connectors, achieving the conversion between different connectors FC, SC, ST,LC, MTRJ, MPO, E2000 and so on. They are widely used for Optical Distribution Frame (ODF),fiber optic communication device and equipment, with excellent performance, good stability. We can also call them Fiber optic Flange or Coupler.
| Connector Type | SC |
| Polish Type | UPC |
| Fiber Mode | Single mode |
| Fiber Counts | Simplex |
| Insertion Loss | 0.2dB |
Specification
Parameter |
Unit | LC,SC,FC,ST,MTRJ,MPO | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss(Typical) | dB | 0.2dB | 0.2dB | 0.2dB | 0.2dB |
| Return Loss | dB | 45 | 50 | 60 | 30 |
| Exchangeability | dB | 0.2dB | |||
| Repeatability | dB | 0.2dB | |||
| Durability | Time | >1000 | |||
| Operating Temperature | -40~75 | ||||
| Storage Temperature | -40~85 | ||||
Features
Accurate Mechanical Dimensions
Low Insertion Loss,high return loss
Excellent compatibility
Excellent repeatability
Excellent Temperature stability
No Polishing, no Epoxy
More Convenient to install
Application
Telecom, Access Network
Optical Fiber CATV
Terminal of the Devices and Multimedia
Testing and Medical Devices
Optical Fiber LAN and Access Network
Industry and Military Applications
