FC UPC SM SX in-Line Adjustable Attenuator
| FOB Price: | 0.50 - 99999.00 USD/Piece |
|---|---|
| Supply Ability: | 10,000 Piece(s) per Month |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Brand Name: Fiber Attenuators
- Wavelength: SM:1260-600nm, or 1310/1550nm MM:850nm,1310nm
- Data Rate: 0
- warranty: 0

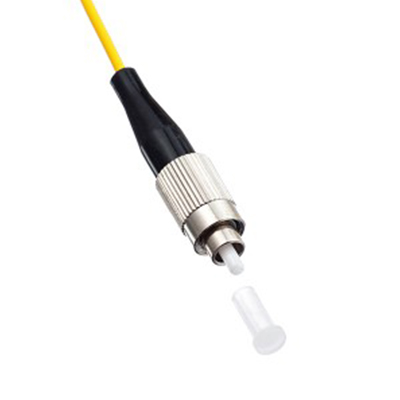

- Connector: FC
Specifications

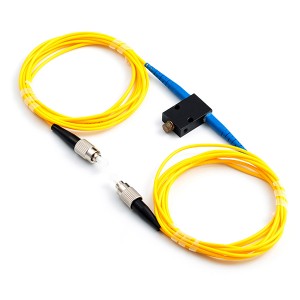

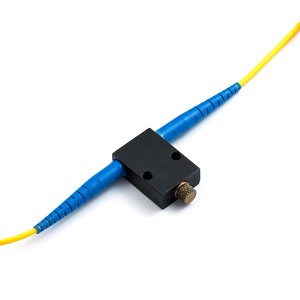

FC UPC SM SX in-line Adjustable attenuator
Fiber Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal. It is often used to limit the optical power received by the photo detector to within the limits of the optical receiver.
| Connector Type | FC |
| Polish Type | UPC |
| Fiber Mode | Single mode |
| Connector Gender | in-line Adjustable |
| Sleeve | Ceramic |
Specification
| Parameters | FC,SC,LC,ST,MU,DIN,E2000,MTRJ,Hybrid |
| Attenuation Range | 0dB~30dB |
| Attenuation Range | SM:1260-600nm, or 1310/1550nm |
| MM:850nm,1310nm | |
| Return Loss | PC:50UPC:55APC:60 |
| Attenuation Tolerance | 1.0(11-30dB) |
| Working Temperature | -25~+75 |
| Storage Temperature | -40~+85 |
Features
Connector type: FC, SC, ST, D4
Female-male type and adapter type available
Fixed and adjustable type available
Wavelength: 1,310nm; 1,550nm
Attenuation: 1dB 30dB or as requested

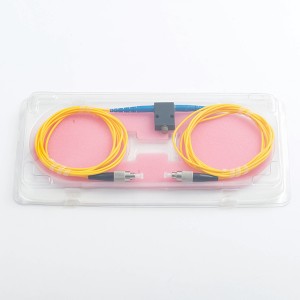

Type: flange type, insertion typePacking: Plastic bag, carton
Application
Fiber optical telecommunication system
Fiber optical CATV
Fiber optical sensor
Testing equipment
Dense Wavelength Division Multiplex (DWDM) system
Optical add-drop multiplexers (OADM)
