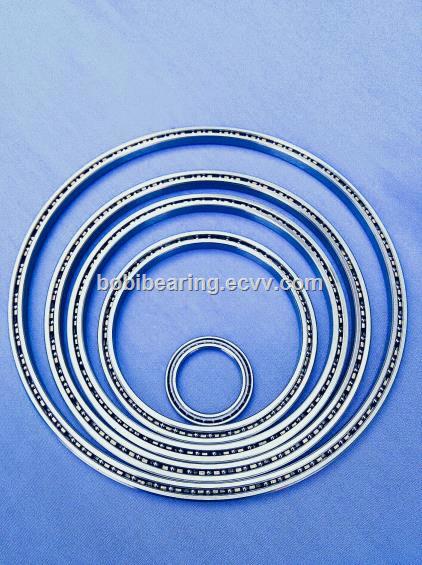

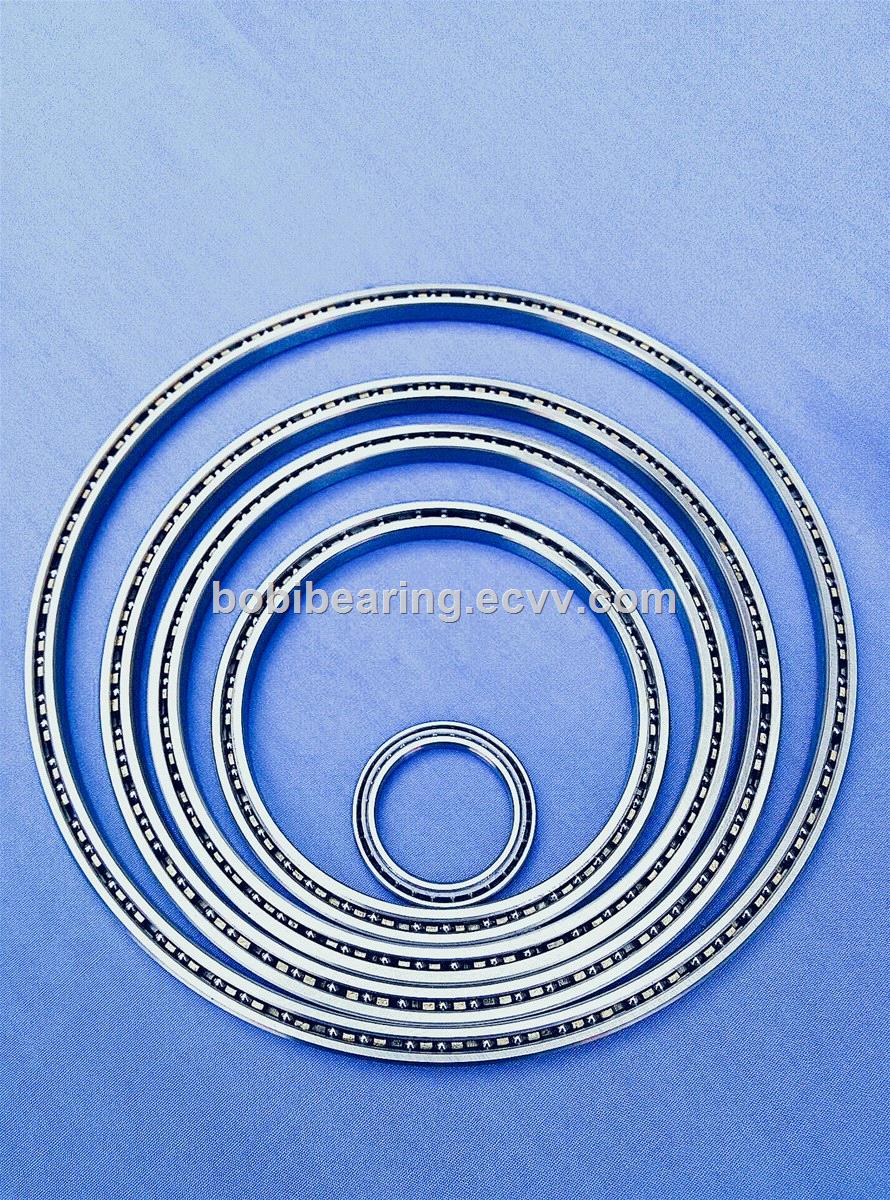

Thin Section Bearing for Optical & Scanning Instrument

FOB Price:	200.00 - 210.00 USD/Set
Supply Ability:	2,000 Set(s) per Month
Shipping:	Sea or Air
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, Eastern Europe, Southeast Asia, Eastern Asia, Western Europe
Place of Origin:	Henan in China

Quick Details

Type: Ceramic Ball
Outside Diameter: 4.0 inch
Bore Size: 3.5 inch
Brand Name: NERT
Type: Ball
Material: 52100
Model Number: KA035XP0

Specifications

Our products contained seven series of open types and five Series of sealed types, with bore diameter ranging from 1 inch to 40 Inch and cross section ranging from 0.1875 0.1875 inch to 1.000 1.000 inch. Three kinds of Open Thin Section Bearings are Available: Radial contact (C Type), Angular contact (A Type) and Four-point Contact (X Type). Two kinds of Sealed Thin Section Bearings are available: Radial contact (C Type), and Four-point contact (X Type).
Thin Section bearing for optical and scanning instrument

Model	NKA Series
	Dimension			Basic Load (N)		Weight	Interchange
	(inch/mm)			Basic Cap		Kg
	d	D	H	Cor	Cr		NTN	KAYDON	INA
NKA020CPO	2.000	2.500	0.25	3020	1420	0.048	KRA020	KA020CPO	CSCA020
	50.800	63.500	6.35
NKA025CPO	2.500	3.000	0.25	3690	1600	0.059	KRA025	KA025CPO	CSCA025
	63.500	76.200	6.35
NKA030CPO	3.000	3.500	0.25	4400	1820	0.068	KRA030	KA030CPO	CSCA030
	76.200	88.900	6.35
NKA035CPO	3.500	4.000	0.25	5070	2000	0.082	KRA035	KA035CPO	CSCA035
	88.900	101.600	6.35
NKA040CPO	4.000	4.500	0.25	5730	2130	0.090	KRA040	KA040CPO	CSCA040
	101.600	114.300	6.35
NKA042CPO	4.250	4.750	0.25	6090	2220	0.095	KRA042	KA042CPO	CSCA042
	107.950	120.650	6.35
NKA045CPO	4.500	5.000	0.25	6400	2310	0.100	KRA045	KA045CPO	CSCA045
	114.300	127.000	6.35
NKA047CPO	4.750	5.250	0.25	6760	2400	0.104	KRA047	KA047CPO	CSCA047
	120.650	133.350	6.35
NKA050CPO	5.000	5.500	0.25	7070	2490	0.109	KRA050	KA050CPO	CSCA050
	127.000	139.700	6.35
NKA055CPO	5.500	6.000	0.25	7780	2620	0.118	KRA055	KA055CPO	CSCA055
	139.700	152.400	6.35
NKA060CPO	6.000	6.500	0.25	8450	2800	0.130	KRA060	KA060CPO	CSCA060
	152.400	165.100	6.35
NKA065CPO	6.500	7.000	0.25	9110	2930	0.140	KRA065	KA065CPO	CSCA065
	165.100	177.800	6.35
NKA070CPO	7.000	7.500	0.25	9780	3070	0.150	KRA070	KA070CPO	CSCA070
	177.800	190.500	6.35
NKA075CPO	7.500	8.000	0.25	10450	3200	0.160	KRA075	KA075CPO	CSCA075
	190.500	203.200	6.35
NKA080CPO	8.000	8.500	0.25	11110	3330	0.172	KRA080	KA080CPO	CSCA080
	203.200	215.900	6.35
NKA090CPO	9.000	9.500	0.25	12490	3600	0.200	KRA090	KA090CPO	CSCA090
	228.600	241.300	6.35
NKA100CPO	10.000	10.500	0.25	13820	3870	0.227	KRA100	KA100CPO	CSCA100
	254.000	266.700	6.35
NKA110CPO	11.000	11.500	0.25	15160	4130	0.236	KRA110	KA110CPO	CSCA110
	279.400	292.100	6.35
NKA120CPO	12.000	12.500	0.25	16540	4360	0.254	KRA120	KA120CPO	CSCA120
	304.800	317.500	6.35
