Shenyang Zhanhongtu Machinery & Equipment Co., Ltd.
China Manufacturer with main products: Vacuum Film Press Machine |
One Sash Every 2min. Quality Vacuum Film Press Machine
| FOB Price: | 1.00 - 2.00 USD/Set |
|---|---|
| Supply Ability: | 30 Set(s) per Month |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Liaoning in China |
| Packaging Details: | Iron frame with solid plastic film around machine |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Voltage: as required
- Brand Name: ZHT
- Type: Hot Press
- Condition: New
- Certification: CE
- Weight: 2T
- Dimension(L*W*H): 8800mm x1500mm x1600mm
- Power(W): 15KW
- Model Number: TM2480A
- Pressure: Negative pressure no less than -0.095Mpa
- Application: door and cabinet
Specifications

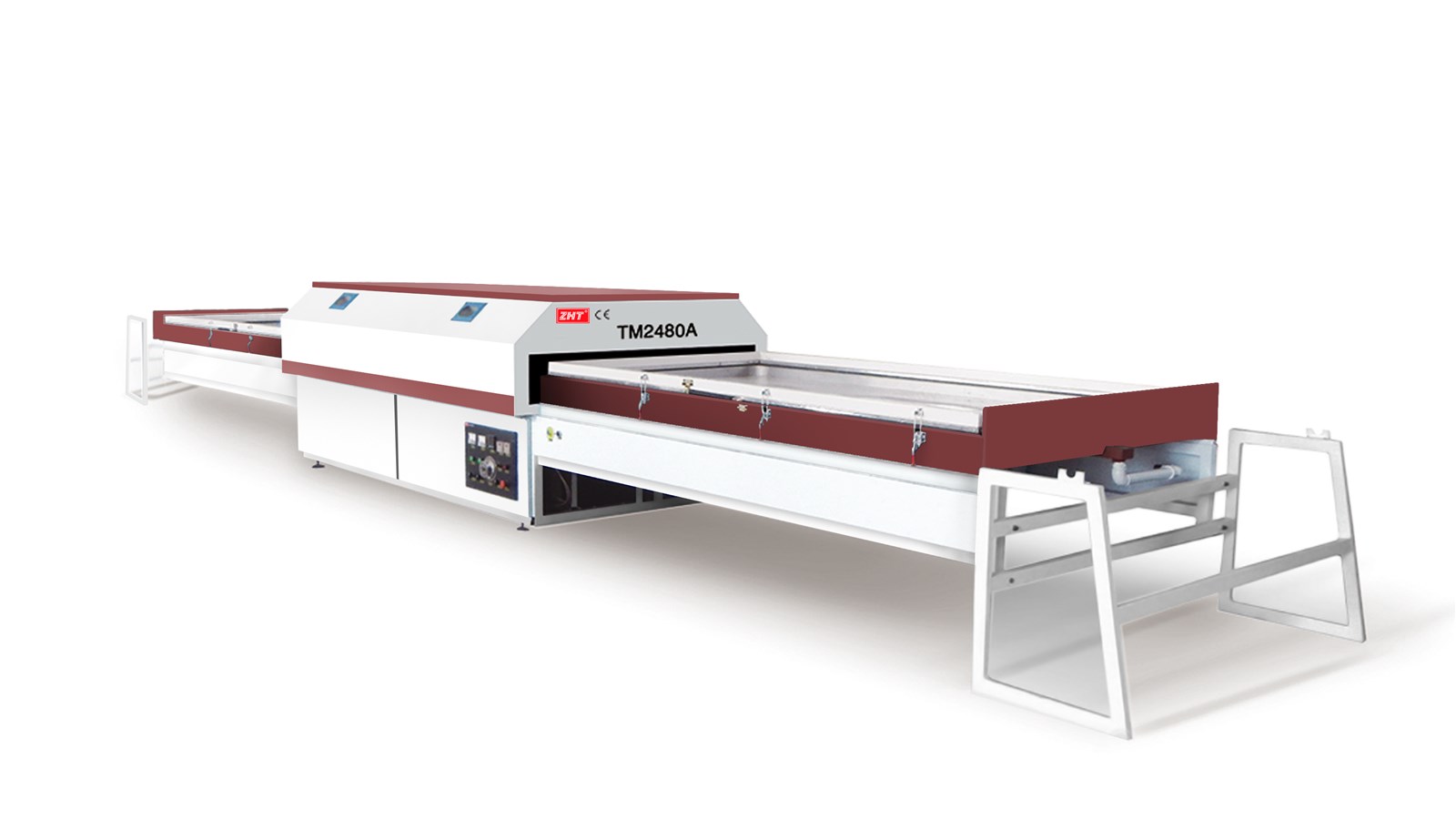

TM2480A PVC foil vacuum membrane press machine
Function
Various PVC film can be pasted on furniture, cabinets, acoustics, process doors, decoration wallboard, etc.,and can be used for heat transfer film and veneer.
Features
the machine is operated manually, the heating chamber is not moving, the work table pushes in and out!the vacuum control USES the electric contact vacuum gauge and automatically controls the vacuum pressure.the microcomputer temperature controller can automatically search the temperature change speed and adjust the heating speed to control the temperature accurately.
the machine is standard equipped with domestic top 2X series vacuum pumps, with good stability and easy maintenance.
Technical parameter
Dimensions |
8800mm x1500mm x1600mm |
Bed dimension |
2300mm x1100(1300)mm |
Rated working pressure |
NEgative pressure -0.095Mpa |
Total power |
15KW |
Actual power consumption |
about 5KW |
Total weight |
2T |
