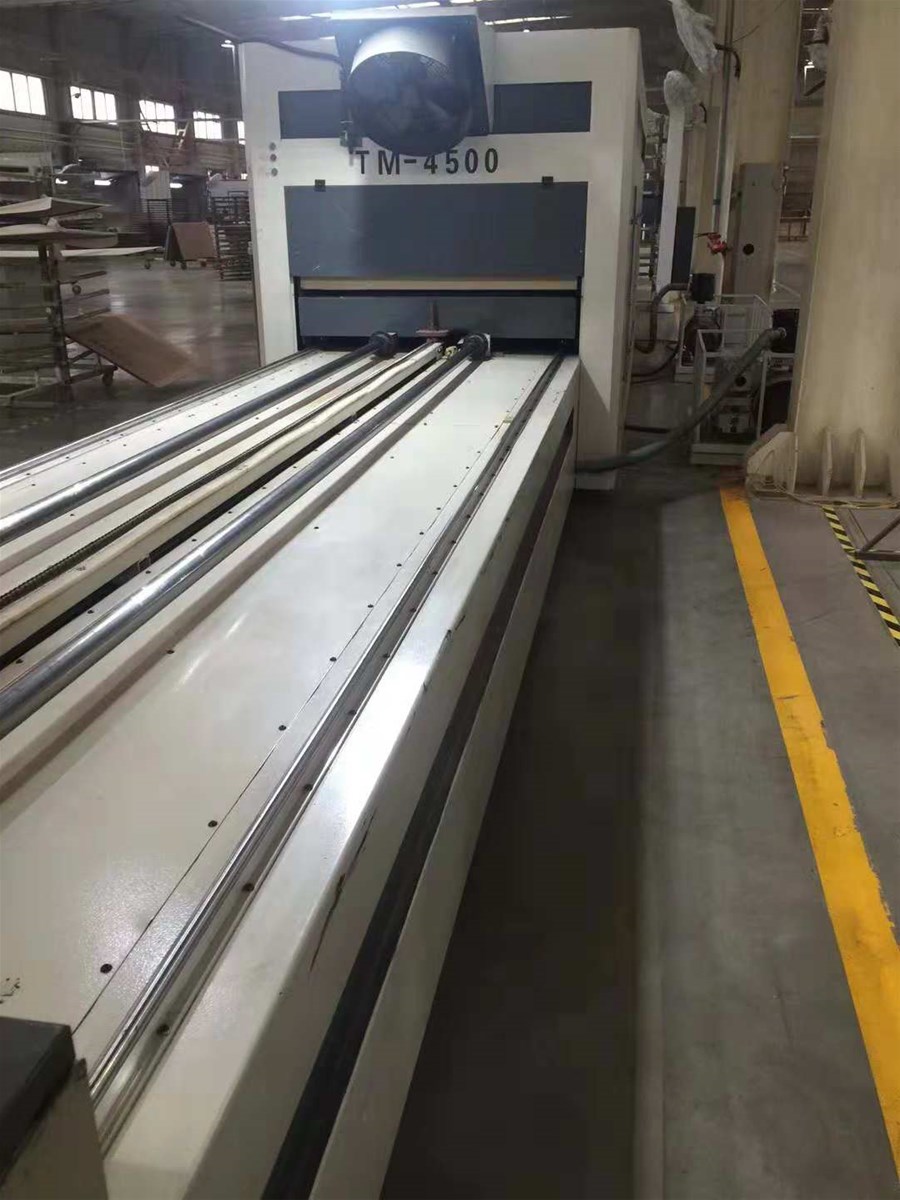

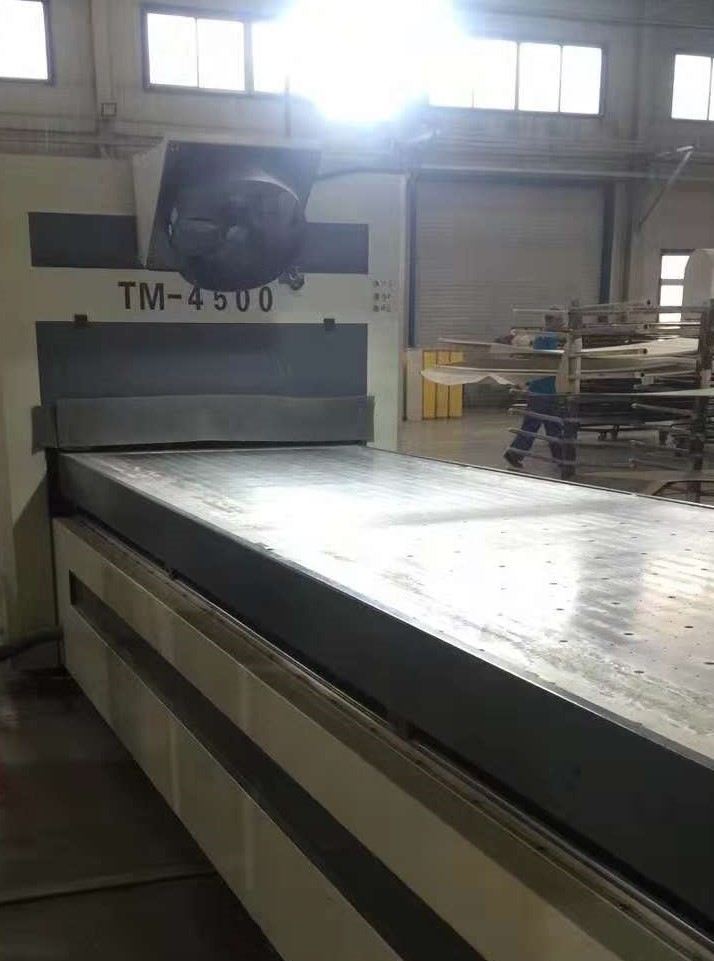

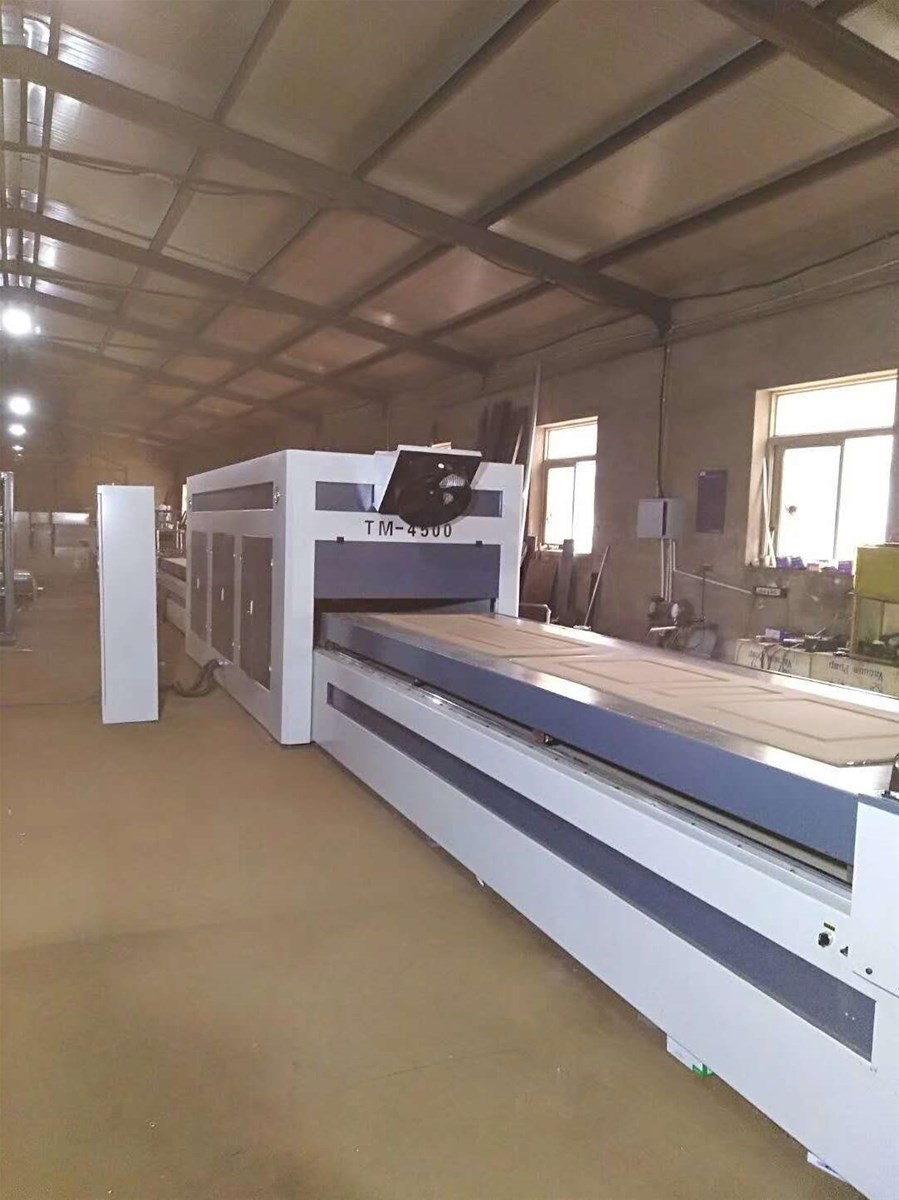

Popular & First Rate Vacuum Film Press Machine TM4500 for Door Lamination

FOB Price:	1.00 - 2.00 USD/Set
Supply Ability:	30 Set(s) per Month
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Professional clothes Topper press machine

Price:

Min. Order:
Automatic shoes machine Hydraulic Cross Type So...

Price:

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Liaoning in China
Packaging Details:	Iron frame with solid film around machine

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Voltage: According to client's requirement
Brand Name: ZHT
Type: Hot Press
Condition: New
Certification: CE
Weight: 7T
Dimension(L*W*H): 15500mm*2100mm*2000mm
Power(W): 42.4KW
Model Number: TM4500
Pressure: No more than -0.095Mpa
Application: door

Specifications

Popular and first rate vacuum film press machine TM4500 for door lamination

TM4500 Film Laminating Machine for PVC Paint-free Door

Features:

1. High automation:

the machine is highly automated, easily operated with automatic feeding. Items of processing time, temperature during the process of manufacture, as well as vacuum degree shall be in the control of digital display instrument.

2. Good heat conductivity:

Aluminum plate shall be used for heating system, which is of high heat conduction for higher rate of finished products.

3. Innovative design:

the machine TM4500 comes out by our technicians out of properties of PVC film to solve the issue of failure to form and to repair one time by ordinary negative press machine.

4. High configuration:

the operation of drive system shall be done by chain drive, double reduction gear applied for feeding to avoid piece malposition, which shall lead to product waste; Electrical devices that imported with stable property shall be used for electrical system, equipped with two operating programs of high automation.

5. High working efficiency:

Heating by special craftsmanship on large bench, which highly improve product efficiency and save cost.

Technical parameter

Dimensions	15500mm2100mm2000mm
Bed dimension	4500mm*1200mm
Total power
Actual power consumption	13KW
Total weight	7T
Vacuum	-0.095Mpa
