Shenyang Zhanhongtu Machinery & Equipment Co., Ltd.
China Manufacturer with main products: Vacuum Film Press Machine |

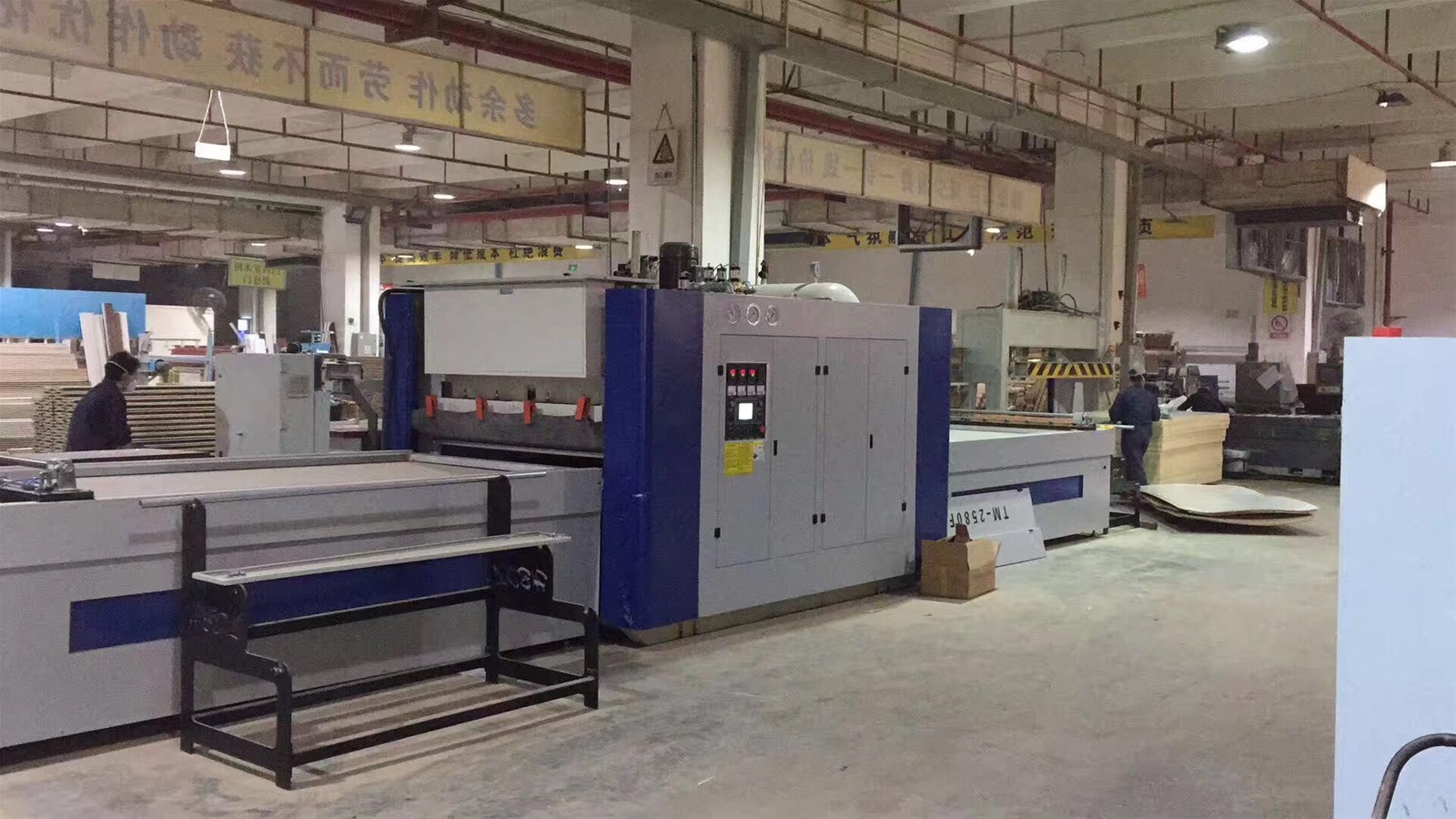

Full Automation Double Station Vacuum Membrane Hot Press Machine
| FOB Price: | 1.00 - 2.00 USD/Set |
|---|---|
| Supply Ability: | 30 Set(s) per Month |
| Shipping: | FOB Dalian |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Liaoning in China |
| Packaging Details: | Iron frame with solid film around machine |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Voltage: According to client's requirement
- Brand Name: ZHT
- Type: Hot Press
- Condition: New
- Certification: CE
- Weight: 14T
- Dimension(L*W*H): 11200mm*2480mm*2150mm
- Power(W): 28KW
- Model Number: TM2580F
- Pressure: Negative pressure no less than -0.095Mpa
- Application: door,furniture and cabinet
Specifications
TM-2580F Vacuum Upper Pressure Membrane Machine
Specification
FEatures
1. Fast speed: the working period of ordinary workpiece is less than 2 minutes after it enters the main machine, which is 2-4 times of the efficiency of common positive and negative pressure membrane pressure equipment.
2. Good effect: the product processed by common film has clear groove, no open side, bubbling, no color difference, and high light working surface has strong adhesion, and the effect reaches the international leading level.
3. Low energy consumption: the total power of the machine is 18KW, which is one half of that of the peer equipment; the main heating starting power is 15KW, and the average power consumption is 8KW/h.
4. High configuration: the key part of the machine adopts original parts from Germany, Japan and Taiwan, which is high configuration and stable performance.
Technical parameter
Dimensions |
11200mm2480mm2150mm |
Bed Dimension |
2560mm1270mm |
Maximum machining height |
50mm |
Rated Working Pressure |
Positive Pressure0.6Mpa Negative Pressure-0.095Mpa |
Total power |
28Kw |
Actual power consumption |
about 10kw |
Total weight |
14T |
Power |
380V 50HZ |
