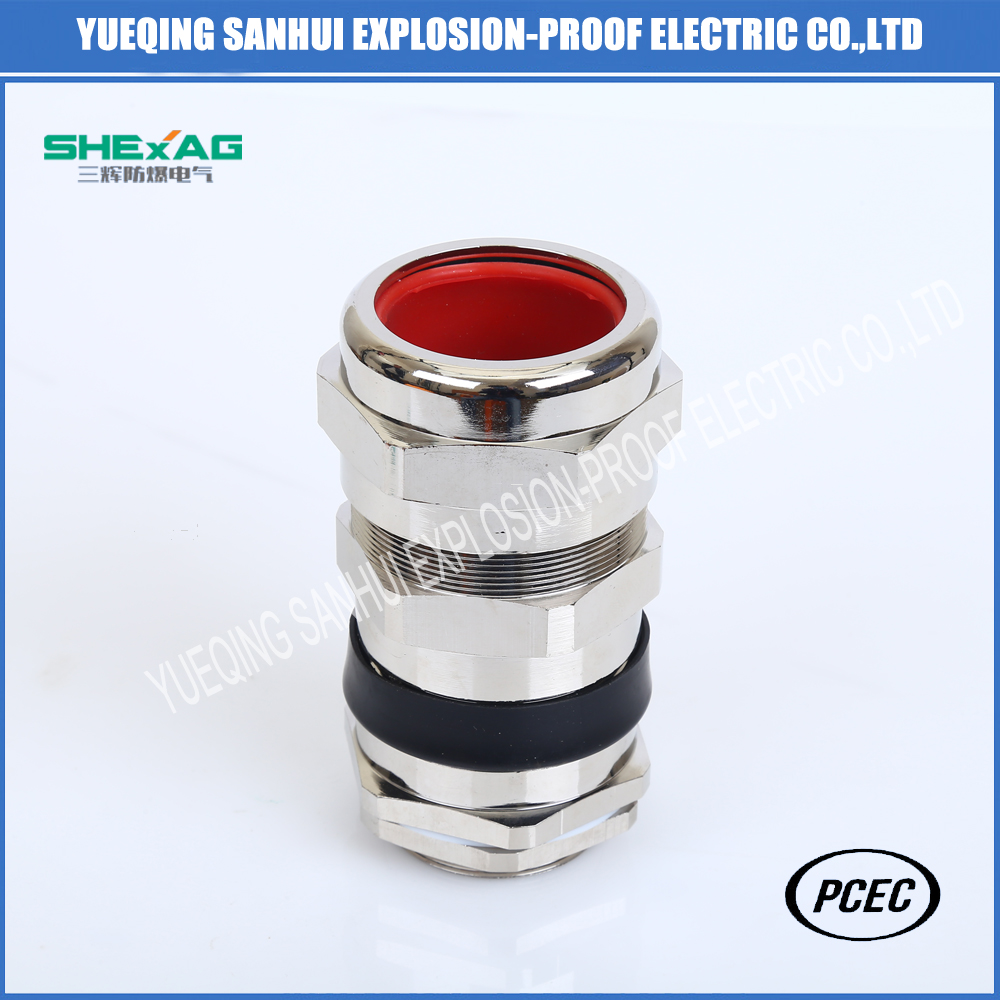

EX Cable Glands Supplier China & Explosion-Proof Cable Gland
| FOB Price: | 6.00 - 35.00 USD/Bag |
|---|---|
| Supply Ability: | 100,000,000 Bag(s) per Month |
| Shipping: | Ningbo/Shanghai |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | 8-16pcs/bag |
Quick Details
- Brand Name: SANHUI
- Size: 20
- Type: SH-BDM-3
- Material: SS 304 316,Brass
- Color: metallic
- Model Number: SH-BDM-3
Specifications
the following example is for you reference.
Features:
Explosion mark:Exd IIC GB/Exe II GB/Ex tD A21 IP68
Fireproof grade:V0(UL94)
Protection grade:IP68-10 bars(screwed-on Part)
Technical details:
Ambient temperature:Static from -60to 100,short up to 120
Dynamic from -20to 80,short up to 100without halide.
Operation method of useage:
Environment condition:high-temperature and Atrocious environment.
Package:
Export standard packing

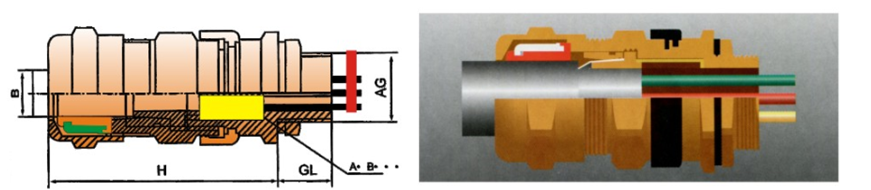

Outline
Dimension:
|
Entry thread size AG |
Cable acceptable details |
H |
GL |
Hexagon size | ||||||
Inner sheath |
Cable outside diameter(B) |
Armored cable /belt/knits | |||||||||
Metric |
NPT/G |
Min |
Max |
Orientation 1 |
Orientation 2 |
across flats |
across Corners | ||||
SHBDM-3-01o |
M20*1.5o |
1/2" |
9 |
5.5 |
12.0 |
0.9/1.25 |
0/0.7 |
65.5 |
15 |
24.0 |
27.7 |
SHBDM-3-01S |
M20*1.5S |
1/2" |
9 |
9.5 |
16.0 |
0.9/1.25 |
0/0.7 |
65.5 |
15 |
24.0 |
27.7 |
SHBDM-3-02 |
M20*1.5 |
1/2" -3/4" |
11.2 |
12.5 |
20.5 |
0.9/1.25 |
0/0.7 |
67.5 |
15 |
30.0 |
34.6 |
SHBDM-3-03 |
M25*1.5 |
3/4" -1" |
16.3 |
16.9 |
26.0 |
1.25/1.6 |
0/0.7 |
71.4 |
15 |
36.0 |
41.6 |
SHBDM-3-04 |
M32*1.5 |
1" -1 1/4" |
22 |
22.0 |
33.0 |
1.6/2.0 |
0/0.7 |
76.0 |
15 |
46.0 |
53.1 |
SHBDM-3-05 |
M40*1.5 |
1 1/4" -1 1/2" |
26.5 |
28.0 |
41.0 |
1.8/2.5 |
0/0.7 |
78.2 |
15 |
55.0 |
63.5 |
SHBDM-3-06 |
M50*1.5 |
1 1/2" -2" |
37.2 |
36.0 |
52.6 |
1.8/2.5 |
0/1.0 |
91.0 |
15 |
65 |
75.1 |
SHBDM-3-07 |
M63*1.5 |
2" -2 1/2" |
47.6 |
46.0 |
65.3 |
1.8/2.5 |
0/1.0 |
98.0 |
15 |
80.0 |
92.4 |
SHBDM-3-08 |
M75*1.5 |
2 1/2" -3" |
60 |
57.0 |
78.0 |
1.8/2.5 |
0/1.0 |
102.0 |
15 |
95.0 |
109.6 |
According to the requirement of customer,the thread length can be Lengthened.
