VISSONIC Full Digital Networked DSP Wireless Conference Processor in Conference System Meeting Room Solution

FOB Price:	1.00 - 1000.00 USD/Piece
Shipping:	EXW
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	CARTON

Quick Details

Brand Name: VISSONIC
Function: conference
Type: Audio Conference System
Effective Pixels: 0
Image Sensor: 0
Model Number: VIS-DCP2000-W

Specifications

Main Features

1.the unique AUDIO-LINK digital ring network technology achieve full-digital signal transmission and processing

2.One CAT5e cable to transmit up 64 channels audio and other signals.

3.High-fidelity sound quality by lossless audio transmission technology, 48K audio sampling rate and 20Hz ~ 20KHz frequency response

4.the central controller can independently control four conference rooms or make combination of conference rooms, support cascading of multiple conference controllers, achieve larger conference combination and separation (including meeting management, etc.).

5."Hand-in-Hand-Loop-Network" connection makes the system always working perfectly no matter changing discussion unit or having any malfunctioned units

6.the microphone sensitivity of each unit and 16 level equalizer EQ can be adjusted independently

7.the 16-level equalizer EQ to achieve sound or the whole conference field adjustment, limiter to prevent the sound suddenly become loud or low; noise gate of human voice can be identified; support AGC/AFC/ Mix (Auto-mix) technology

8.USB recording, advanced noise cancellation technology to realize clearer recording

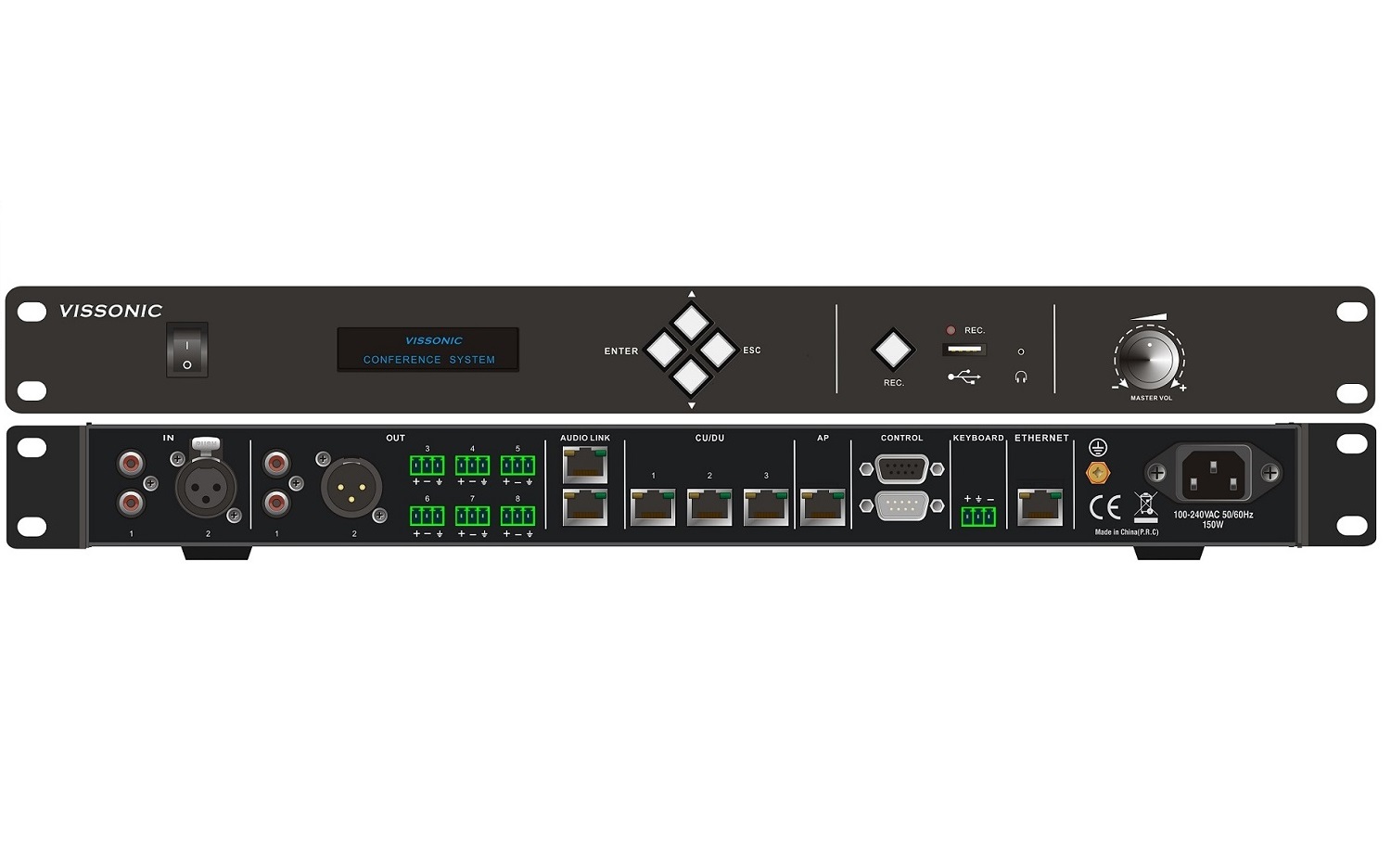

Interfaces

Front panel USB recording interface

3.5mm headphone for monitoring

1x RCA audio input

1x XLR audio input

1x RCA audio output

1x XLR audio output

6x Phoenix interface audio output

2x RJ45 digital audio connection

2x RJ45 for chairman unit, delegate unit, unit translators and other connection

1x RJ45 for wireless AP or router

1x DP9 male interface for external control

1x DP9 female interface for camera

1x three-pin phoenix interface for camera control keyboard

1x RJ45 for computer connection or network switcher

1x grounding screw

1x 100 ~ 240V DC Power Interface

Technical Parameters

Power 110V / 220V AC

Static power consumption 12W

Maximum power consumption 150W

Frequency Response 20Hz ~ 20KHz

Noise ratio (S / N)> 80dB

Total harmonic distortion <0.05%

Channel Crosstalk> 80dB

Dimensions (mm) 483L x 260W x43.6H

Dark gray color
