Home >Products Catalog > China Sunbun SK140 Central Locking Structure Thermoplastic Plastic Injection Molding Machine

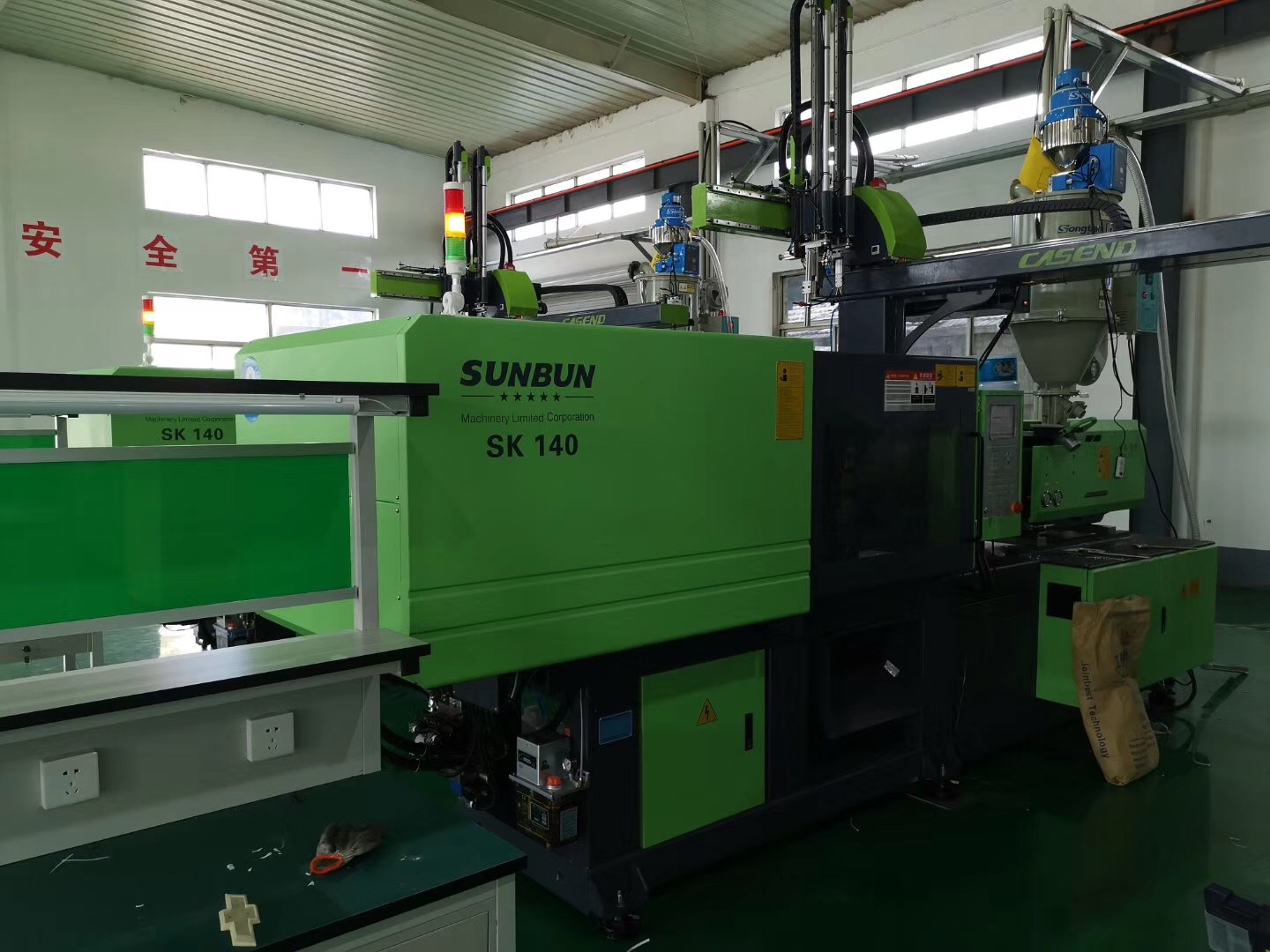

China Sunbun SK140 Central Locking Structure Thermoplastic Plastic Injection Molding Machine

FOB Price:	15000.00 - 18000.00 USD/Set
Supply Ability:	4,000 Set(s) per Year
Shipping:	Ningbo Port
Payment Terms:	L/C, D/A, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	Sea way Packing

Quick Details

After-sales Service Provided: Overseas third-party support available
Clamping Force: 1400N
Brand Name: SUNBUN
Style: Horizontal
Condition: New
Certification: CE UL ISO9001 ISO14001
Power(W): 14 KW
Opening Stroke: 430
Injection Rate: 166 cm3/s
Injection Weight: 267
Automatic: Yes
Plastic Type: Thermoplastic
Model Number: SK140
Type: Preform Injection

Specifications

Brand:Sunbun
Founded:2002 Year
Structure:Central locking stucture / Central clamping sturcture  (China only 2 factory )
Production condition:2000 set   2018 years
Tonnage:140T-2800T
Series:SK Series  High speed  high precision machine
Biggest live project:1800T  /2500T

Advantage of Central locking sturcture  (sales points)

1, 100% clampping force use ratio.10%-20% higher than tradtional one
2,  Less fins on the finished products
3,  2%-6% raw material saving on the production   (deeper cavity more, save more material)
4,  effective production for the mold.Mold board and pull rod
5,  Open stroke 10%-20% longer than tradtional one
6,  Less deformation after cooling

Shortl spacking.......
1, Bigger clampping force,  Use smaller machine make bigger productes
2, Bigger Open stroke,  Very suit for deep cavity product

Inject type	Unit	SK140/C400
Screw type		A	B	C
Screw dia	Mm	36	40	45
Screw dia ratio	L/D	22	22	20
Injection volume	Cm3	188	232	294
Injection volume (ps)	G	171	211	267
Max injection rate to air	Cm3/s	106	131	166
Injection pressure	Mpa	210	171	135
Injection stroke	Mm	185
Max injection speed	Mm/s	105
Screw max speed	R/min	210

Clamping force	Kn	1400
Open stroke	mm	430
Bar distance	Mmxmm	465x418
Max mold	Mm	460
Min mold	Mm	180
Ejector stroke	Mm	130
Ejector force forward	Kn	45
Ejector force backard	Kn	30
Thimble qty	Pcs	1+4

System pressure	Mpa	16
Motor power	Kw	14
Heater power	Kw	8.2/8.85
Tem control zone qty	Pcs	1+4
Bucket capacity	Kg	25
Oil tank capacity	L	185
Size	M	5x1.4x1.8
Weight	T	4.3
