Shenzhen Donrun Welding Equipment Co., Ltd.

China Manufacturer with main products: MMA/ARC Welding Machine, NBC/MIG Welding Machine, WS/TIG Welding Machine, Plasma Cutting Machine, SAW Welding Machine, Stud Welding Machine,...

Home >Products Catalog > TIG welding machine > High Frequency WS/ TIG AC/DC Portable Double Function AC/ DC Inverter IGBT Welding Machine

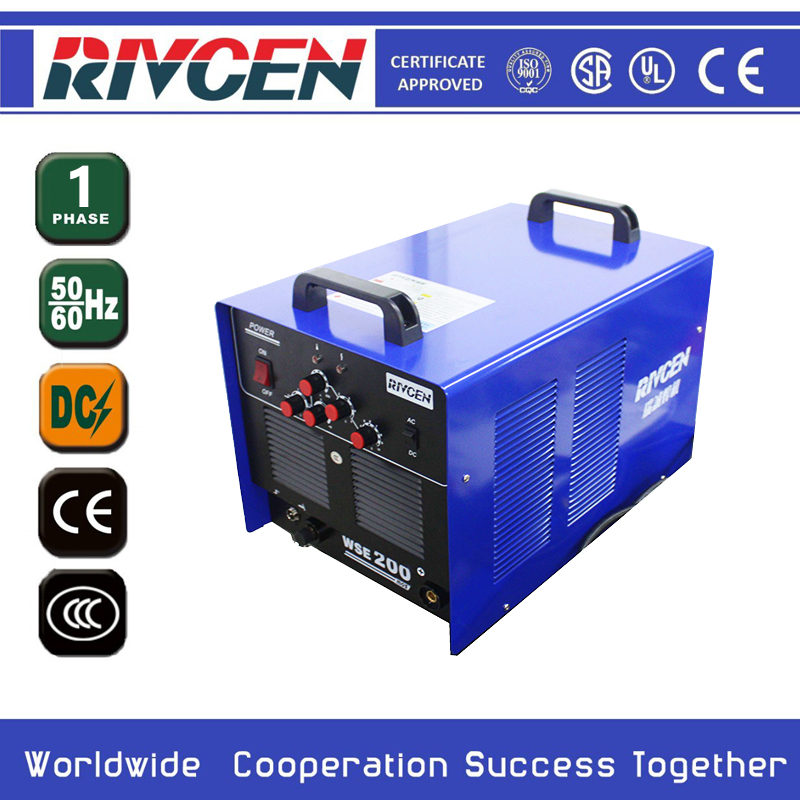

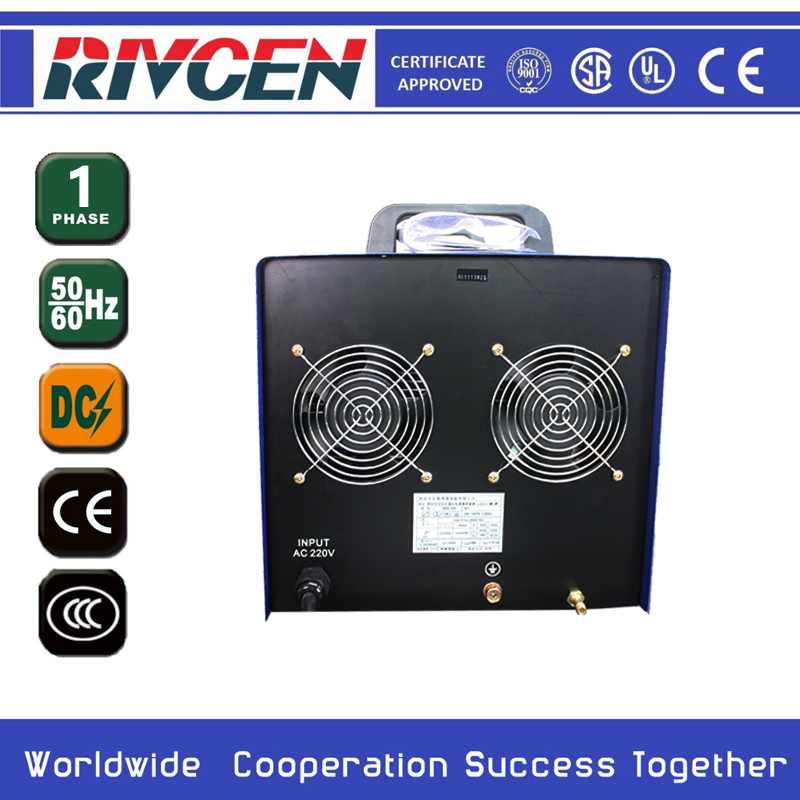

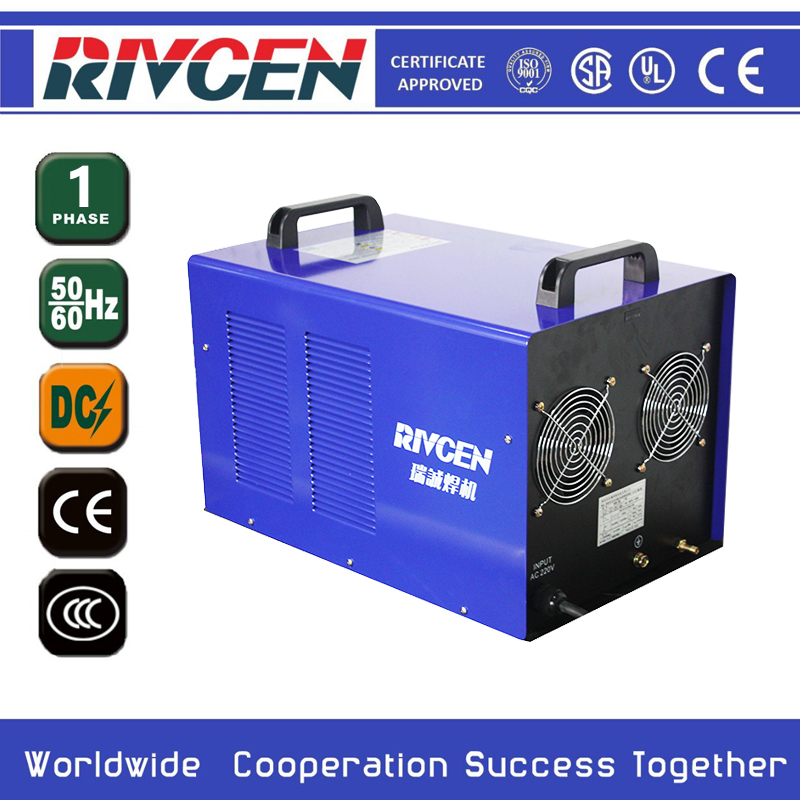

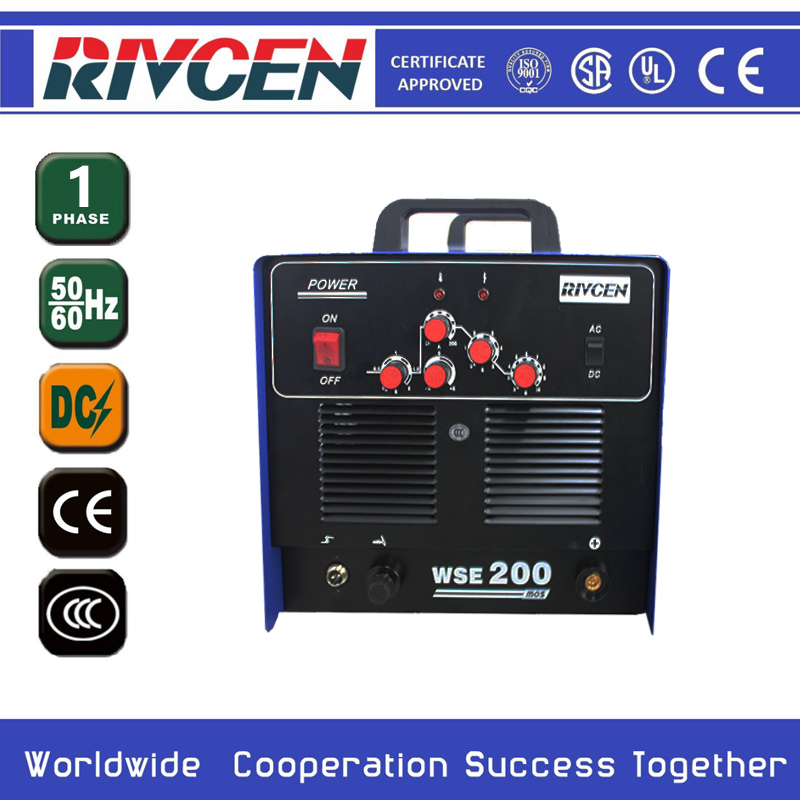

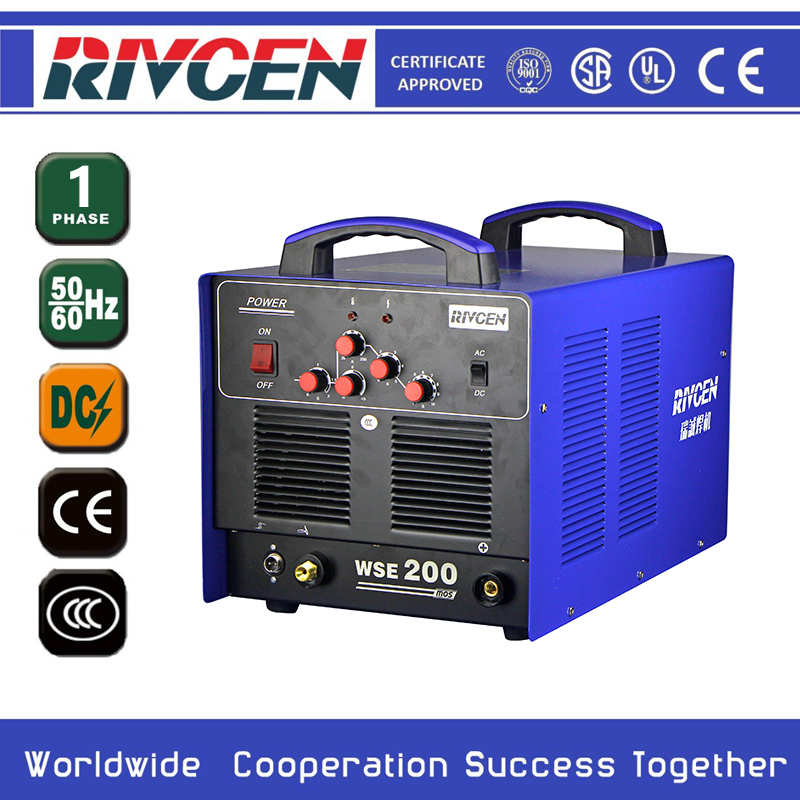

High Frequency WS/ TIG AC/DC Portable Double Function AC/ DC Inverter IGBT Welding Machine

FOB Price:	309.50 - 310.50 USD/Unit
Supply Ability:	5,000 Unit(s) per Month
Shipping:	By ship
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Packing carton

Quick Details

After-sales Service Provided: No overseas service provided
Certification: ISO9001/CE/UL/SA
Voltage: AC220V
Dimensions: 605x445x425mm
Brand Name: RIVCEN
Warranty: 1 Year
Power(W): 6.2kw
Motor Type: AC Motor
Rated Duty Cycle: 60%
Pilot Arc Current: 28A
Pulse Frequency: 50/60HZ
Arc Current: 10-200A
Model Number: TIG200 AC/DC
Condition: New
No-load Voltage: 44V
Output Current Range: 10-200A
Arcing Way: Transfer
Efficiency: 80%
Down slope: 0-5S
Post-flow: 2-10S

Specifications

1.Product parameter

Parameter/Model	TIG200AC/DC
Input Voltage(V)	AC220V±15%
Rated Input Power(KW)	6.2
Frequency(HZ)	50/60
Rated Input Current(A)	28
No-load Voltage(V)	44
Output Current Range(A)	10-200
Rated Output Vlotage(V)	18
Duty Cycle(%)	60
Arcing Way	Transfer
Efficiency(%)	80
Power Factor	0.73
Housing Protection Grade	IP21S
Insulation Grade	F
Down slope(S)	0-5
Post-flow(S)	2-10
Remote Control	NO
Vale Value Current(%)	20-80
Net Weight(kg)	19
Packing Dimension(mm)	605x445x425

2.Product purchase guide

Base Material	Plate Thickness(mm)	Welding Process	Current Range(A)	Applicable Model
Carbon Steel Stainless Steel Low-alloy Steel	0.3-5.0	DC TIG	10-200	TIG200 AC/DC
Aluminum Aluminum Alloy	0.8-3.0	AC TIG	10-200	TIG200 AC/DC

3.Standard accessories

4.Optional Accessories
High Frequency WS TIG ACDC Portable Double function AC DC Inverter IGBT Welding Machine

Shenzhen Donrun Welding Equipment Co., Ltd.

Shenzhen Donrun Welding Equipment Co.,Ltd("Donrun" for short) is a high-tech enterprise,which specializes in the R&D,manufacture,sales and service of inverter welding and cutting equipment,automatic welding devices,welding accessories and labor protection appliances.

Donrun founded in 2009,and the team is one of the earliest professional manufacturing and design of inverter welding and cutting equipment in China.There are full range welding equipment with ARC,TIG,MIG,plasma cutting,SAW,stud welder and multi-function welders over 100 models,which are widely used in military,aerospace,construction,machinery manufacturing,shipbuilding,steel structures,marine engineering,vehicle manufacturing,electricity,pipeline,chemical construction,boilers,bridge building and normal manufacture normal industries,etc.

RIVCEN,POWCEN and DONSUN are 3 major brands of Donrun. with the own brands,it has set up the dominating distribution network in the welding industry after years of accumulation,with nearly 500 dealers and sub-dealers,and near to one hundred dealers covering more than 40 countries and regions overseas,offering excellent products and services worldwide.

Independent innovation is the driving force for the company's continuous development.the best quality and optimal performance products are the cornerstones of Donrun development.as a leading enterprise,Donrun devotes itself to the perfect welding solutions for customers worldwide.
High Frequency WS TIG ACDC Portable Double function AC DC Inverter IGBT Welding Machine

5. Our Services
1. Your inquiry related to our product & price will be replied within 24 hours
2. Well-trained & experienced staff are to answer all your inquiries in English
3. Working time: 8:00am ~17:30pm, Monday to Saturday. (UTC+8)
4. Customized solution & perfect after-sale service
5. for large order, engineer can be sent to your country for on-site mainternace instructions.

6. Our advantage
1.Competitive price
2. Good quality
3. Timely delivery
4. New model launch yearly
5. Own manufacturing
6. Own quality control

7. FAQ
1. MOQ:
Generally if you choose the different products,our minimum order qty.Also will be different.
2. Payment:
Acturally, payment would be preferred: Normally we choose in T/T, usually is 30% deposit and pay the balance before shipment.L/C

8. Why choose us?
A. We are China Leading manufacturer. We are confident that with our experience in Circuit breaker,Transformer,Relay,Substation,Stablizer etc. Quick delivery time, excellent quality and comprehensive superior service we can give our customers complete satisfaction.
B.100% QC inspection before shipping.
C. for large order, engineer can be sent to your country for on-site mainternace instructions.
D. OEM is available.

9. Our 100% Promise
1. 24 hours online service.
2. We always say FINE to my customer.
3. the above product photos are coming from main production.
4. Thanks and the first cooperation to be expected.
for more information, please visit our website.Welcome to visit our factory. We are sincerely want to start business with each customer. Enquiry are welcomed.
