Highway Guard Rail C Purlin Roll Forming Machine Heavey Duty Channel
| FOB Price: | 32000.00 - 76000.00 USD/Roll |
|---|---|
| Supply Ability: | 30 Piece(s) per Year |
| Shipping: | by sea |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Container |
Quick Details
- Type: Steel Frame & Purlin Machine
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: CE
- Brand Name: Superda
- Condition: New
- Type: Gear box driving
- Warranty: 1 year
- Weight: 3500kgs
- Dimension(L*W*H): 18000*1600*1600mm
- Power(W): 18.5kw
- Voltage: 380v or customized
- Model Number: YX
- Production Capacity: Shenzhen
- Work Pressure: 16
- Warranty: 1 year
- Lifespan: 20 years
Specifications
Roll forming machine for producing solar mounting bracket, including solar photovoltaic bracket, solar PV support machine
1.Brief Introduction:

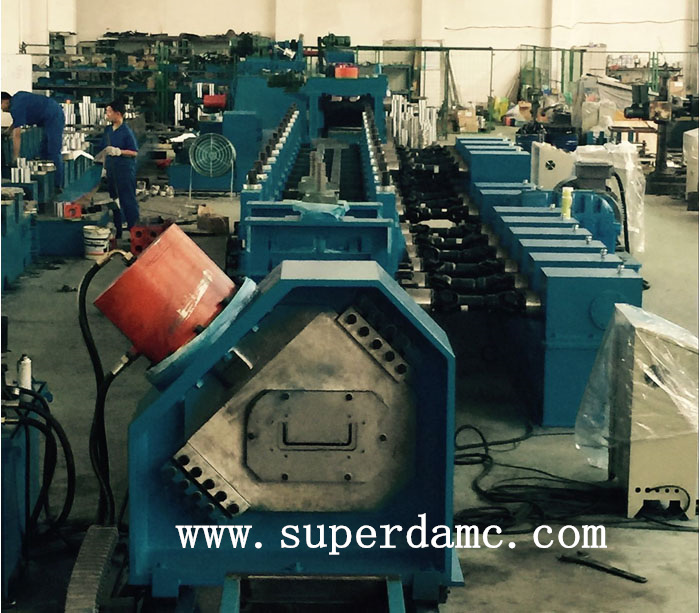

C channel purlin roll forming machine production line
Roll forming machine for production solar bracket or highway mounted channel
1,Technical parameters
| No. | ITEM | PARAMETER | REMARK | |
| 1 | MATERIAL | Type | Cold-rolled strip steel, galvanized sheet | |
| T.(mm) | 5.0mm | |||
| Yield Strength (Mpa) | Q235-300 | |||
| 2 | Forming product Width | 50mm | ||
| 3 | Forming speed (m/min) | 10-18m | ||
| 4 | Forming main power (KW) | 45 KW | FYR | |
| 5 | Hydraulic power (KW) | 18.5 KW | FYR | |
| 6 | Voltage | AC380V, 50Hz, 3P | ||
C channel production line process
2 in 1 Uncoiler Straightening→servo feeder→Hydraulic press breach device → Guide device → roll forming machine → hydraulic punch →shear device (including knife)→ finished product rack
2.Techincal parameters:
Main Forming machines
5.1 Forming Roller: 16 stations, and add Rub-roll, to make sure the surface profile no scratches.
5.2 Side Panel: T.18mm,A3 steel Heavy duty.
5.3 Rolling speeding: 10-18 m/min.
5.4 Roller material: GCr15, overall quenching, hardness HRC56-62 ℃.
5.5 Motor power: 18.5KW.
5.6 Main Roller: 140mm, 45 #.
5.7 Equipment base: 45 # H type using welded steel plate.
5.8 Transmission: chain drive.
5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.
3.Performance features:
Devices completed prodution line
| No. | Machine name | QTY | REMARK |
| 1 | Uncoiler straightener | 1 | |
| 2 | Servo Feeder | 1 | |
| 3 | Hydraulic machine | 1 | with mould |
| 4 | Guide device | 1 | |
| 5 | Forming machine | 1 | |
| 6 | Hydraulic machine | 1 | with mould (2 sets) |
| 7 | Follow Shear | 1 | Including knife |
| 8 | Collect rack | 1 | |
| 9 | Control system | 1 |
