Shenzhen Superda Machine Co
China Manufacturer with main products: Rack Roll Forming Machine, Superdamc.Com, Floor Deck Roll Forming Machine, Cable Tray Roll Forming Machine, Electronic Cabinet Frame Machine,... |
Home
>Products Catalog > Construction Material Roll Forming Machine > Angle Steel L Profiles Roll Forming Machine Manufacturer
Angle Steel L Profiles Roll Forming Machine Manufacturer
| FOB Price: | 20000.00 - 35000.00 USD/Set |
|---|---|
| Supply Ability: | 30 Set(s) per Year |
| Shipping: | by sea |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Container |
Quick Details
- Type: Steel Frame & Purlin Machine
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: CE
- Brand Name: Superda
- Condition: New
- Type: Chain driving
- Warranty: 1 year
- Weight: 3500kgs
- Dimension(L*W*H): 18000*1600*1600mm
- Power(W): 18.5kw
- Voltage: 380v or customized
- Model Number: YX
- Production Capacity: Shenzhen
- Work Pressure: 16
- Warranty: 1 year
- Lifespan: 20 years
Specifications
Steel frame keel machine metal L profile steel angle roll forming machine manufacturer
Angle steel for a variety of building structures and engineering structures, such as beams, bridges, transmission towers, lifting and transport machinery, ships, industrial furnaces, reaction towers, container racks, cable trench brackets, power piping, busbar bracket installation, and warehouse shelves.
1.Brief Introduction:
Metal L profile steel angle roll forming machine production line process
Uncoiler straightener 2 in 1 → Guide device → roll forming machine →shear device (including knife)→ finished product rack
2.Techincal parameters:
Shenzhen Superda Machine CO., LTD Main Forming machines

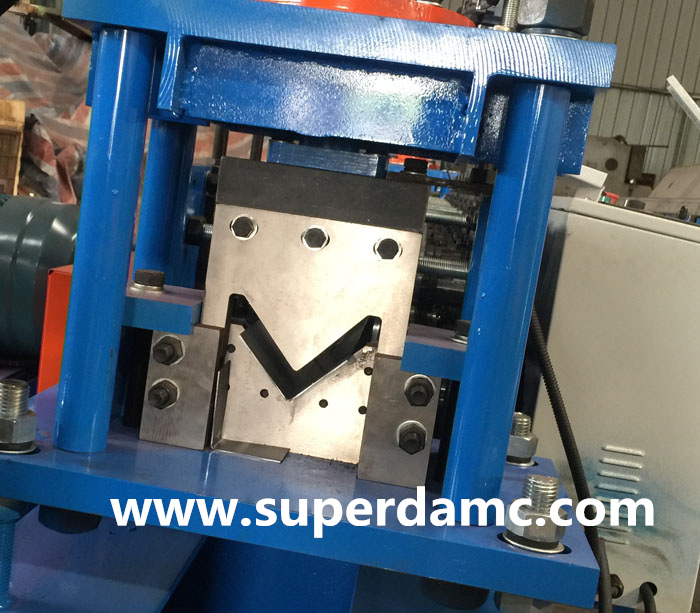

5.1 Forming Roller: 14 stations, and add Rub-roll, to make sure the surface profile no scratches.
5.2 Side Panel: T.18mm,A3 steel Heavy duty.
5.3 Rolling speeding: 2-8 m/min.
5.4 Roller material: #45, overall quenching, hardness HRC56-62 ℃.
5.5 Motor power: 4KW.
5.6 Main Roller: dia.65mm, 45 #.
5.7 Equipment base: 400# H type using welded steel plate.
5.8 Transmission: chain drive.
5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.
3.Performance features:
Devices completed L profile metal parts production line
| No. | Machine name | QTY | REMARK |
| 1 | Uncoiler straightener | 1 | |
| 2 | Servo Feeder | 1 | |
| 4 | Guide device | 1 | |
| 5 | Forming machine | 1 | |
| 7 | Follow Shear | 1 | Including knife |
| 8 | Collect rack | 1 | |
| 9 | Control system | 1 |
Metal forming machine accessories brand
| No. | Name | Manufacturer |
| 1 | Motor & Reducer | Domestic brands |
| 2 | the main key bearing | Domestic brands |
| 3 | Inverter | Shilin |
| 4 | PLC Systems | Siemens |
| 5 | Low-voltage electrical | Schneider |
| 6 | Encoder | Omron |
| 7 | Touch screen | Siemens |
| 8 | Hydraulic system | Domestic brands |
