Goodsjack Hydraulic Press Machinery Co., Ltd.
China Manufacturer with main products: Hydraulic Press Machine, Hydraulic Deep Drawing Press, Hydraulic Cold Forging Press |

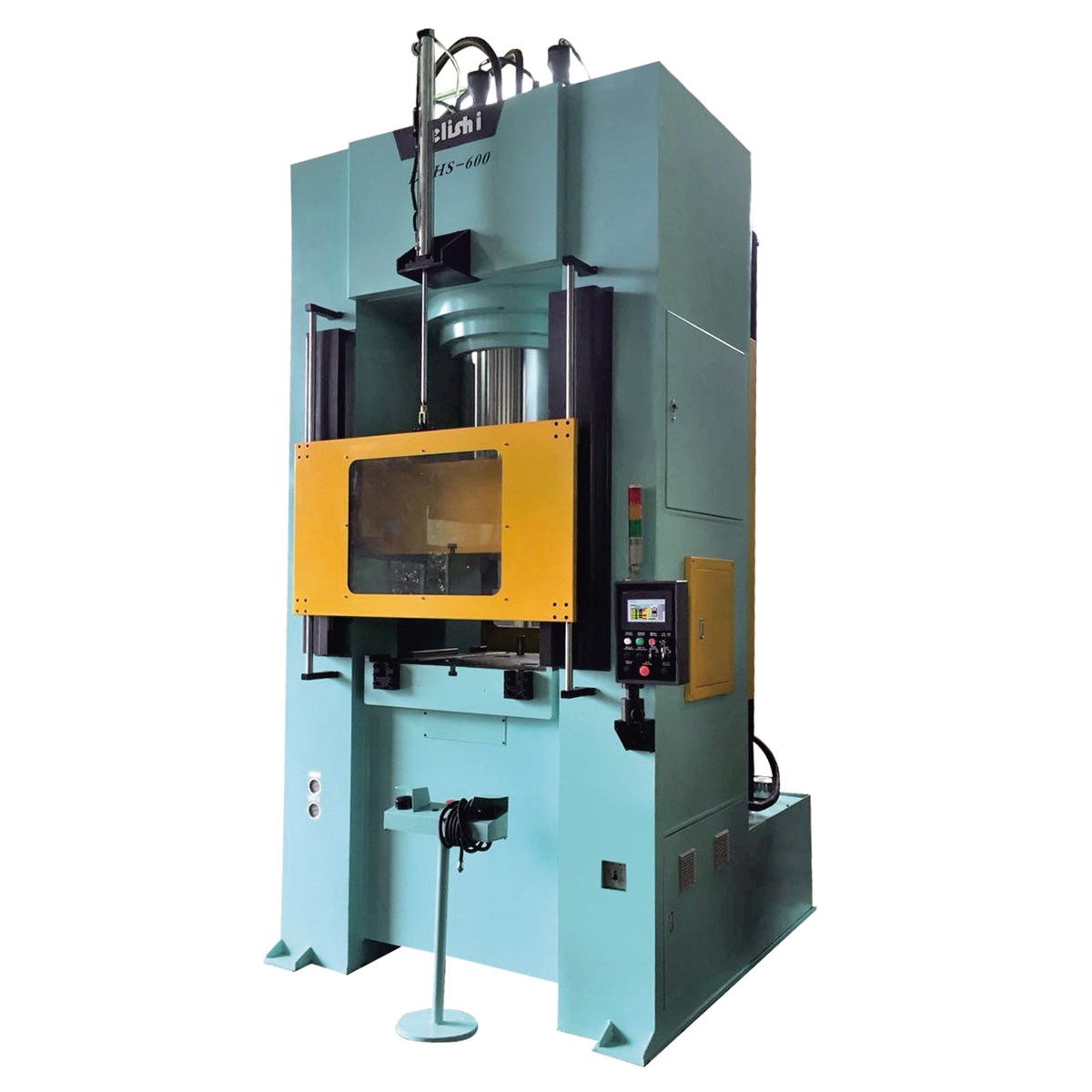

Servo Hydraulic Cold Forging Press Machine
| FOB Price: | 76900.00 - 300000.00 USD/Set |
|---|---|
| Payment Terms: | L/C, T/T, MoneyGram |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Automation: Automatic
- Power: Hydraulic
- Brand Name: Goodsjack/Delishi
- Condition: New
- Extra Services: End Forming
- Material / Metal Processed: Stainless Steel
- Raw Material: Steel Bar
- Machine Type: Press Brake
- Model Number: DKHS
Specifications
| Model | Units | Specifications | ||||||||||
| DKHS-100 | DKHS-200 | DKHS-300 | DKHS-400 | DKHS-500 | DKHS-650 | DKHS-800 | DKHS-1000 | DKHS-1200 | DKHS-1500 | |||
| Master cylinder | Rated Capacity |
ton | 100 | 200 | 300 | 400 | 500 | 650 | 800 | 1000 | 1200 | 1500 |
| Stroke | mm | 300 | 400 | 400 | 400 | 500 | 500 | 500 | 500 | 500 | 400 | |
| Fast dowm Speed |
mm/s | 180 | 160 | 160 | 230 | 230 | 170 | 190 | 210 | 190 | 220 | |
| Coining Speed |
mm/s | 7-15 | 8-17 | 5-12 | 7-18 | 8-16 | 5-12 | 5-12 | 8-16 | 6-15 | 3-13 | |
| Return Speed |
mm/s | 170 | 150 | 130 | 210 | 200 | 170 | 180 | 210 | 160 | 210 | |
| System pressure | bar | 240 | 235 | 240 | 240 | 250 | 248 | 240 | 240 | 250 | 240 | |
| Knock-out cyinder | Ejecting Force |
ton | 15 | 30 | 30 | 40 | 40 | 50 | 50 | 60 | 80 | 100 |
| Stroke | mm | 200 | 200 | 200 | 200 | 250 | 250 | 250 | 250 | 250 | 200 | |
| Mandrel Diameter |
mm | 40 | 50 | 50 | 60 | 60 | 80 | 80 | 80 | 80 | 100 | |
| Open heigh(slide to bolster) | mm | 600 | 700 | 700 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1050 | |
| Working Table size |
L-R | mm | 500 | 700 | 700 | 800 | 800 | 1000 | 1000 | 1200 | 1300 | 1400 |
| F-B | mm | 500 | 700 | 700 | 800 | 800 | 1000 | 1100 | 1200 | 1300 | 1400 | |
| Main motor power | KW | 8.6 | 16 | 23.6 | 34.6 | 34.6 | 37 | 60 | 74 | 90 | 110 | |
| over all Dimension |
L-R | mm | 1250 | 1680 | 1680 | 2600 | 2650 | 2940 | 3000 | 3660 | 3800 | 4150 |
| F-B | mm | 1430 | 1780 | 1780 | 2100 | 2100 | 2100 | 2300 | 2450 | 2500 | 2680 | |
| H | mm | 2850 | 3480 | 3500 | 3700 | 4050 | 4100 | 4320 | 4560 | 4720 | 4820 | |
Remarks: above 1500 ton frame guide cold extrusion press machine, please tell us your requirements, such as product drawing etc, then best offer will be sent to you!
Pro
Duct Advantage
Duct AdvantageGoodsjack DLS cold forging press was mainly applicable to metal materials of cold extrusion, forming, shallow, drawing and blanking purposes Such as: automobile gears, car universal joints, motorcycle spare parts, cell phone casing, LED radiator, aluminum heat sink, watchband, watchcase, hardware tools etc.
Use servo control system to save energy 50-70%.
Pressure stability,pressure error ±1bar,repeatable positioning accuracy up to±0.02mm.
Modular design, customized to your cutting specifications
Perfect stability and effective resistance to off-center loading
Superior rigidity and bed to platen parallelism for perfect stamping result
Precision-guided moving slide (platen)
Particularly suitable for precision stamping automotive parts
Fast, easy and safe setup and operation
Years of maintenance-free and reliable operation
