60t Accuracy Electronic Heavy Duty Weighbridge
| FOB Price: | 7600.00 - 7900.00 USD/Unit |
|---|---|
| Supply Ability: | 2,000 Unit(s) per Year |
| Shipping: | by sea |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Fujian in China |
| Packaging Details: | Platforms Are Packed by Film or Color Strip |
Quick Details
- Accuracy: OIML III
- Rated Load: 150%F.S
- Display Type: LED
- Type: Truck Scale
- Brand Name: Kejie
- Power Supply: 220v
- Model Number: SCS-60
- Structure: Electronic Scale
- Port of Loading: Fuzhou, China
- The Weighing Method: Static Truck Scale
- Operating Environment: Non Explosion-proof Loadometer
- Size: 3x6m, 8m, 10m, 12m, 14m, 16m, 18m, 20m, 22m, 24m
- Scale Structure: U-Type Steel
- Lightning Protection: With Lightning Protection
- Division: 20kgs
- Surface Plate Thickness: 8+2mm Checkered Plate
- Certifications: ISO9001
Specifications

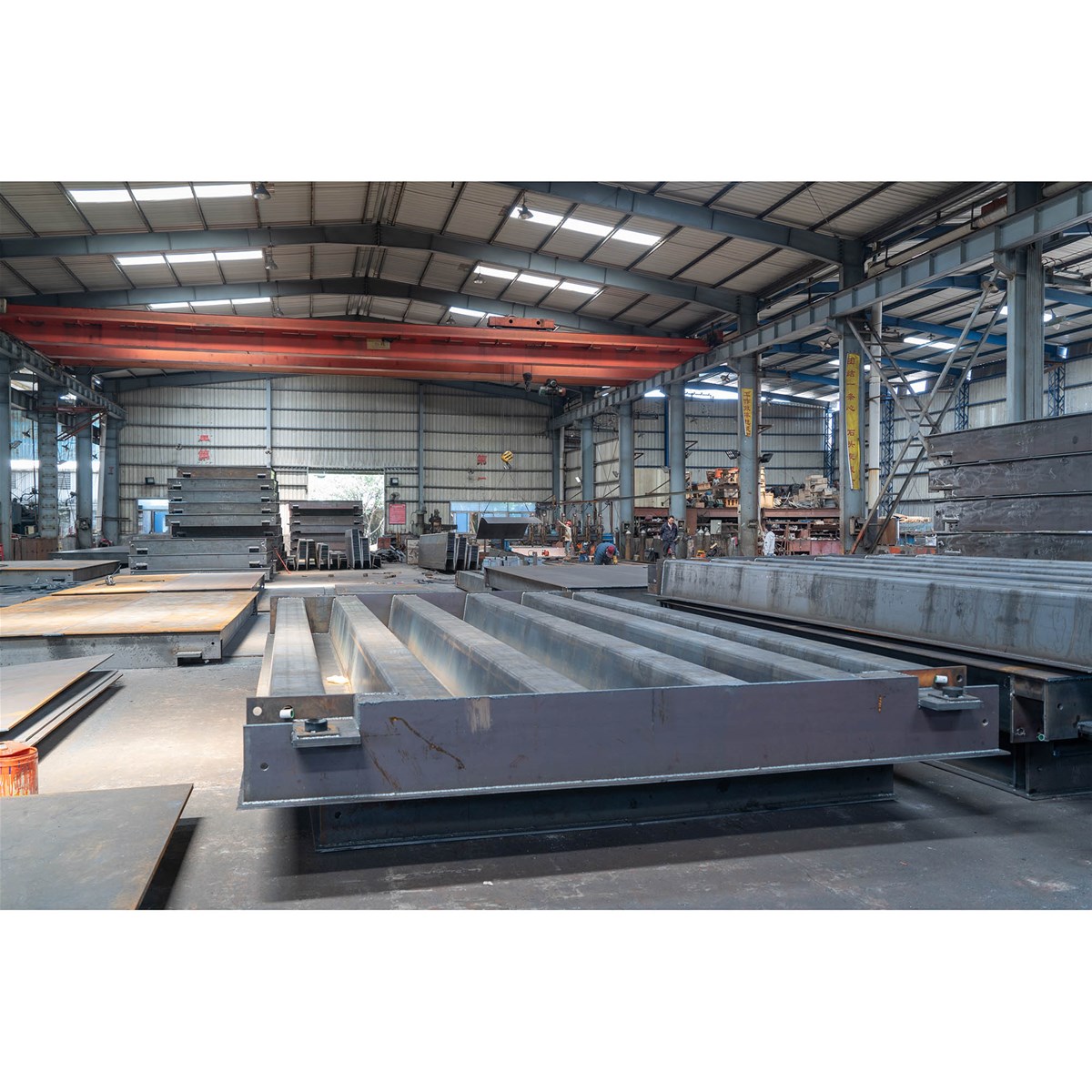

Structure of truck scale platform (18x3m)
| Structure of truck scale | Modular steel structure |
| Dimension | 18x3m |
| Top plate | Checkered plate |
| Thickness of top plate | 8+2mm |
| Modules quantity | 10pcs |
| Bridge parts quantity | 6pcs |
| Dimension of long module | 5535x1500x235mm |
| Weigh-bars | 4pcs |
| Dimension of each weigh-bars | 3000x350x270mm |
| U beam thickness | 6mm |
| U beam quantity | 8pcs |
Specifications of Kejie modular truck scale
| PlatformSize | Max capacity | Model | Division | Sections | Axle load | Net weight |
| 3X8m | 60t | SCS-MU-60T | 20kg | 2pcs | 15t | 4.5t |
| 3X10m | 60t | SCS-MU-60T | 20kg | 2pcs | 15t | 5.2t |
| 3X12m | 60t | SCS-MU-60T | 20kg | 2pcs | 15t | 5.9t |
| 3x14m | 60t | SCS-MU-60T | 20kg | 3pcs | 15t | 7.1t |
| 3x16m | 60t | SCS-MU-60T | 20kg | 3pcs | 15t | 7.8t |
| 3x18m | 60t | SCS-MU-60T | 20kg | 3pcs | 15t | 8.4t |
| 3X20m | 60t | SCS-MU-60T | 20kg | 4pcs | 15t | 9.7t |
| 3x22m | 60t | SCS-MU-60T | 20kg | 4pcs | 15t | 10.3t |
| 3x24m | 60t | SCS-MU-60T | 20kg | 4pcs | 15t | 10.9t |
for more details, pls contact us freely
Kjhq (at) kjhq (dot) com
