Home >Products Catalog > FS-100/150L Distillation Recovery Machine

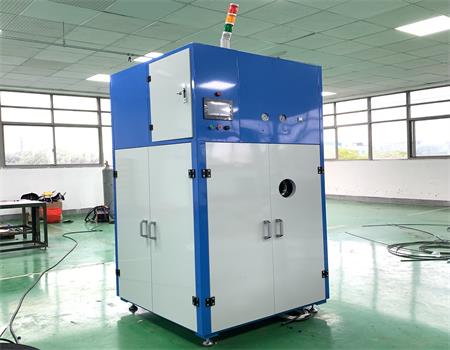

FS-100/150L Distillation Recovery Machine

FOB Price:	0.15 - 2450.00 USD/Set
Supply Ability:	1 Set(s) per Week
Shipping:	Shanghai FOB
Payment Terms:	L/C, D/A, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China

Quick Details

Type: Oil Purifier
Brand Name: Customized
Capacity: 100-150
Negative Pressure: none
Machine name: FS-100/150L distillation recovery machine
Model Number: FS-100/150L

Specifications

FS100150L distillation recovery machine

Equipment Name: Distillation Recovery Machine

Equipment model: 100/- 150CHA

Working principle:

the distillation recovery machine is a special distillation recovery device for hydrocarbon solvents. It mainly uses the difference in the boiling points of the components in the liquid mixture for separation. after the liquid mixture is indirectly heated, the hydrocarbon solvent generates steam. as the steam overflows to the cooling tank, it generates new Hydrocarbon liquid, so as to achieve the separation of its components.

Main technical parameters

Model: FS-100/150CHA

Distilled solvent: hydrocarbon

Distillation capacity: (L/H): 100150 (second petroleum)

Heating method: indirect water vapor heating

Power supply: 3-phase, 380V, 50HZ Electrical capacity: 12-18KW

Compressed air: 0.4mpa0.6mpa, take over 6

Cooling water: 35L/min, below 20℃

Outsider size: 90010002100 (LWH)

Total weight: 400kg

Equipment structure and function:

(1) Equipment composition

the distillation recovery machine is composed of a solvent circulation system, a water vapor indirect heating system, a cooling water system (provided by the user of the cooling water source), a gas circuit system, an electrical control part, a rack and a whole machine cover, etc.

(2) Equipment function

1. Solvent circulation system:

Solvent strainer: filter out and remove floating impurities and other foreign substances in the dirty solvent before distillation.

Liquid level regulator: It is a container to adjust the liquid volume of the distillation tank. Use a floating valve to control the amount of solvent at a certain level.

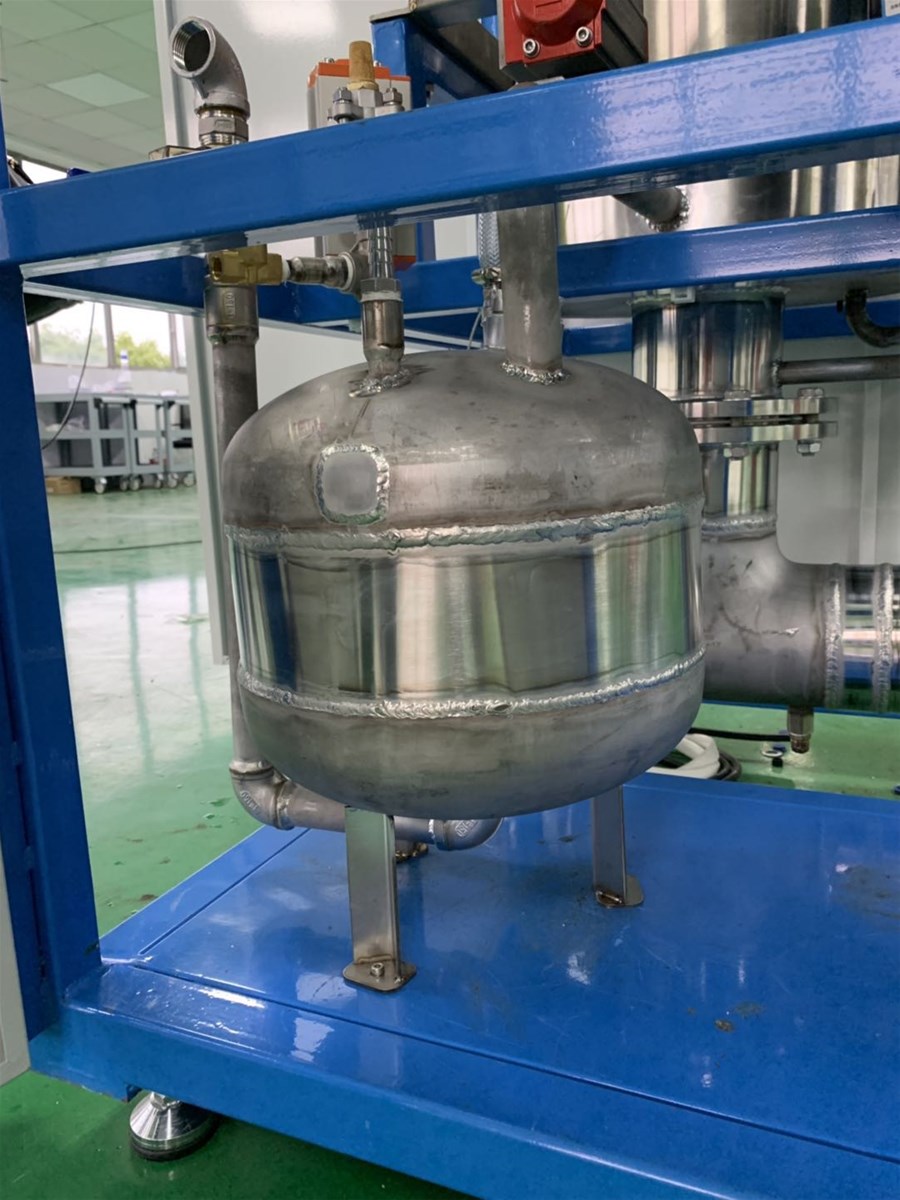

Distillation tank: It is a pressure vessel, and the dirty solvent is sent to this vessel for heating. the solid dirt in the solvent is separated from the dirt dissolved in the solvent, and only the solvent becomes a gas and evaporates.

Condenser: Cooling and liquefying the solvent gas with cooling water.

Circulation pump: Circulates the solvent in the water separator and generates a negative pressure with the vacuum jet assembled in the pipeline.

Waste liquid tank: the waste liquid such as the mixture that cannot be distilled in the distillation tank is flowed from the distillation tank to this tank. this is a tank that serves as a cooling function to ensure that it is not overheated when draining.

2. Heating system

Heating medium: indirect heating with water vapor.

Heater: It is a heater that heats the heat transfer medium. Components include pressure gauges, pressure control switches, pressure relief valves, etc.

Oil temperature regulator: A temperature controller that keeps the temperature of the heat transfer medium at a certain value. the regulator is connected to the front control panel.

3. Cooling water system

Cooling water temperature sensor: It is a sensor that monitors the cooling water temperature. If the temperature exceeds the set value, an alarm will sound.

Flow control valve: adjust the flow of cooling water

4. Electrical control part

Integrated electrical parts, using high-quality electrical components, stable and reliable performance, and equipped with a "Siemens" touch screen, making parameter setting and adjustment very convenient.

5. Rack and overall cover:

It is composed of chassis, feet, parts and brackets, door panels, etc.

Flow chart

FS100150L distillation recovery machine
