Hyperion Optics Co., Ltd.
China Manufacturer with main products: Diffractive Optics Lens, Aspheric Optical Lens |

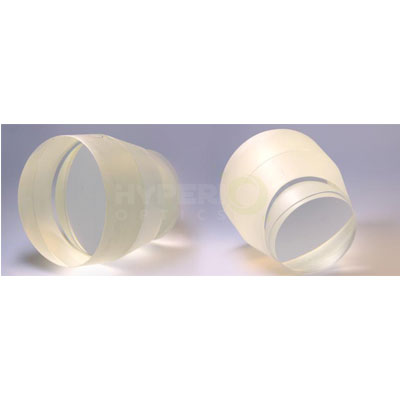

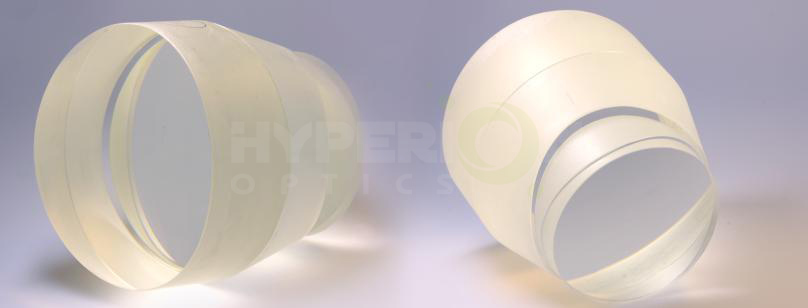

Achromatic Cylindrical Lenses 2020
| FOB Price: | 40.00 - 200.00 USD/Piece |
|---|---|
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, Eastern Europe, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
Quick Details
- Compatible Brand: Hyperion Optics
- Focal Length: achromatic objective lens
- Focus Type: Macro Lens
- Type: Fixed Focus Lens
- Brand Name: Hyperion Optics
Specifications
Achromatic cylindrical lenses are ideal for eliminating spherical and chromatic aberration at the image plane, for example using monochromatic light source, achromatic cylindrical lenses can form a 50-90% smaller spot comparing to a singlet lens.
Achromatic cylindrical lenses are typically introduced into system designs for the highest-power laser or imaging applications, such as anamorphic projection and anamorphic photography, Hyperion Optics can manufacture such lenses based on the custom design doublet or triplet achromatic cylindrical cemented lenses by using centering alignment device with UV curing unit, which allows us to process precision bonding and testing simultaneously. Every singlet is fully inspected before bonding.
We are capable of producing achromatic cylindrical lenses up to 150mm in diameter with reliable anti-reflective coatings, centering precisely controlled on the optical edging device, and surface accuracy strictly defined on Zygo. Further, we also help our clients with adopting Chinese CDGM or NHG equivalents in achromatic cylindrical design, offering a flexible and quick-turnaround solution in LRIP cases. If you need, please contact us.
Please check out our anamorphic lenses for more information. If you are in the stage of developing your own anamorphic lenses, don't hesitate to contact one of our optical engineers for a free consultation to receive design input/ suggestions from the manufacturing perspective.
AchromaticCylindrical Lenses |
COMMERCIAL GRADE |
FACTORY STANDARD |
PRECISION GRADE |
Size Tolerance Length/Width(mm) |
+0/-0.30 |
+0/-0.25 |
+0/-0.25 |
Diameter (mm) |
+0/-0.15 |
+0/-0.10 |
±0.025 |
Wedge (along axis) |
5 mrad |
3 mrad |
1 mrad |
Focal Length Tolerance (%) |
±2% |
±2% |
±1% |
Cosmetic(MIL-C-13830A) |
80-50 |
60-40 |
10-5 |
Irregularity (Lambda @ 632.8nm) |
1 L |
1/2 L |
1/10 L |
Centration (Arc min) |
<5' |
<3' |
<1' |
Coating (T% avg) |
99% |
99.5% |
99.5% |
Materials |
Optical Glasses Depends on Design | ||
Our client base spans across defense, security, bioengineering, pharmaceutical, institutional, industrial, and research industries worldwide. We specialize in DFM () input from rapid prototyping to volume production. Our comprehensive metrology coupled with cost-effective philosophy can help Hyperion customers obtain a competitive edge in the global market.
