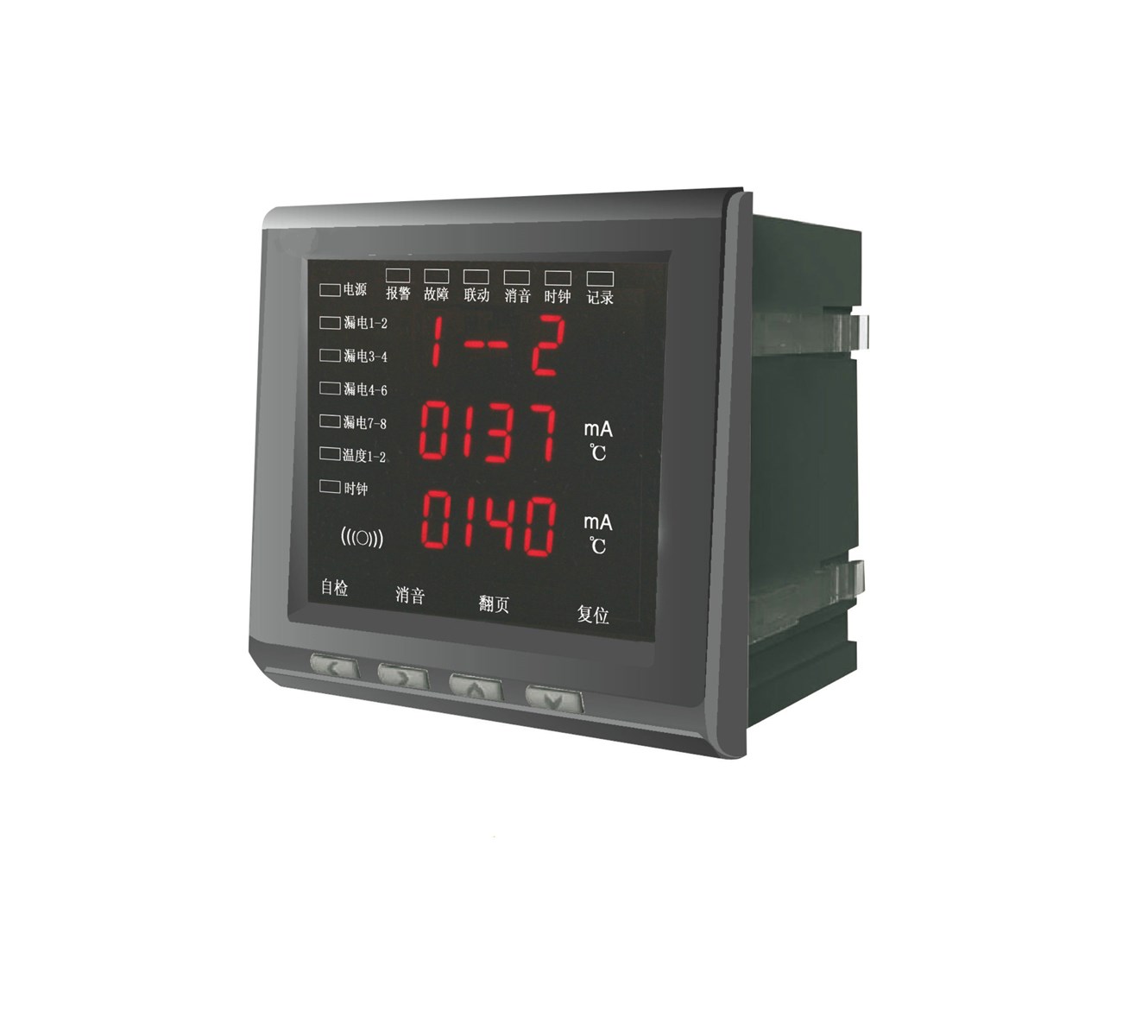

Blue Jay Residual-Current Monitor
| FOB Price: | 200.00 - 300.00 USD/Acre |
|---|---|
| Payment Terms: | L/C, D/A, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
Quick Details
- Contact Load: High Power
- Protect Feature: Sealed
- Size: Subminiature
- Theory: Thermal Relay
- Brand Name: Blue Jay
- Usage: Protective
- Model Number: RCM-IV

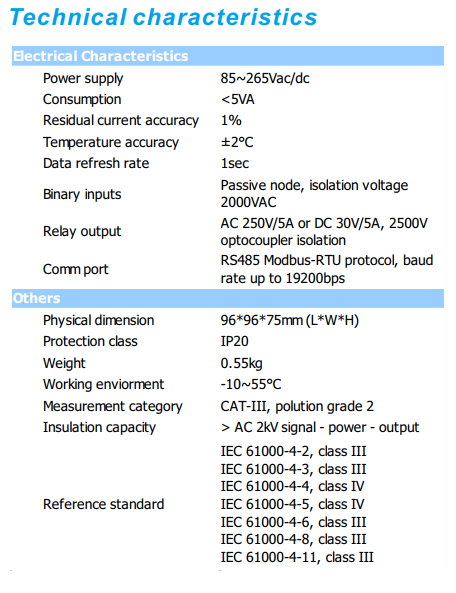

Specifications
It can optionally be carried out by selected current transformer or temperature sensor for each channel detect parameter and alarm or trip threshold. Multiple RCM-IV can combination with circuit breaker for build MRCD applications, RS485 port can easy submit data to SCADA systems.
Continuous monitoring of residual currents
Max 16 measuring channels for residual
Current or temperature input
History memory with date and time stamp for
100 event data records
Backlit graphical display (7-segment display)
and indicate LEDs
Two alarm relays, free to set alarm or trip
logic
Built-in buzzer provide sound notice when
Alarm trigged
Password protection for device setting
