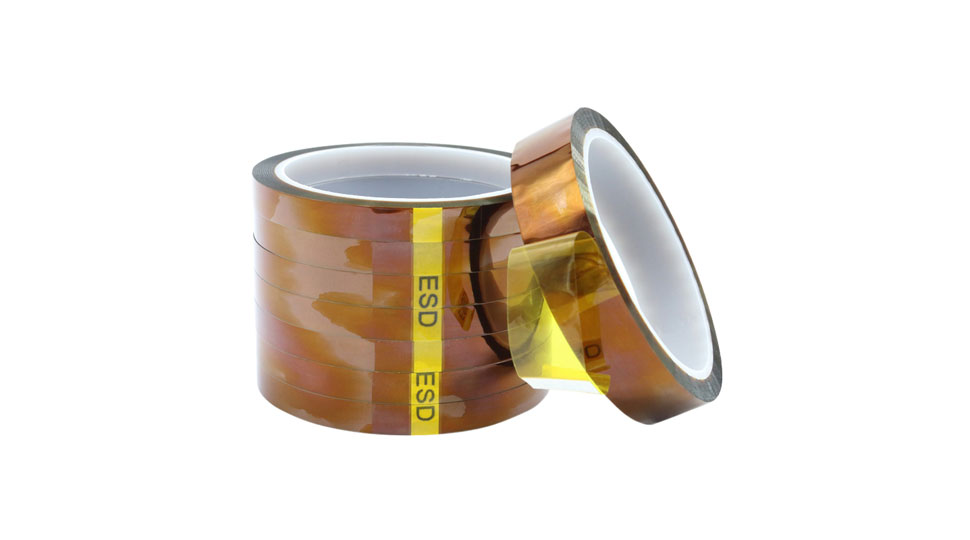

ESD Kapton Tape HOPELIGHT ELECTRICAL

FOB Price:	1.00 - 10.00 USD/Roll
Payment Terms:	T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Tube Fuse Holder with good price

Price:

Min. Order:5,000 Pieces
Fuse Holder for Medium Plug-In Fuse

Price:0.15-0.17 USD/Piece

Min. Order:500 Pieces
36kV/200A Fuse Holder

Price:10.00-11.00 USD/Piece

Min. Order:100 Pieces
D Fuse-Links Base

Price:

Min. Order:
LMHR17-160A fuse switch disconnector

Price:8.50-9.00 USD/Piece

Min. Order:100 Pieces
Factory Wholesale Price Used Transport The Powe...

Price:11.50-15.00 USD/Acre

Min. Order:1 Acre

Product Details

Place of Origin:	Guangdong in China

Quick Details

Type: Fuse Cutout
Brand Name: hopelight
Safety Standards: /
Breaking Capacity: /
Usage: /

Specifications

Antistatic polyamide tape is also called KAPTON ESD Tape, ESD PI tape, ESD polyimide tape. the KAPTON tape is based on a polyamide film with antistatic treatment on both sides (using proton bombardment technology in a plasma environment, antistatic treatment on one or both sides, the static index can reach 105, without adding any additives or paste any substance to maintain the original properties of the film. the adhesive force between the adhesive and the film is twice that of ordinary products).

Single-sided coated imported high-performance silicone pressure-sensitive adhesive, the surface resistance of the back surface of the tape is less than 107, coated the surface is less than 109, and the stripping electrostatic voltage of the tape is less than 50V, to ensure that the electronic parts products will not be damaged by the static voltage generated when the tape is separated. Good shearing, easy punching and die-cutting processing, with excellent high temperature resistance and solvent resistance.

Technical Data

Backing	ESD polyimide film
Adhesive	Silicone
Thickness(mm)	0.06mm
Width(mm)	3---500
Length(m)	33/66/200 (customized)
Adhesion(N/25mm)	8
Tensile Strength(N/25mm)	115
Elongation(%)	45
Temperature Resistance(℃)	280
Surface resistance(Ω)	105~108

Main Features of ESD Kapton Tape

ESD kapton tape is ultra-thin, only 0.06mm thick, clearly visible through looking at coins!

High temperature resistance Because ESD polyimide tape is made of polyimide film coated with high-temperature resistant silicone, so it has a strong temperature resistance.

No residual, strong adhesion, and after being removed, the masked surface does not leave traces.

Excellent anti-static effect on the back (≤ 105 ~ 8Ω/sq) Anti-static effect on the silicone adhesive surface (≤ 109 ~ 10Ω/sq) Permanent anti-static effect with very low peeling voltage (≤ 100 V) Suitable for PCB process with an anti-static effect.

Hopelight Electrical is a professional. We provide Polyimide Tape, Polyester Tape, Copper Tape, and so on. Want to know more? Please contact us.
