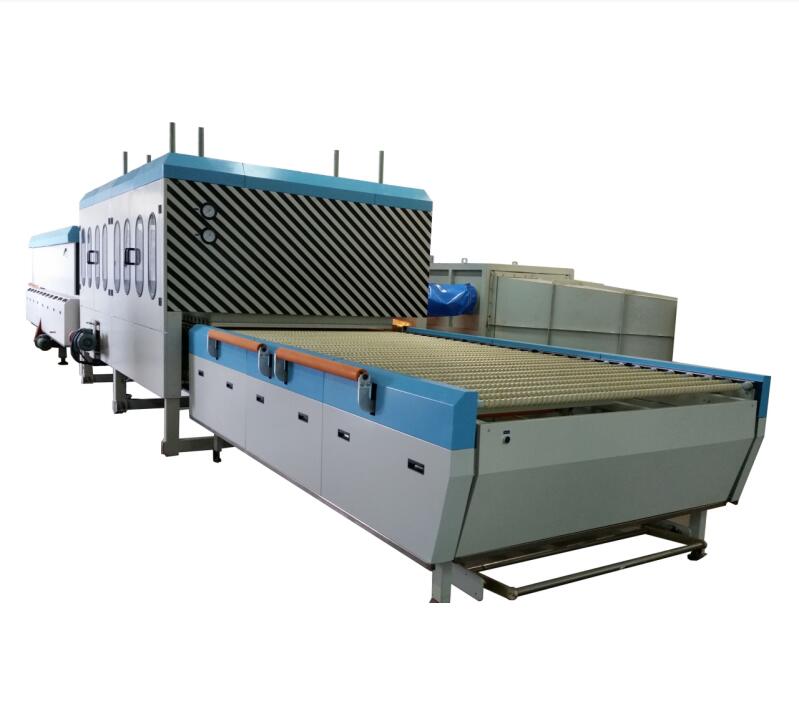

Xinglass Glass Tempering Furnace for Flat & Curved Glass, Horizontal Glass Tempering Machine

FOB Price: 90000.00 - 500000.00 USD/Unit
Supply Ability: 8 Unit(s) per Month
Shipping: FOB, CIF, or to the customer's factory
Payment Terms: T/T
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Zhejiang in China
Packaging Details: Containers

Quick Details

  • After-sales Service Provided: Overseas service center available
  • Warranty: 1-3 years
  • Brand Name: XINGLASS
  • Machine Type: Glass Tempering Furnace
  • Condition: New
  • Weight: Depends on Size
  • Dimension(L*W*H): Depends on Size
  • Power(W): Depends on Size
  • Voltage: To be decided by the customer
  • Model Number: QX-GTH
  • Production Capacity: To be decided by the customer
  • Glass Size: To be decided by the customer
  • Glass Thickness: 2.8-19mm
  • After-sale Service: 24/7 technical support, onsite service, maintenance service
  • Control System: QX-Smart 4.0



Temper all glass types with excellent quality

New technology to temper super-thin/thick glass

High heat-resistance insulation materials save 25% more energy

Intelligent heating control algorithms

New air convection technology

Optimized quenching process design reduces most defects

Customized design reaches highest performance

Flexible heating chamber design, single, double or multi-chamber configuration

Common and special applications

QX-smart digital control system

Xinglass Glass Tempering Furnace for Flat and Curved Glass Horizontal Glass Tempering Machine

Brief introduction of working principle and structure

this machine is composed of Loading Section, Heating Section, Quenching Section, and Unloading Section. this machine can produce common flat glass, pattern glass, sand-blast glass and opaque glass, concavo-convex glass, reflecting glass and hard filmed, low-E glass.

Inside the furnace heating section, our new air convection technology uses special nozzles designed in USA. the new air convection system is equipped with force convection device to make the glass have excellent consistency and stability during the heating period. the high temperature air convection and even distribution of temperature are guaranteed. and the convection can be adjusted in a wide range and easily controlled. Every group of temperature controllers has protection for temperature exceeding. the furnaces have ceramic rollers that are excellent in linearity, roundness and heating deformation. Glass is almost 0% distorted during heating period.

the quenching section is composed of high-pressure blower, blades, quenching and drive system. the blades in the quenching section make the cooling-air blow evenly on and below the glass surface. the distance between the blades and glass is adjustable to reach the best glass quality. Glass product is nearly pure flat, no spot, and no curve. Its optical characteristic is close to that of the original glass.

All the products meet the standards of GB/T9656-1998, GB/T9963-1998 and tempering standard of JIS R 3206. Our machines have Safety-first multi-protection systems, and is user-friendly. the characteristic is high production efficiency, excellent quality, and low energy consumption.
