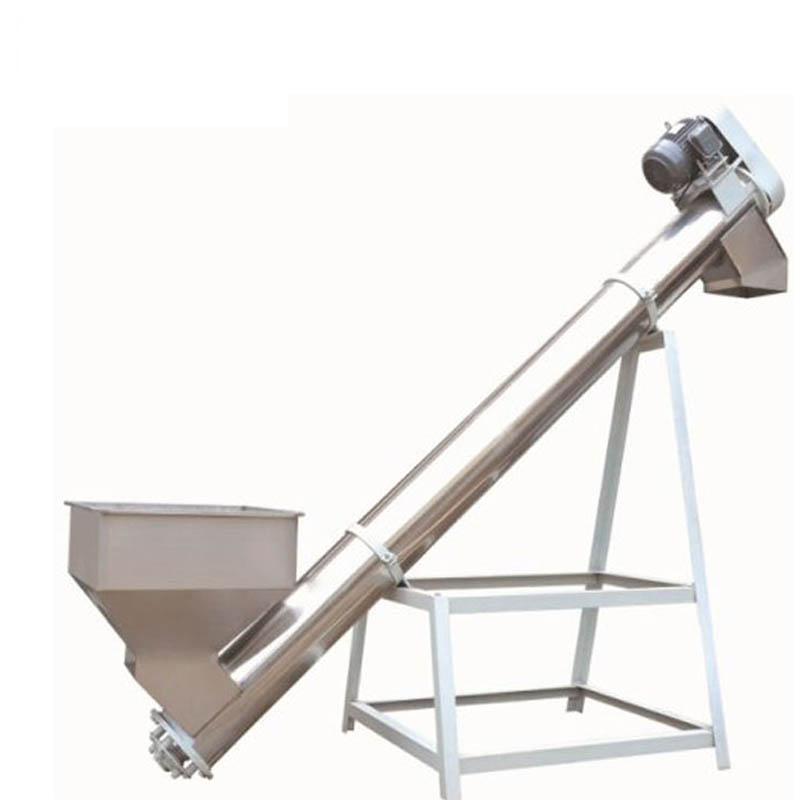

Starch Auger Vibrating Screw Conveyor with Hopper
| FOB Price: | 1700.00 - 4000.00 USD/Set |
|---|---|
| Supply Ability: | 20 Set(s) per Month |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
Quick Details
- Brand Name: SANYUANTANG
- Structure: Conveyor System
- Material: Stainless Steel
- Type: Screw Conveyor
- Condition: New
- After-sales Service Provided: No overseas service provided
- Certification: CE,ISO
- Dimension(L*W*H): According different types
- Power(W): 0.4-22kw
- Voltage: 220V/380V/415V/450V
- Model Number: SYZ-820
- After-sales Service: Free spare parts, Online support, Video technical support
- Feature: Large Capacity
- Frequency: 50/60Hz
- Weight: According to different model
- Material: Stainless steel
- Capacity: 10Kg-10Tons/hour
- Customized: Acceptable
Specifications

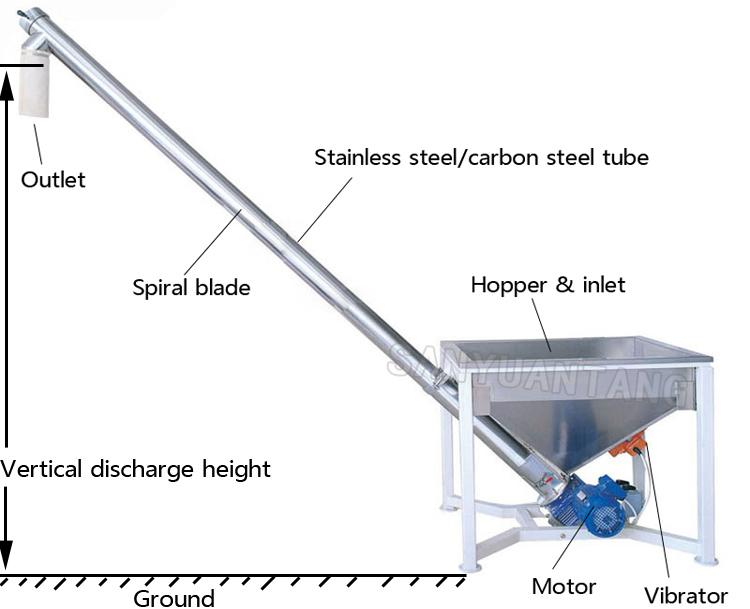

Starch Auger Vibrating Screw Conveyor with Hopper
the screw conveyor can convey many different materials, like dry powder,such as coffee powder, wheat flour, condiment and it also fits for some small batches. Combining with the packaging machine, we can present you situation tracing with the above material. It can also be used separately. the whole machine are made of stainless steel (also can be made by carbon steel) of 304 except for the motor.
Main performance
Spiral conveyer is continuous conveying equipment using screw rotation to move the material. It used to convey flour, grain, cement, chemical fertilizer, lime-ash, sand, pebble, coal powder etc. Spiral conveyer can't convey easy metamorphous, high stickiness and easy blocking materials
Spiral conveyer can fix up level or dip conveying form. (dip angle: GX<20°,LS<15°) If needing to change the convey orientation, you should make special orders. the working environment temperature usually is -20°~ 80°C
the working environment temperature usually is -20°~ 40°C.the conveying materials temperature usually is -20°~ 200°C
LS series spiral conveyer fits to fix up in level or small dip angle form, the dip angel is suitable not exceeding 20°.
If you have any special requirement, we can make the special design according to the site.
Application
Main technical parameter
| Model |
Screw diameter (mm) |
Screw pitch (mm) |
Rotational speed of screw (r/min) |
Convey measure (m3/h) |
Motor power (kw) |
Max dip angle (O ) |
| LS-100 |
100 |
100 |
140 |
2.2 |
2.2~18.5 |
≤20 |
| LS-125 |
125 |
125 |
125 |
4.0 |
2.2~18.5 |
≤20 |
| LS-160 |
160 |
160 |
112 |
8 |
2.2~18.5 |
≤20 |
| LS-200 |
200 |
200 |
100 |
11 |
2.2~18.5 |
≤20 |
| LS-250 |
250 |
250 |
90 |
22 |
2.2~18.5 |
≤20 |
| LS-315 |
315 |
315 |
80 |
34 |
2.2~18.5 |
≤20 |
| LS-400 |
400 |
355 |
71 |
64 |
2.2~18.5 |
≤20 |
| LS-500 |
500 |
400 |
63 |
95 |
2.2~18.5 |
≤20 |
| LS-630 |
630 |
450 |
50 |
150 |
2.2~18.5 |
≤20 |
| LS-800 |
800 |
500 |
40 |
210 |
2.2~18.5 |
≤20 |
Screw conveyer operation and maintenance
Spiral conveyer conveys powder, granules and small massive material as general application. All kinds' bearings work in dust, so screw conveyor reasonable operation and maintenance is very important in this working case. Screw conveyor operation and maintenance requirements as follows:
1. Spiral conveyor should start with non-loaded. It starts with no material in machine, then adding material.
2. Increase adding material speed gradually up to fixed conveying capacity and evenly adding material when adding material at first. or else the material easy to blocking and actuating device overload leading to the whole machine damage.
3. in order to guarantee the machine starting with non-loaded requirement, the spiral conveyer should stop adding material before shut down.
4. the conveying material can't mix tough large material avoiding the machine stuck leading to damage.
5. Examine each part the screw conveyer working condition in use, notice the fastening parts loosen or not. If the parts loosen, we should tightening screw to make it fasten.
6. Pay special attention to the spiral tube and screw in connection shaft loosen or not. If it happens, we should stop and correct.
7. the cover can't take down in revolving in case leading to the accident.
8. the machine appears abnormality in revolving; we should examine and eliminate not forcing to revolve.
9. the machine moving parts should add lubricate oil.

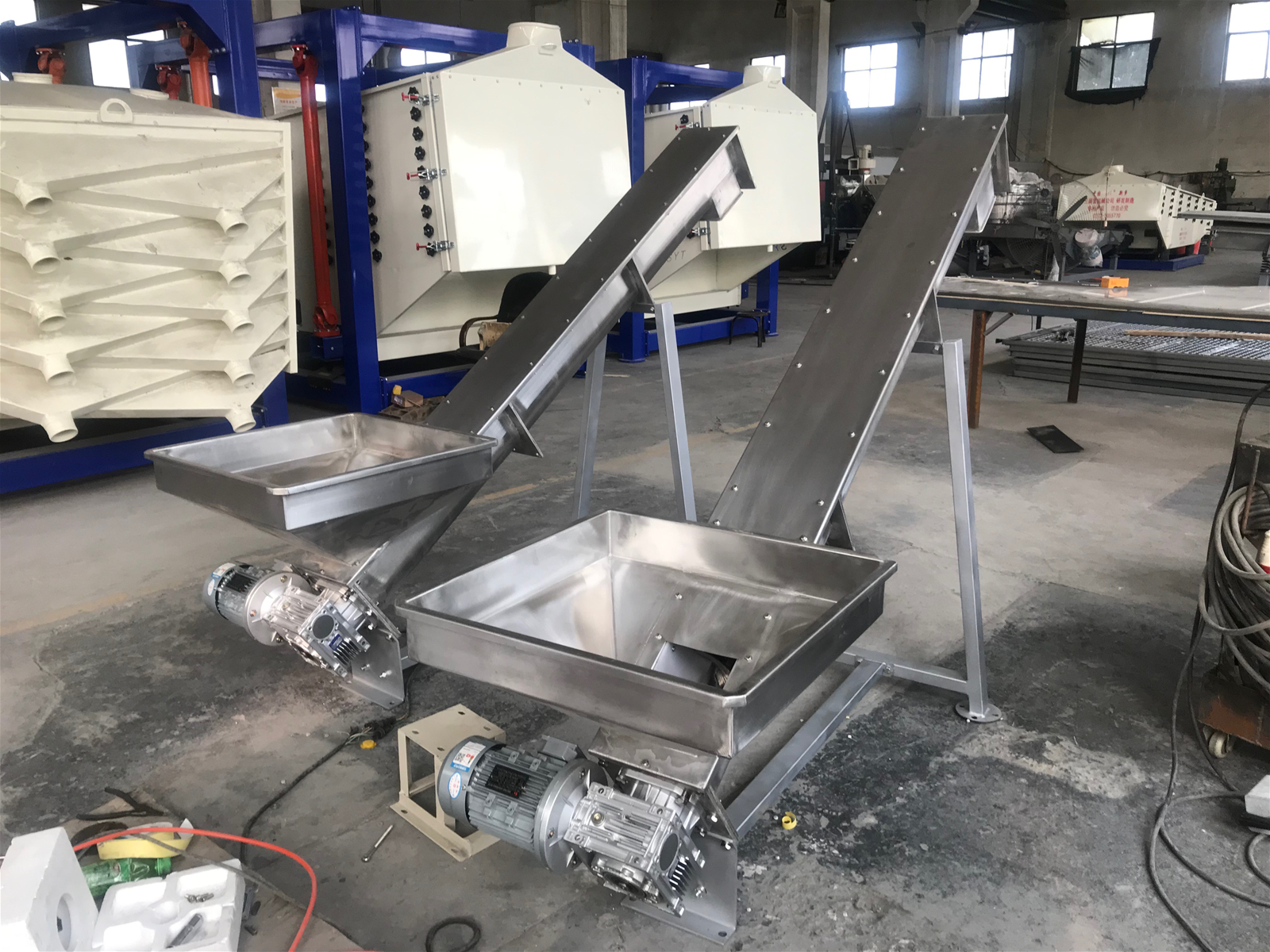

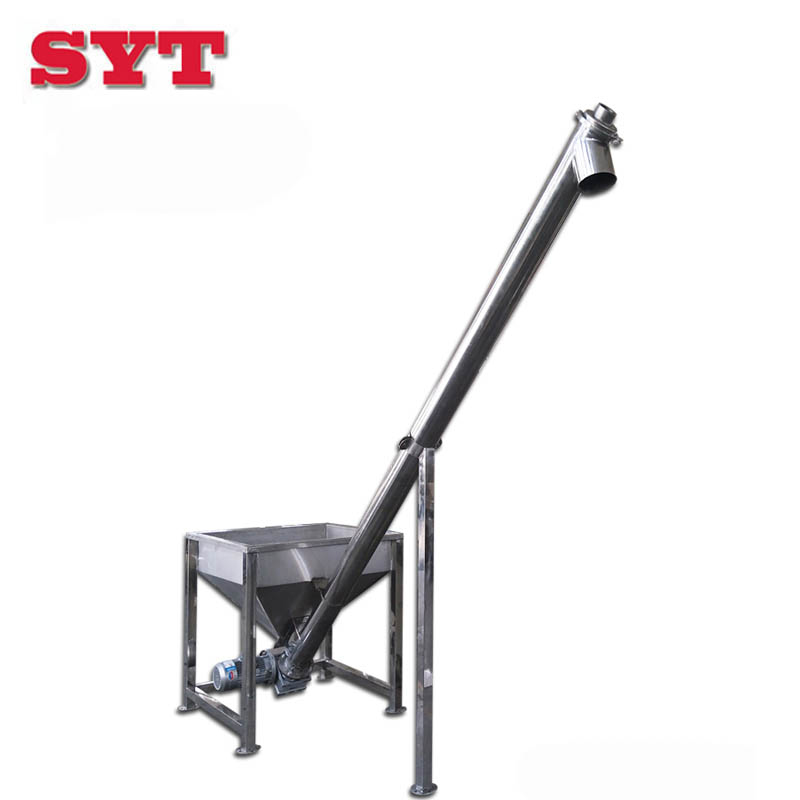

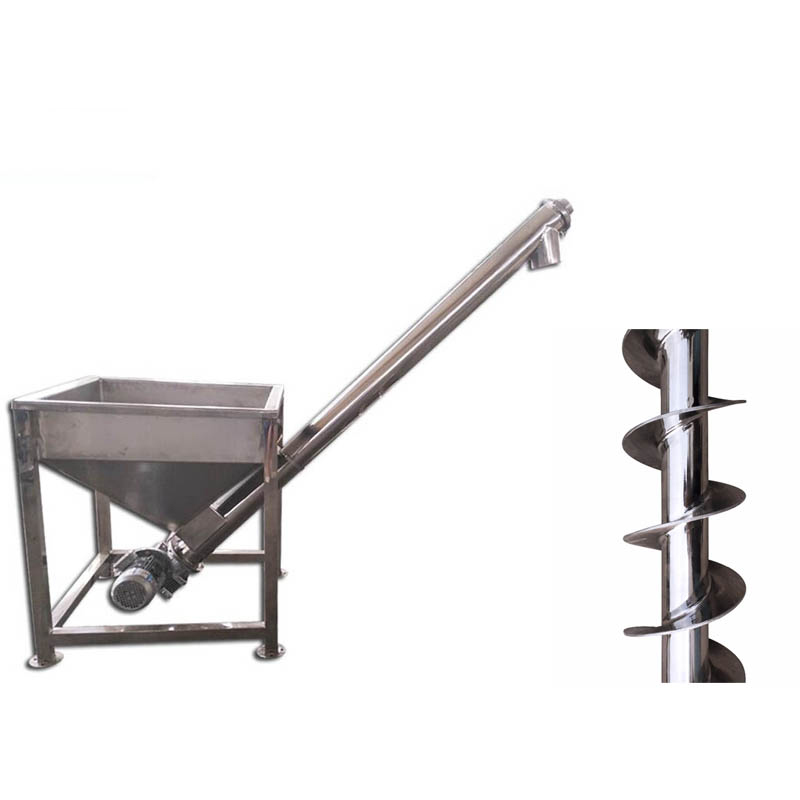

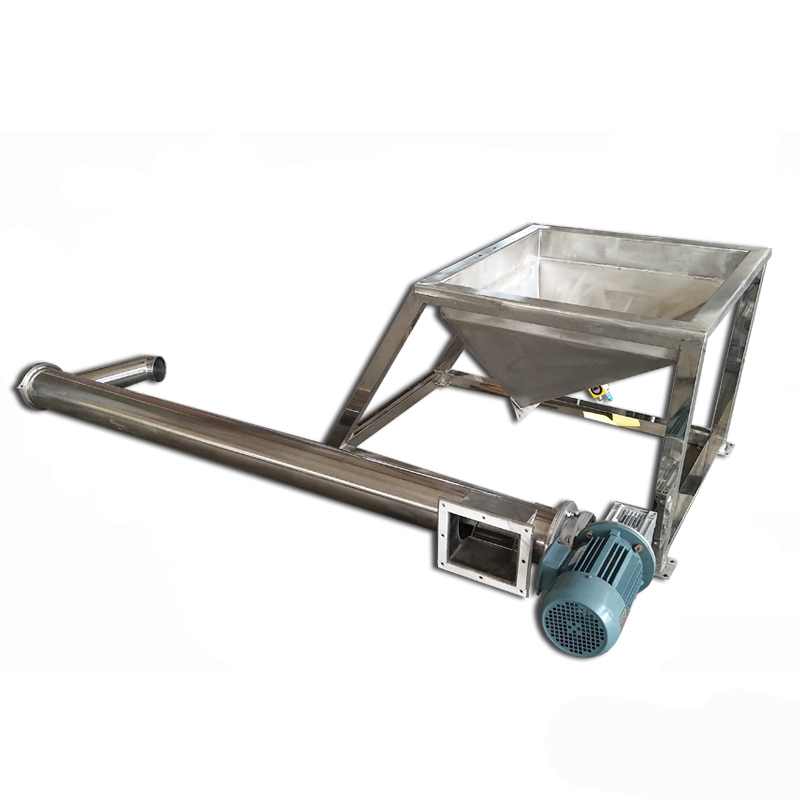

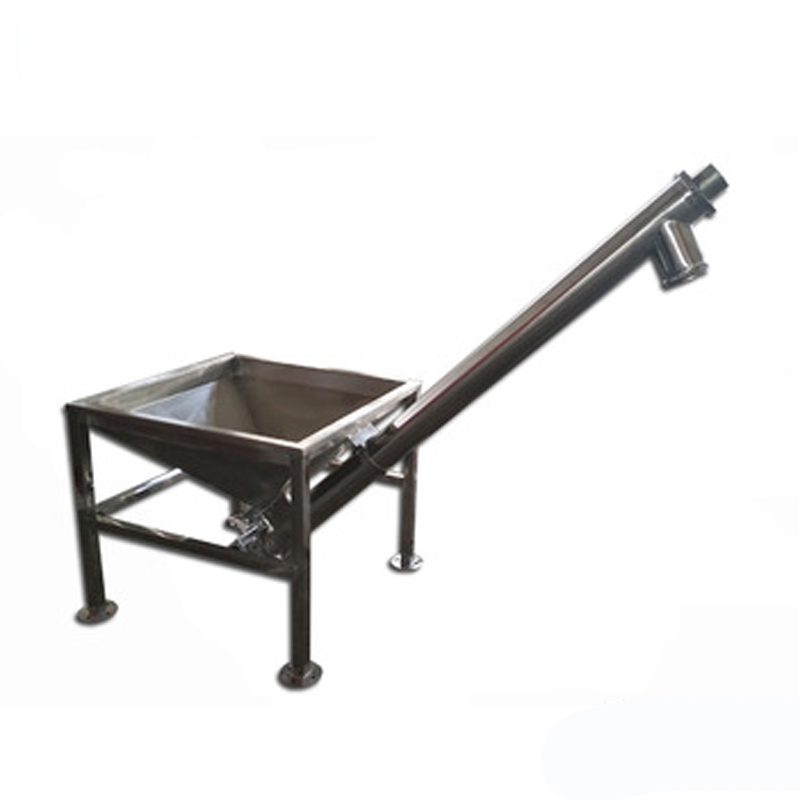

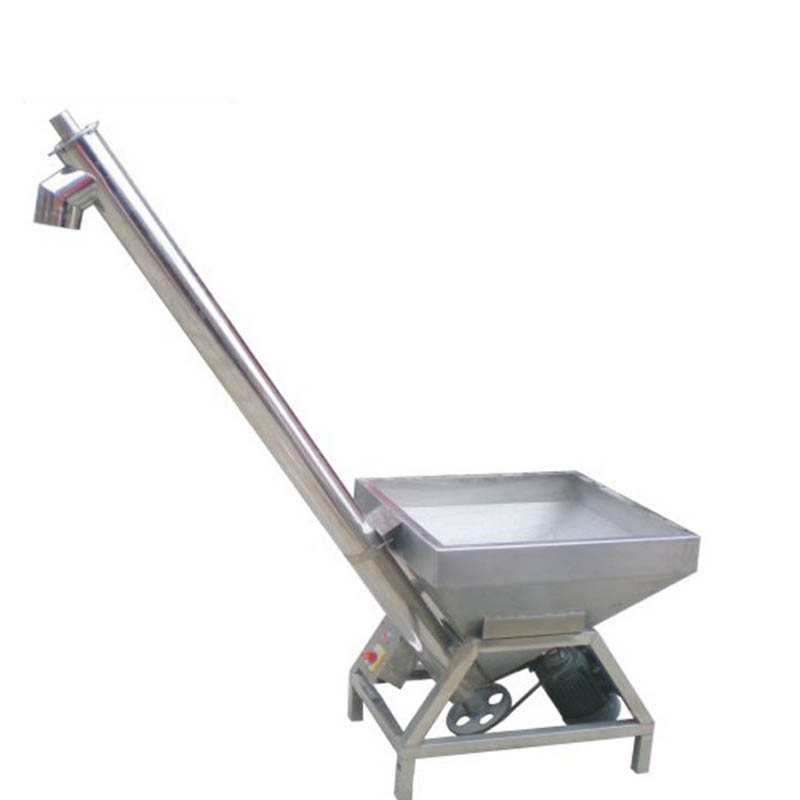

Product Show
Our Services
All produts purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free.
A, Before sending the machine, we will test and adjust, so you can use directly when you get it.
B, Operation video & instruction will be sent to clients, to help them use the machines better.
Additionally, our company provides technical support and fittings for life. after-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.
A, Any problems occur while using, professional advice will be offered.
B, All kinds of frequently used parts are supplied all the year round.
C, 24 hours hot line 0086-18236103447(Tel)
