Shandong Walson Electronic Technology Co., Ltd.
China Manufacturer with main products: Fire Thermal Imaging Camera |
Dome Thermal Camera Dome Thermal Camera
| FOB Price: | 500.00 - 100000.00 USD/Acre |
|---|---|
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
Quick Details
- Brand Name: /
- Weight: /
- Color: /
- Size: /
- Material: /
Specifications

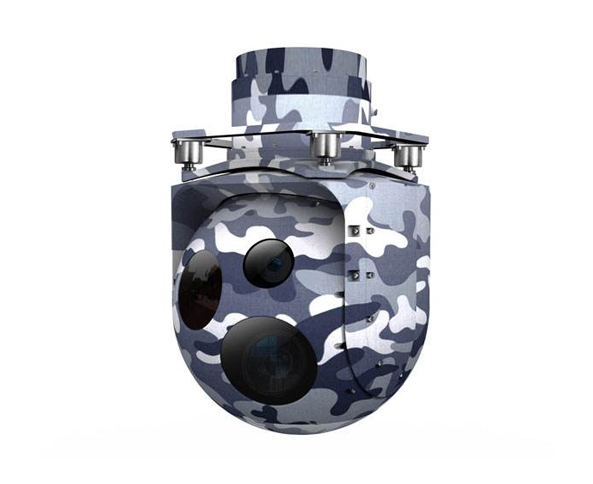

Dome Thermal Camera
WLS-DDTE of thermal dome camera can be attached to the drone, which integrates the self-stabilized PTZ, high resolution thermal camera lens and wireless image transmission. with the multi-rotor UAV, it can complete stable and clear video acquisition and data transmission tasks all day long.
the thermal camera lens is fixed on the high-precision three-axis self-stabilized pan tilt. The self-stabilized pan-tilt ensures that the pose of the thermal image lens always faces the set direction and keeps the image stable in vibration. through the high-definition low delay image transmission module, the high-definition thermographic image collected by the thermal camera lens can be transmitted to the command centre through a wireless data link. The front end of the camera supports a memory card with a maximum 4K resolution, which has the advantages of low power consumption, fast autofocusing, stable and clear image, etc.
Parameters of Dome IR Thermal Camera
WLS-DTE Specification | |||
Category |
Title |
WLS-DDTE6025F-8013 |
WLS-DDTE6025F-2180 |
Thermal |
Lens |
25mm | |
|
Resolution |
640*512 | |
|
NETD |
50mk(20mk optional) | |
|
Sensor |
Α-Si sensor/814μm | |
|
Temp Measure |
-20~800° (or OEM) | |
Visible |
Surface |
1/2.3'' CMOS |
1/2.8'' CMOS |
|
Resolution |
3840 x 2160 |
1920 x 1080 |
|
Min. Illumination |
0.1Lux (Color) |
0.005Lux (Color) |
|
Encoding |
H.265/H.264/MPEG4/MIPEG | |
|
Lens |
3.85~13.4mm |
6~180mm (210mm optional) |
|
Aperture |
Support | |
|
Digital Zoom |
4X | |
Housing |
Material |
Integral aluminum alloy housing | |
|
Protection Level |
IP66 | |
Interface |
Network |
RJ45. 10/100 Base-T adaptive (integrated video output and RS485 control) | |
|
Protocol |
TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP | |
|
Power |
12~25V | |
Environment Parameter |
Working Temp |
- 25°C ~+60°C (- 40° C Optional) | |
|
Storage Temp |
-45°C ~+70°C | |
|
Humidity |
<90% | |
|
Others |
Seismic resistance: 0.2g; Impact resistance: 15g | |
Pan/Tilt |
Angle |
Pan: 0 - 300°;Tilt: -70°+100° | |
|
Speed |
Pan: 0.01120°/S,Tilt: 0.01180°/S | |
|
Others |
Accuracy: ±0.008° | |
|
Demission |
96*79*120mm |
175*100*162mm |
Others |
Weight |
0.8kg | |
|
Power Consumption |
8.4W | |
Details of Dome IR Thermal Camera
3-Axis gimbal stabilizer
Easy to operate, support pointing zoom, one key return to middle, mouse or touch screen control
Supporting the overlay of GPS information into videos, subtitle files, snapshots
Full range of support for quick disassembly, easy replacement
High precision, ±0.008° control accuracy, leading the industry. the maximum Focal Length and fast flight motion still maintain the stability of the picture
Support intelligent target tracking
Open SDK to facilitate third-party client integration
Optional Temperature Measurement Function
Shandong Walson Electronic Technology Co., Ltd. Is a professional. We provide Thermal Imaging Camera, Night Vision Telescope,, dome infrared camera, dome IR camera, and so on. Want to know more? Please contact us.
