EOC 2EOC1 EPON ONU EOC Master

Overview

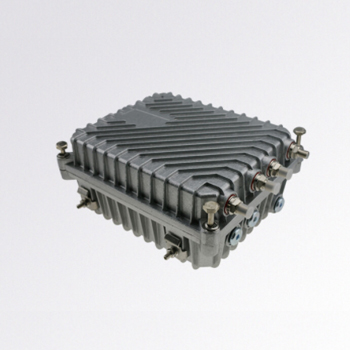

the AM321-7102-A is an Outdoor Ethernet over Coax (EoC) Master launched by Antek and used in passive optial network (xPON)+EoC bidirectional network restructuring solutions (namely, mutual opening between telecom and broadcasting industries).

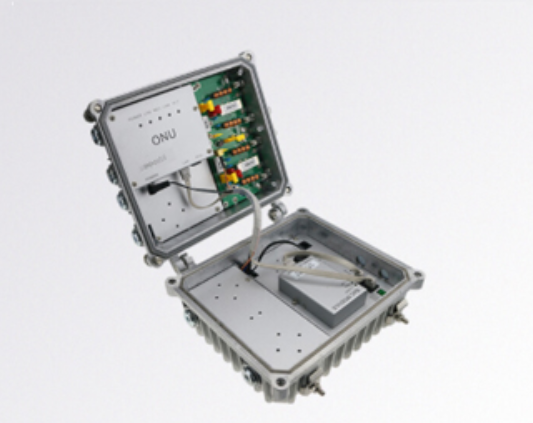

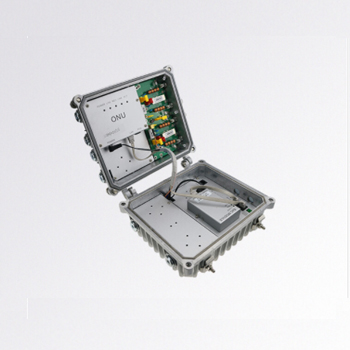

the AM321-7102-A Eoc Master Modem has bulit in one EoC Module which is uses the mainstream low-frequency HomePlug AV modulation technology. It can support a maximum of 128 users. Integrating the functions of optical network unit (ONU), EoC Master Module, and mixer, the AM321-7102-A can support a bandwidth of 1000 Mbit/s and support 2 TV in and 2 Cable out. by providing a bidirectional transmission path for broadcast and television services, the AM321-7102-A Eoc Master Modem increases the access bandwidth of the broadcast and television services and provides quality Internet access, voice, IPTV, VoIP, and video monitoring services, meeting operators' requirements for deploying multiple services.

AM321-7102-A Eoc Master Modem has built in network management module, which support remote network management can enable you to log in AM321-7102-A with WEB/SNMP/TELNET. and you can use it for centralized management on the connected EoC terminals such as QoS setting, encryption setting, statistical and status information inquiry and software upgrade.

Specification

Item	Parameter
RF Parameters
Output Power	108±5dBuv
Receive sensibility	45dBuv
Frequency	7.5-65MHz
Output impedance	75Ω
Return loss:	>15dB
Service Interface
Cable Interface	2*CABLE(MIX)INPUT, metric F connector
CATV Interface	2 *TV(RF signal) OUTPUT, metric F connector
Data Interface	2 GE
PON Featuers
PON Standard	IEEE802.3ah(EPON)
Sensitivity	-27dBm
Launch power	Min: 0dBm Max: +5dBm
Input Power Overload	-8dBm
Transmission	Upsteam/Downsteam:1.25/2.5Gbps(GPON) or Upsteam/Downsteam: 1.25/1.25Gbps(EPON)
EOC Featuers
EoC Standard	HomePlug AV or IEEE P1901(Draft)
Frequency	7.5 MHz to 65 MHz
Modulation modes	OFDM,1024/256/64/16QAM, QPSK, and BPSK
Working Mode	CSMA/CA and TDMA
Modulation Mode	OFDM
Transmission	MAC layer rate: 700Mbit/s
Transmission Distance	Not more than 1000 meter
Software
Network Management	WEB, CLI, SNMP, NMS,
Software Features	VLAN,QoS,IGMP Snooping, Bandwidth Control, Broadcast storm limitation
Environmental conditions
Storage	Temperature -40 to 70°C, rel. Humidity 1090% (non-condensing)
Operation	Temperature -25 to 65°C, rel. Humidity 1090% (non-condensing)
Power Supply and Consumption
Power Adaptor	220VAC/60VAC
Consumption	≤10W
Physical specifications
Dimensions	240220110mm(LWH)
Weight	2.5KG

Network Application

Typical Solution: EOC
